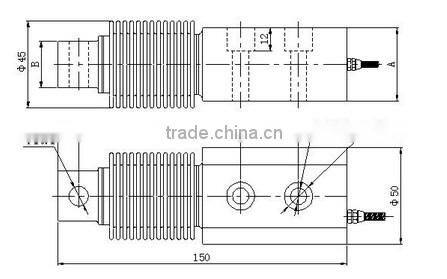

Unit: mm
Cap/Size | A | B |
125-250kg | 38 | 24 |
500kg | 42 | 30 |
Product Characteristics:
Single point sensor GS332 series load cell are available in the capacities 10~500kg. OIML approved load cells for trade approved applications. We can produce the load cell with analog load cells, digital load cells, wireless load cells, stainless steel load cells, alloy steel load cell, high temperature load cell, anti-lighting load cell. They offer alloy steel or total stainless steel construction, below hermetic sealing, oil-proof, waterproof and anti-corrosion making them suitable for all kinds of environment. Single point with bellow, easy installation, flexible application and they are suitable for belt scale, hopper scale and other electronic weighing devices,mechanical bench scales, body scales, electronic cattle scales.
Technical Parameter:
Rated Load: | 125/250/500kg |
Sensitivity: | (2.0±0.1%) m V/V |
Combined Error: | ±0.02% F.S |
Creep Error(30min): | ±0.03% F.S |
Zero Balance: | ±1% F.S |
Temp. Effect On Zero: | ±0.02% F.S/10°C |
Temp. Effect On Span: | ±0.02% F.S/10°C |
Input Resistance: | 385±5Ω |
Output Resistance: | 351±2Ω |
Insulation Resistance: | ≥5000MΩ |
Operating Temp. Range: | -10~+70°C |
Maximum Safe Over Load: | 150%F.S |
Ultimate Over Load:: | 300%F.S |
Recommend Excitation Vol.: | 10~12V DC |
Maximum Excitation Vol.: | 15V DC |
Sealing Class: | IP68 |
Element Material: | Alloy Steel, Stainless Steel |
Cable: | Length=L:3m |
Citation: | GB/T7551-2008/ OIML R60 |
Mode Of Connection: | Red(Input+),Black(Input-),Green(Output+),White(Output-) |
FAQ:
1. What is the MOQ?
If we don’t have it in stock, the MOQ is 5 pcs
If we have it in stock, we can ship you even 1 pc as sample.
2. What is lead time?
If we have it in stock, we can ship it to you within about 7 working days.
If we don’t have it in stock, the lead time will be 30-45 days.
3. What is the payment terms?
T/T, Western Union, is acceptable.
4. What is the express delivery?
DHL, Fedex, TNT ,EMS, UPS etc.
We will choose the safe and cheapest way for you to reduce your cost.
Economic shipping way: by sea, by air transport
If you place mass order with us, the shipping way of by sea or by air transport will be ideal choice.
5. What is the quality guarantee?
Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it; if we can’t repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost to you.
6. Is there any after-sale service?
After you receive our product, if you have any questions or need any assistance, we can provide you the after-sale service by e-mail,skype,trade manager,telephone
7. How to contact us?
Tel: +86-574-86902686
Skype: emmyliu91
Trade manager: cn1510111149
E-mail: salesone @goldshinechina.com
