Product Characteristics:

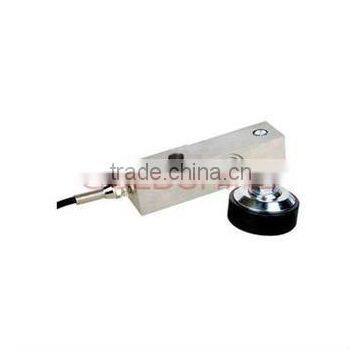

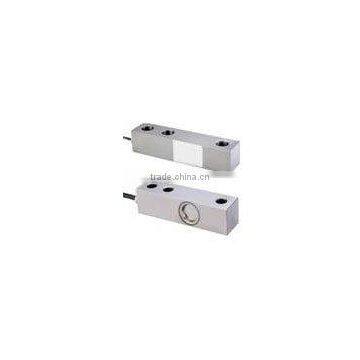

Single-ended Shear Beam GS303 series is single shear beam. One end of the load cell is fixed, another loaded and rocker pressure head transfers force. Easy installation, we can produce with analog load cells, digital load cells, wireless load cells, stainless steel load cells, alloy steel load cell, low profile scale beam load cells. and the load cell designed for multiple use in low profile platform scales & in tank, floor scale, bin and hopper weighing systems and automobile test facilities other electronic weighing devices. Suitable for hygienic applications like Food, Diary & Pharmaceutical industries and corrosive chemical, digital platform balances, digital weight balance,digital scale balance,digital precision balance,digital counting balance,digital electronic balance,digital body balance, platform balances.
Technical Parameter:
| Rated Load: | 0.1/0.15/0.2/0.25/0.3/0.5/0.75/1.5/2.5/3/5/7.5/10t |
Sensitivity: | (2.0±0.1%) m V/V, (3.0±0.1%) m V/V |
Combined Error: | ±0.02% F.S |
Creep Error30min: | ±0.02% F.S |
Zero Balance: | ±1% F.S |
Temp. Effect On Zero: | ±0.02% F.S/10 |
Temp. Effect On Span: | ±0.02% F.S/10 |
Input Resistance: | 385±5Ω |
Output Resistance: | 352±2Ω |
Insulation Resistance: | ≥5000MΩ |
Operating Temp. Range: | -30~+70 |
Maximum Safe Over Load: | 150%F.S |
Ultimate Over Load: | 250%F.S |
Recommend Excitation: | 10~12V DC |
Maximum Excitation: | 15V DC |
Sealing Class: | IP67/IP68 |
Element Material: | A:Alloy Steel, SS:Stainless Steel |
Cable: | Length=L:3m |
Citation: | GB/T7551-2008/ OIML R60 |
Mode Of Connection: | Red(Input+),Black(Input-),Green(Output+),White(Output-) |
Packing:
