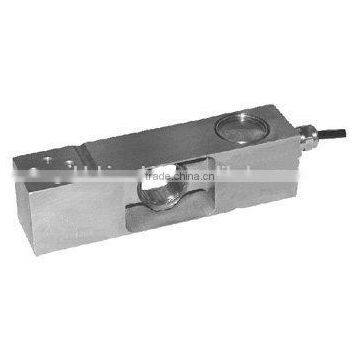

With high precision single point load cell
USD $35 - $460
/ Piece
20 Pieces(Min.Order)
- 36000 Piece / Pieces per Month
- ningbo or shanghai port
- Credit Card
You May Like
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | GOLDSHINE | Model Number: | GS301 single point load cell |
Usage: | Pressure Sensor | Theory: | Resistance Sensor | Output: | Digital Sensor |
Product Description
1.GS301-D Low profile
2.Easy installation
3.Suitable for multiform environments
4.Suitable for electronic scale
Digital Load Cell Specifications
Item | Unit | ||
Rated load | 50/100/200/300kg | ||
Min Load Cell Verification Interval (Vmin): | % of Emax | 0.0200 | |
Sensitivity(Cn): | Digit(d) | 1000000 | |
Sensitivity Tolerance: | % | ≤0.0100 | |
Temperature Effect On Sensitivity (Tkc): Temperature Effect On Zero Signal (Tk0): | % of Cn/10K | ≤0.0120 ≤0.0145 | |
Hysteresis Error (Dhy): Non-Linearity(Dlin): Creep(Dcr)30min: | % of Cn | ≤0.0120 ≤0.0080 ≤0.0080 | |
Reference Excitation Voltage (Uref): Normal Range Of Excitation Voltage(Bu): | V(DC) | 8 7~15 | |
Current Consumption: | mA | 35 | |
A/D Resolution: | Bit | 24(at 1 Hz) | |
Measuring Rate: | /sec | 80 | |
Filter Mode 0: Filter Mode 1: | HZ | 3~0.05 8~3 | |
Communication Mode: | RS485/2-wire | ||
Baud Rate: | Baud | 9600 | |
Number Of Bus Addresses: | Max | 64 | |
Nominal Temperature Range (Bt): Service Temperature Range(Btu): Storage Temperature Range(Bu): | °C[°F] | -10~+40 -20~+70 -50~+80 | |
Limit Load (El): | % of Emax | 150 | |
Breaking Load(Ed): | % of Emax | 300 | |
Protection Class: | IP67/68 | ||
Material : | Alloy Steel/ Stainless Steel |
Packing :

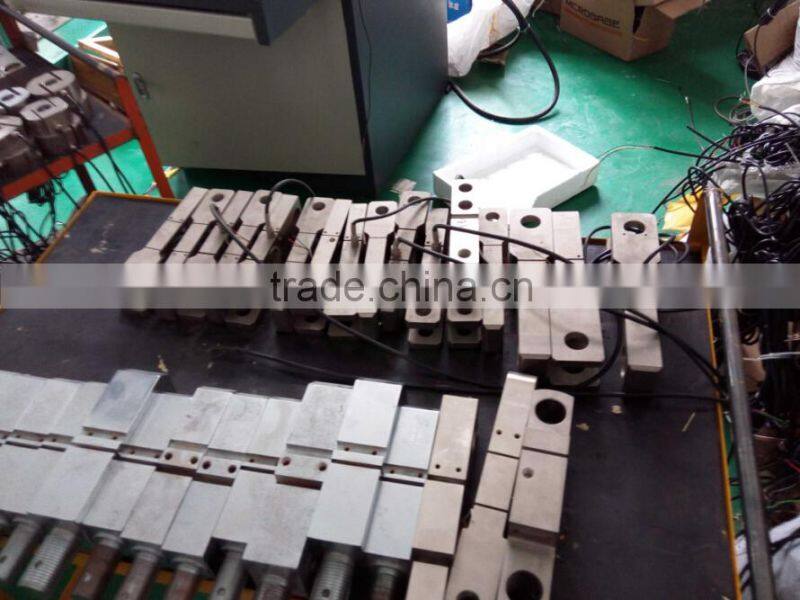

Picturer of Factory:
