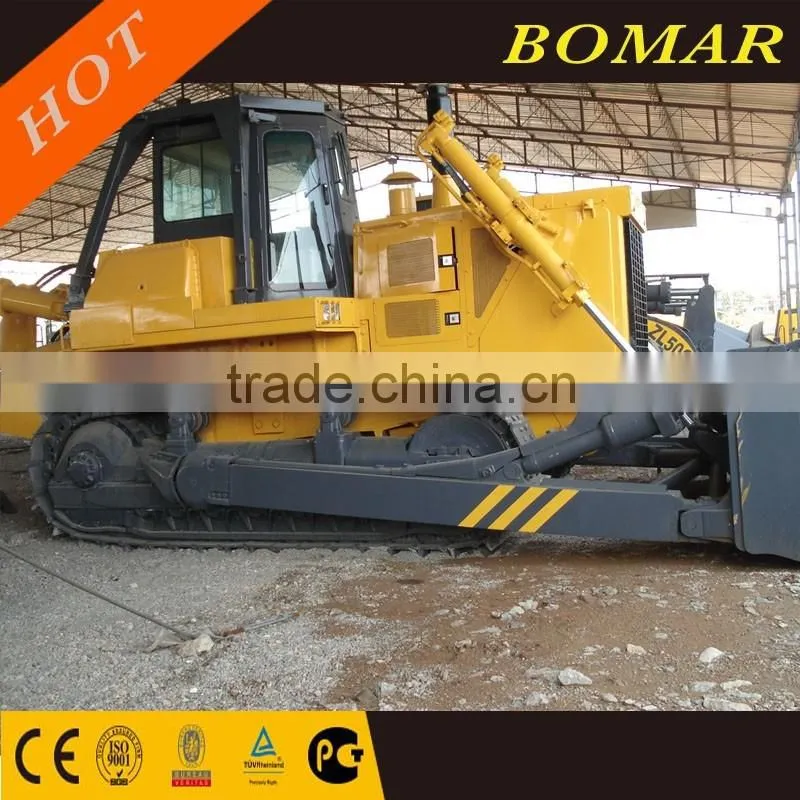

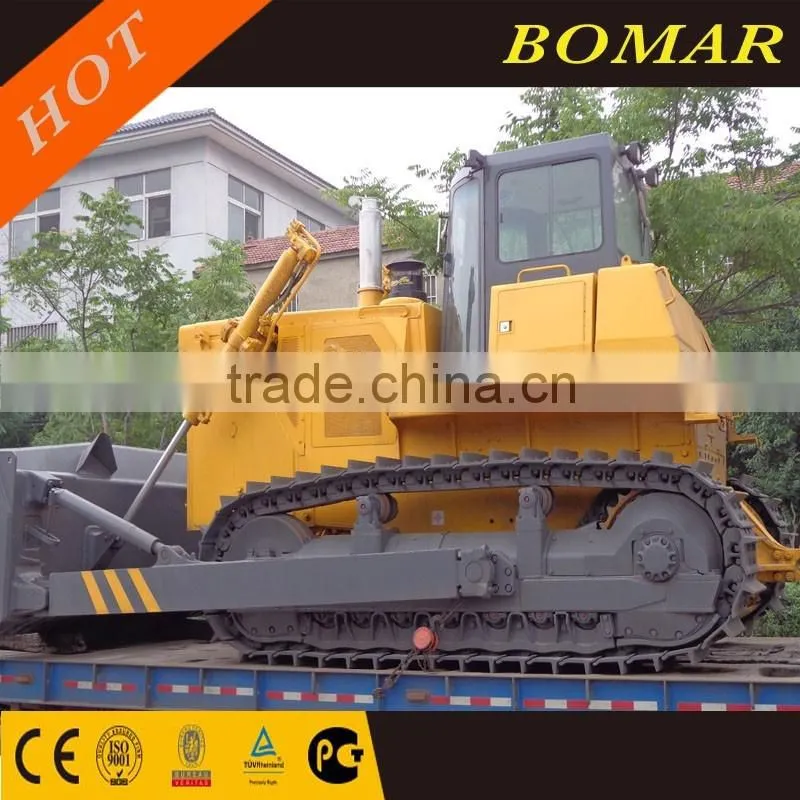

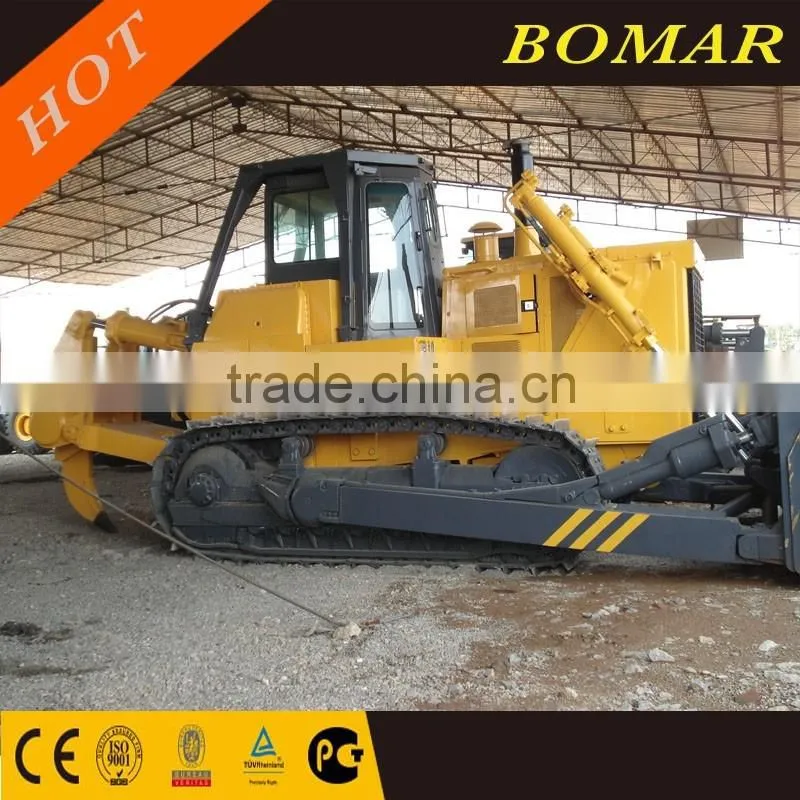

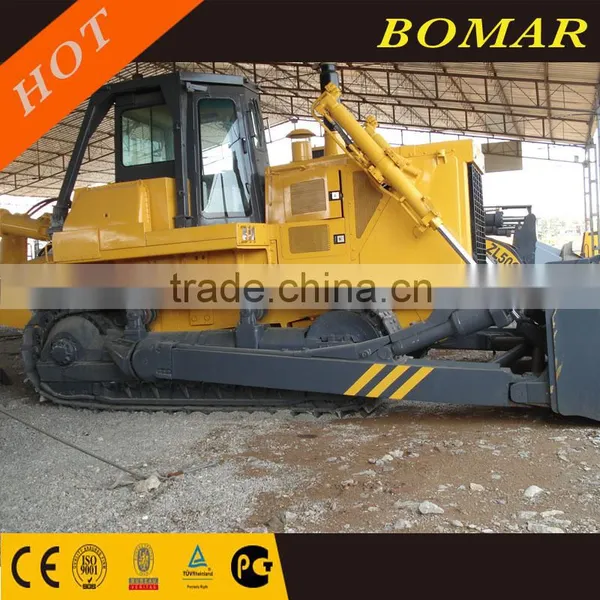

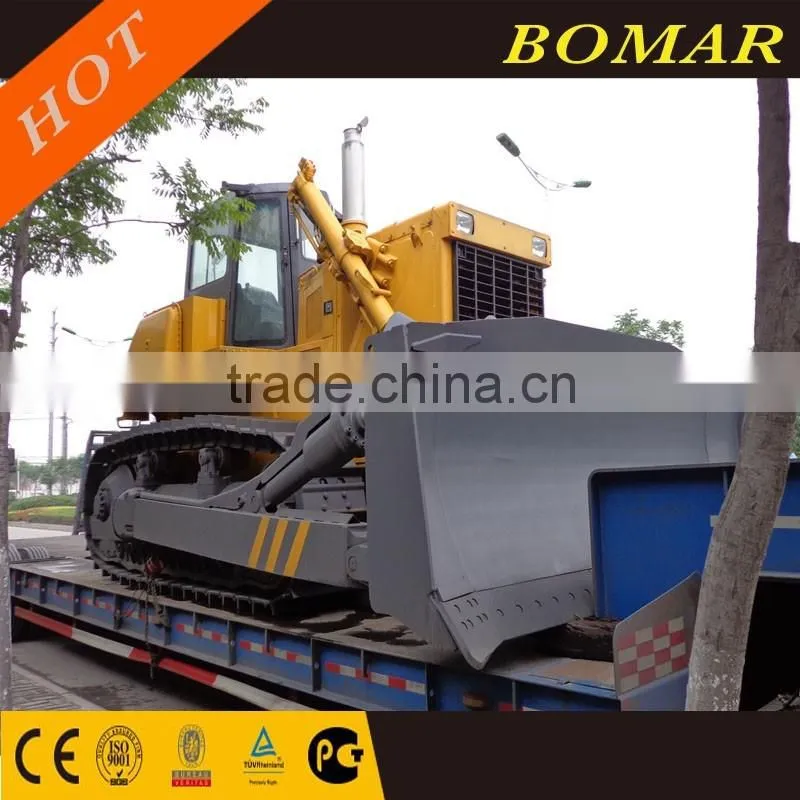

XCMG Crawler Bulldozer TY320, Similar as D8

Name: XCMG Crawler Bulldozer TY320, Similar as D8
Brand: XCMG
SKU: 128729895

US$ 200,000 - 230,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

XCMG

Model Number:

TY320

Shanghai Bomar Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name XCMG

Model Number TY320

Condition New

Moving Type Crawler Bulldozer

Machine Weight 23800kg

Dimension(Long * Breadth * High) 6880*4130*3725mm

After-sales Service Provided Overseas third-party support available

Product Description

XCMG Brand New Bulldozer TY320, Similar as D8

Engine
Model	CUMMINS NTA855-C360
Type	Turbocharging, inter-cooloing, vertical type
Cylinder quty.-bore×stroke	6-139.7×152.4mm
Piston displacement	14L
Rated power	235kW
Max.torque	1000N.m/1400rpm
Rated speed	2000rpm
Fuel consumption	242g/kW.h
Start motor	24V,11kW
Generator	28V,35A
Battery	24V(12 ×2)-195Ah×2
Drive System
Hydraulic torque converter	3 components, single-stage, single phase
Power shift transmission	Planetary gear, multi-disc clutch, hydraulic integrated forced lubrication
Main drive	Spiral bevel gear, splash lubrication
Steering clutch	Wet, multi-disc, spring-pressed, hydraulic release
Final drive	2-stage spur gear reduction, splash lubrication
Travel System
Suspension type	Semi-rigid, equalizing beam float type
Drive wheel	Insert block type, drive gear
Amt.of carrier wheel(each side)	2
Amt.of supporting wheel(each side)	7
Working Devices
Blade type	Straight tilt type/semi-U type
Width×Height	4130×1590/4030×1720 mm
Blade capacity	10.4/11.7
Scarifier type	3-grouser, 1-grouser
Max.blade tilt range	1000mm
Crawler
Type	Assembly type/ single-grouser
Grouser height	80mm
Amt.of track shoe	41×2
Track shoe width	560mm
Track center distance	228.6mm
	2140mm
Ground contact length	3150mm
