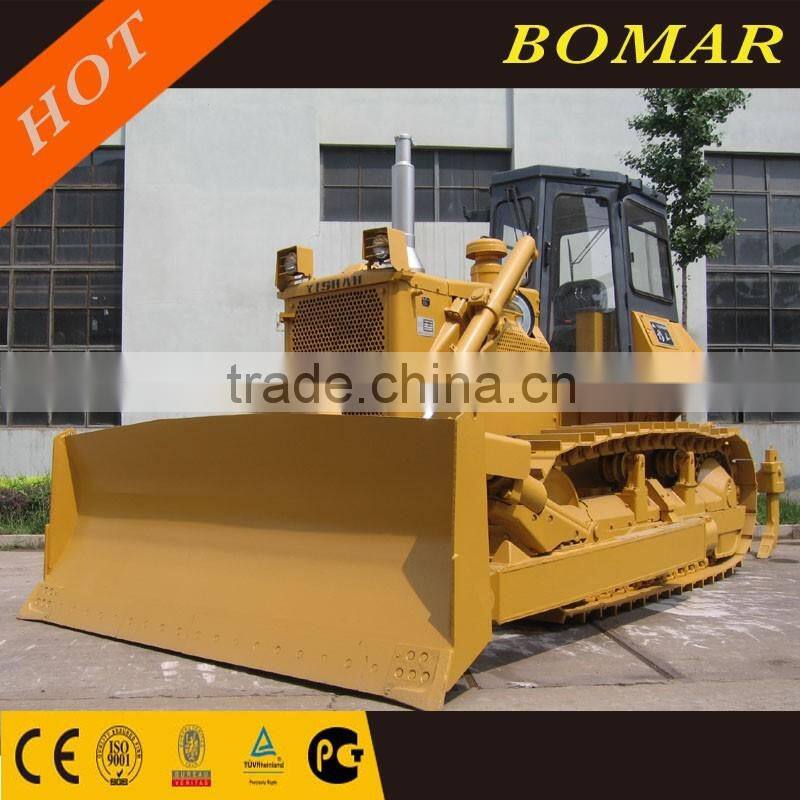

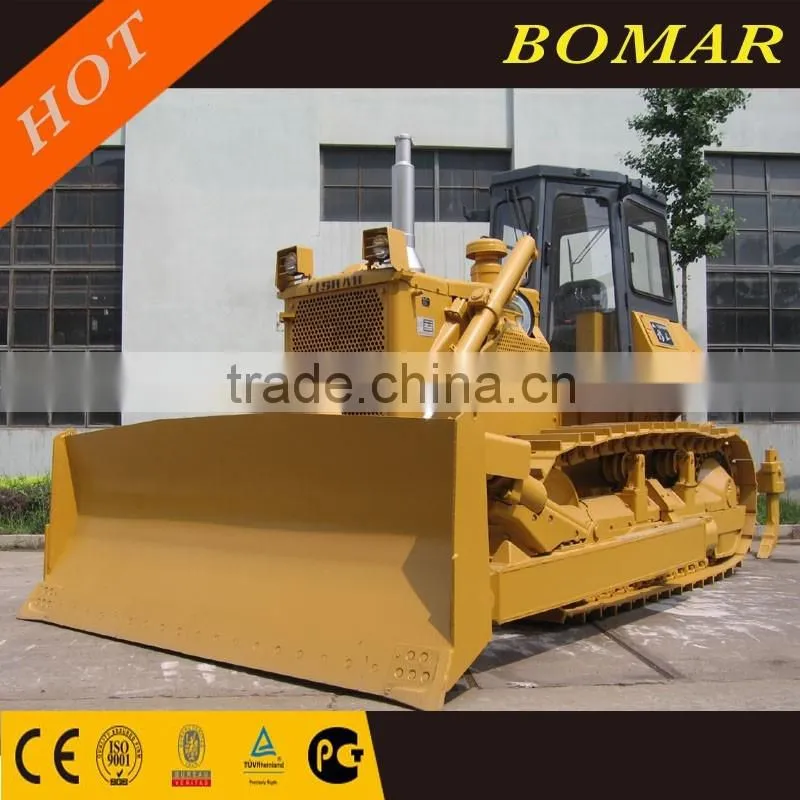

Yishan Crawler Bulldzoer TY180, Similar as Bulldozer D6
US$ 50,000 - 80,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Tianjin, China
Brand Name:
YISHAN
Model Number:
TY180
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Yishan Bulldozer TY320, Similar as Bulldozer D8US$ 150,000 - 160,000MOQ: 1 Set -
Yishan Crawler Bulldozer TY220, Similar as Bulldozer D7US$ 100,000 - 150,000MOQ: 1 Set
-
HBXG Crawler Bulldozer SD7, Similar as Bulldozer D7NegotiableMOQ: 1 Set
-
XCMG Crawler Bulldozer TY320, Similar as D8US$ 200,000 - 230,000MOQ: 1 Set
-
Yishan Small Crawler Bulldozer TY160, Similar as Bulldozer D6NegotiableMOQ: 1 Set
Place of Origin
Tianjin, China
Brand Name
YISHAN
Model Number
TY180
Condition
New
Moving Type
Crawler Bulldozer
Machine Weight
23800kg
Dimension(Long * Breadth * High)
5677x3500x3402mm
After-sales Service Provided
Overseas third-party support available
Product Description
Yishan Crawler Bulldzoer TY180, Similar as Bulldozer D6
| TY180 BULLDOZER | |
| AWARDED THE ISO9001:2000 SYSTEM CERTIFICATE | |
| SPECIFICATION | WORK EQUIPMENT |
| Specification/Blade type Straight-tilt Angle U-Blade | Blade type Straight-tilt Angle U-Blade |
| Operating Weight (kg) 18800 19000 19200 | Blade Capacity (m3) 4.5 4.3 8.6 |
| Operating Weight (kg) 400 400 400 | Blade Width X Height(mm) 3416×1149/3970×1050/4064×1386 |
| Min.Turning Radius (m) 3.3 3.3 3.3 | Max.Lift (mm) 1124 1250 1250 |
| Ground Pressure (MPa) 0.069 0.070 0.071 | Max.Depth (mm) 584 545 545 |
| Track Gauge (mm) 1880 1880 1880 | Max.tilt Adjustment (mm) ≥860 ≥400 ≥400 |
| Max. Pulling Force (KN) 147.2 147.2 147.2 | Pitch Adjustment ( ° ) 55 55 55 |
| Grade Ability (°) 30 30 30 | Capability(m3/H)(Theoretical value 40m) 297.4 /297.4/297.4 |
| TRAVEL SPEED | Weight Of Blade (kg) 2450 2550 2650 |
| 1st 2nd 3rd | COOLANT AND LUBRICANT CAPACITY |
| Forward (km) 0~3.9 0~6.8 0~10.9 | Fuel Tank Capacity (L).....................................................................320 |
| Reverse (km) 0~5.0 0~8.6 0~13.7 | Hydraulic Tank Capacity (L).............................................................108 |
| ENGINE | Engine oil Capacity (L).......................................................................45 |
| Model & Type Cummins NT855-C280S10/ Shangchai SC11CB200G2B1/ Weichai WD10G200E25, 6-cylinder, in-line, vertical. water-cooled, 4-stroke-cycle, turbo-charged, over valve directs injection | Torque Converter ,Transmission, Bevel Gear., Steering Clutch Capacity (L)...................................................................................122 |
| Rated Revolution (rpm) ........................................................... 1850 | Final Drive Capacity (L) .................................................33(each side) |
| Flywheel Horsepower (HP) ........................................................... 180 | RIPPER(OPTIONAL) |
| Cummins:6-139.7X 152.4 | 3-Shank Ripper: |
| Cylinder Number-BoreX Stroke (mm) Shangchai:6-120.6X 152.4 | Max.Digging Depth (mm) ............................................................... 572 |
| Weichai:6-126X 130 | Max.Lift (mm) .................................................................................. 702 |
| Piston Displacement (L) ..... Cummins:14 Shangchai:10.5 Weichai:9.73 | Shank Of Distance (mm) .................................................................950 |
|
Min. Fuel Consumption (g/kW.h) Cummins:212 Shangchai:220 Weichai:218 |
Weight (kg) ...................................................................................... 1700 |
|
Max.Torque (Nm/rpm) Cummins:877/1250 Shangchai:870/1200 Weichai: 920/1100 |
OVERALL DIMENSIONS |
| Starting Method........................................Starting motor 24V 7.5kW | Straight-tilt Blade Dimensions |
| POWER TRANSMISSION SYSTEM | Note: Materials and specifications are subject to change without notice. |
| Torque Converter ............................ 3-element,1-stage,1-phase | |
| Transmission Planetary gearing, hand-manipulated, hydraulic shift, forced lubrication,3 forward and 3 reverse speeds | |
| Bevel Gear.........Spiral bevel gear, splash lubrication, single-stage speed reduction | |
| Steering Clutch................................. Wet, multi-disc, spring loaded, hydraulically separated, hydraulic control | |
| Steering Brake ...... Wet, band type, pedal hydraulic booster, with parking brakes | |
| Final Drive .............Double reduction of spur gear, splash lubrication | |
| HYDRAULIC SYSTEM | |
| Pump Type............................................ Gear pump 07441-67503 | |
| Working Pressure (MPa).................................................................13.7 | |
| System Discharge (L/min)…..........250(at revolution of 1850rpm) | |
| Working Cylinder type...........................Double-acting piston type | |
| Working Cylinder Lift Number-BoreXRodXStroke (mm).............. 2-110X65X1026 | |
| Working Cylinder Tilt BoreXRodXStroke (mm).........160X70X140 | |
| UNDERCARRIAGE SYSTEM | |
| Type ................ Swing type of sprayed beam, suspended structure of equalizer bar | |
| Carrier Rollers............................................................ 2(each side) | |
| Track Rollers......... 7/each side (4-single flange, 3-double flange) | |
| Track Type............................. Sealed, assembled single- grouser | |
| Number Of Track Shoes............................................... 39(each side) | |
| Width Of Track Shoes (mm) .......................................................... 510 | |
| Pitch (mm) .................................................................................... 203.2 | |
| Length Of Track 0n Ground (mm)...............................................2635 |
Packaging & Shipping
Bulk Vessel or Roll on/Off vessel
