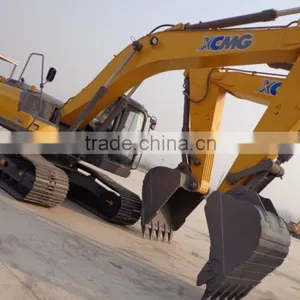

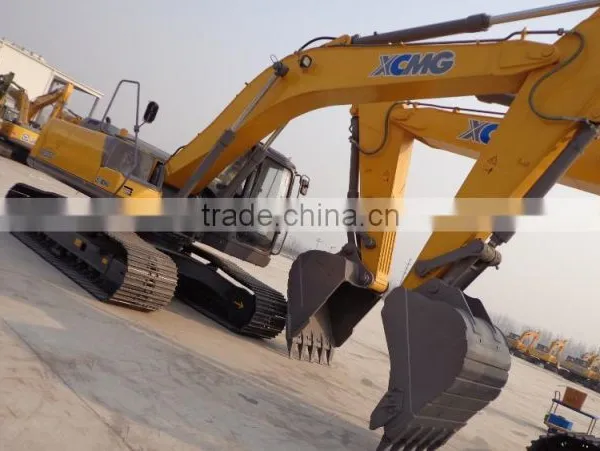

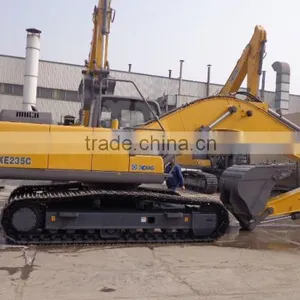

XCMG Crawler Excavator XE235C
Operating weight |
kg |
23500 |
|
Standard bucket capacity |
m³ |
0.9~1.1 |
|
performance |
Travel speed |
km/h |
5.5/3.5 |
Swing speed |
r/min |
12.1 |
|
Max. gradeability |
/ |
≤35 |
|
Ground pressure |
kPa |
51.7 |
|
Max.Bucket digging force |
kN |
163 |
|
Max.arm crowd force |
kN |
116 |
|
Max.traction force |
kN |
194.8 |
|
hydraulic system |
Main pump |
/ |
2 |
Rate flow of main pump |
L/min |
2×231 |
|
Max pressure of prime relief valve |
MPa |
31.5/34.3 |
|
Max pressure of travel system |
MPa |
34.3 |
|
Max pressure of swing system |
MPa |
23 |
|
Max pressure of pilot system |
MPa |
3.9 |
|
Oil capacity |
Fuel tank capacity |
L |
400 |
Hydraulic tank capacity |
L |
240 |
|
Engine lubrication |
L |
25 |
|
operating range |
A Max. digging height |
mm |
9595 |
B Max. dumping height |
mm |
6725 |
|
C Max. digging depth |
mm |
6960 |
|
D 8inch horizonal digging depth |
mm |
6750 |
|
E Max. vertical wall digging depth |
mm |
6090 |
|
F Max. digging reach |
mm |
10240 |
|
G Min. swing radius |
mm |
3850 |
|
We can also offer middle and large size.
Middle Model
XE135B, XE265C, XE215C, XE235C, XE215CLL, XE260CLL , XE150D, XE225CA,XE335C, XE370CA
Big Model
XE470C, XE490CK, XE700C, XE900C, XE470M,XE1300C
Mini Model
XE15, XE40, XE50C,XE65CA ,XE85C,XE60CA
