Specifications
1.Concrete machine2.Semiautomatic control
3.Automatic pallet & material feeding
4.ISO9001

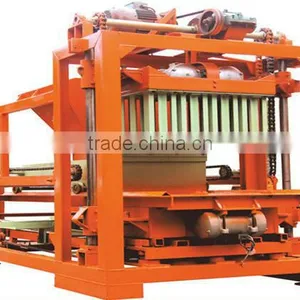

QTJ4-40 Precast concrete machine, Concrete machine

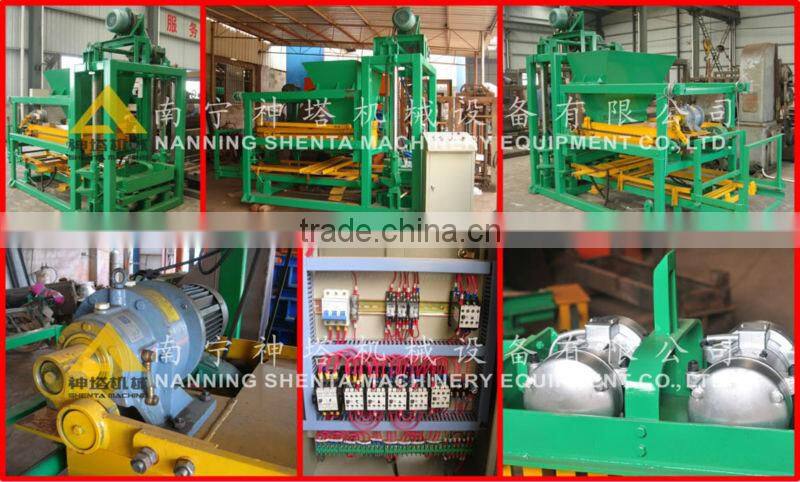

1. Detailed figure :
Equipment List:
1. QTJ4-40 Brick Making Machine 2. B500 Belft Conveyor 3. JX-350 Vertical Concrete Mixer 4. Wooden Pallet
2. Main Specification
| Outside Dimension (mm) | 3500x1530x2350 | Operation Cycle (s) | 40 |
| Main Machine Weight (t) | 2.8 | Vibration Frequency (rpm) | 4300 |
| Total Power Capacity (Kw) | 16.2 | Vibration Power (Kw) | 10 |
| Pallet Dimension (mm) | 880x460x65 | Brick Height (mm) | 60~200 |
3. Main Productivity
| Brick Size | Blocks/Cycle | Blocks/h | Blocks/8h | Blocks/Year |
| Hollow Brick (400X200X200mm) | 4 | 360 | 2,880 | 950,400 |
| Hollow Brick (400X200X150mm) | 5 | 450 | 3,600 | 1,188,000 |
| Hollow Brick (400X200X100mm) | 7 | 630 | 5,040 | 1,663,200 |
| Porous Brick (240X115X90mm) | 9 | 810 | 6,480 | 2,138,400 |
| Solid Brick (240X115X53mm) | 18 | 1,620 | 12,960 | 4,276,800 |
4.Main Description
QTJ4-40 is the semi-automatic brick making machine we design and fabricate to meet the market demand, it is all mechanical transmission, automatic pallet feeding and concrete material feeding to save manpower and reduce the labor intensity, has the advantage of compact structure, reliable operation, very low malfunction rate, and easy maintenance and transportation, utilize the mold vibration technology (total 06 units vibration motor) to form the excellent shape, dense frame and high compressive strength brick, with fewer cement consumption.
By changing different mold, the QTJ4-40 brick making machine can produce different wall brick, porous brick and cement solid brick, it can meet the brick requirement of all kinds of civil construction project, is the best solution of middle-small scale brick factory or mobile brick factory.
5. Brick Materials:
1. Cement-12%; 2. Fly Ash or Fine Stone Powder or Fine Sand-38%; 3. Crushed Stone (<15mm)-50%

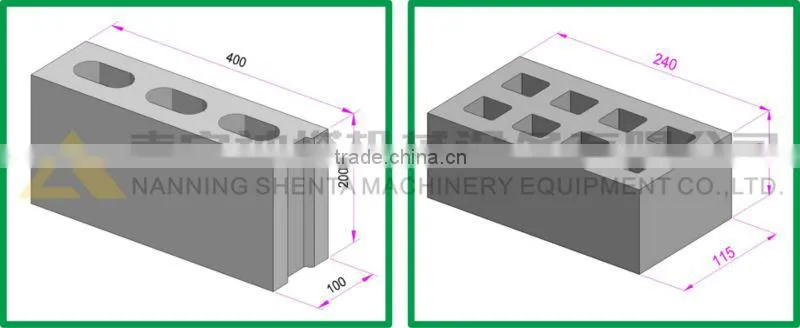

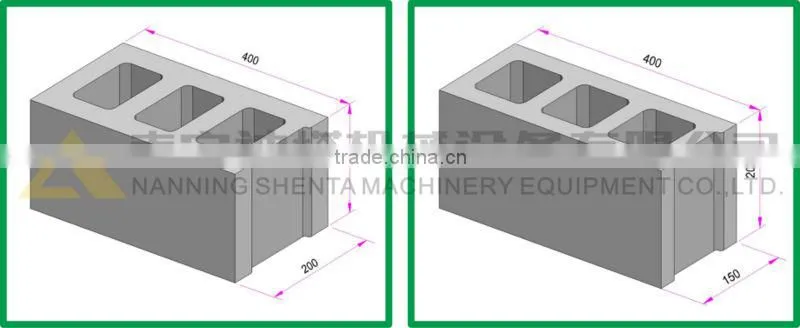

6. Brick Sample:
7. About SHENTA Machine:
Nanning SHENTA Machinery Equipment Co., Ltd, lies at the beautiful “Green City of China” – Guangxi Nanning, is one of the first group of the manufacturer specialized in research, development, fabrication of the concrete block machine, mixing machine and other construction material machine in China, pass the ISO 9001:2008 Certificate. We uphold the philosophy “advanced technology, nice craft, strict supervision and perfect service”, provide customer the excellent and reliable equipments for the new and eco-friendly construction material industry.
SHENTA Machine locate in the south of China, far from the frontier of Vietnam only 200km, is the closest Brick Machine Manufacture from ASEAN, with the advantageous geographical location and transportation, we build the solid foundation with the ASEAN country to develop the long-term and stable cooperation.
SHENTA Machine’s plant occupy 40,000m2 area, include 20,000m2 workshop, 210 workers team, 20 administrators and 15 technicians, produce the brick production lines and machine more than 500 units per annum, sell in domestic and export to South-east Asia, USA, Afric and Middle East region.
if you are interested our block making machine ,please contact Alisa!
