Specifications
1.Precast Concrete Wall Machine2.PLC automatic control
3.Low power consumption
4.Long working life
5.ISO/CE/BV

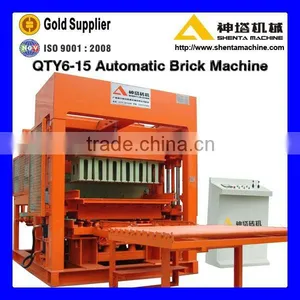

QTY6-15 Precast Concrete Wall panel Machine

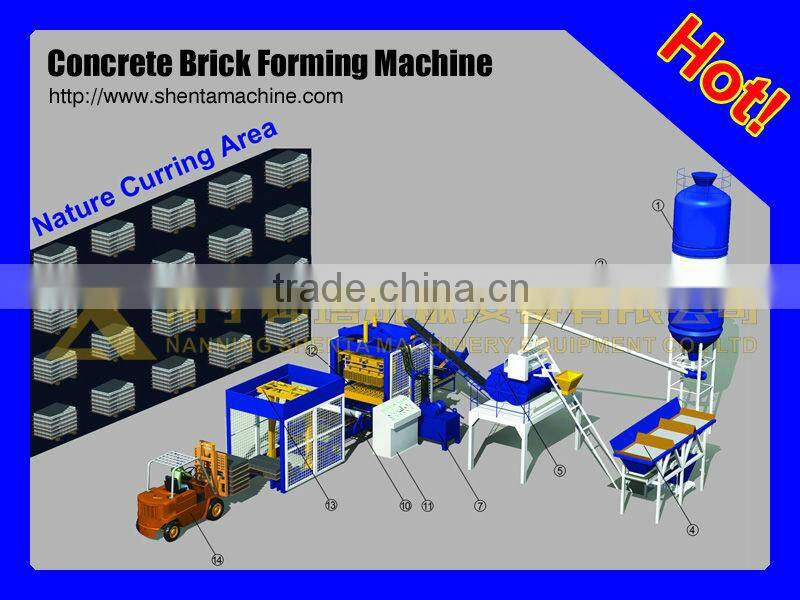

1.Simple production line
2.Characteristic and Technical Specification
Characteristic |
1. Adopt Taiwan import PLC controller, HMI operates and brick produce are full automatic, has the function of automatic reset, lack material and lack pallet alarm, the operations are more humanity, the electric parts are provided by well-known company to ensure the safety and stable performance, the malfunction rate is more lower.
|
||||
|
2. The main machine utilized the advanced pressure and vibration technology to form the block, the strength and density of brick is higher.
| |||||
|
3. The hydraulic system parts adopt high quality production import from Taiwan or Japan, the working life is longer.
| |||||
|
4. Swift speed arch breaking device can consumedly shorten the concrete material distributing time.
| |||||
|
5. The control system has the data setting device, the distributing time and vibration time is resettable to meet various material.
| |||||
|
6. Adopt the four guide pillar and super long-life wearable materials to ensure the high precision press of forming mould and press head.
| |||||
|
7. Multi-purpose and strong adaptability, change different mould can produce various wall brick, porous brick, color paver brick, grass brick and shielding-slope brick.
| |||||
|
8. Super strong welded profile steel frame structure provides the long term stable and reliable operation.
| |||||
|
Brick Machine Technical Specification | |||||
Outside Dimension (mm) |
3900x2100x2800 |
Operation Cycle (s) |
15~25 |
||
Main Machine Weight (Ton) |
8 |
Vibration Frequency (rpm) |
4300 |
||
Power Consumption (Kw) |
44 |
Vibration Force (Kn) |
65 |
||
Pallet Dimension (mm) |
1280x550x30 |
Vibration Power (kW) |
18 |
||
|
Theoretical Productivity | |||||
Brick Size |
Blocks/Mould |
Blocks/Hour |
Blocks/Shift |
Remark |
|
Hollow Brick (390x190x190mm) |
6 |
1,440 |
11,520 |
|
|
Porous Brick (240x115x90mm) |
18 |
4,320 |
34,560 |
|
|
Pavers Brick (200x100x60mm) |
20 |
4,800 |
38,400 |
|
|
Solid Brick (210x60x105mm) |
32 |
7,680 |
61,440 |
|
|
3.Technological Process

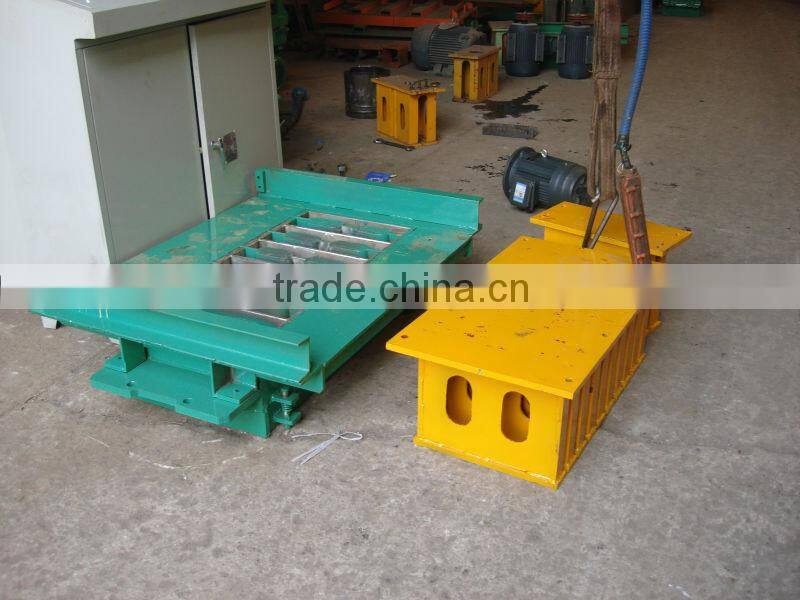

4.Brick Making Moulds

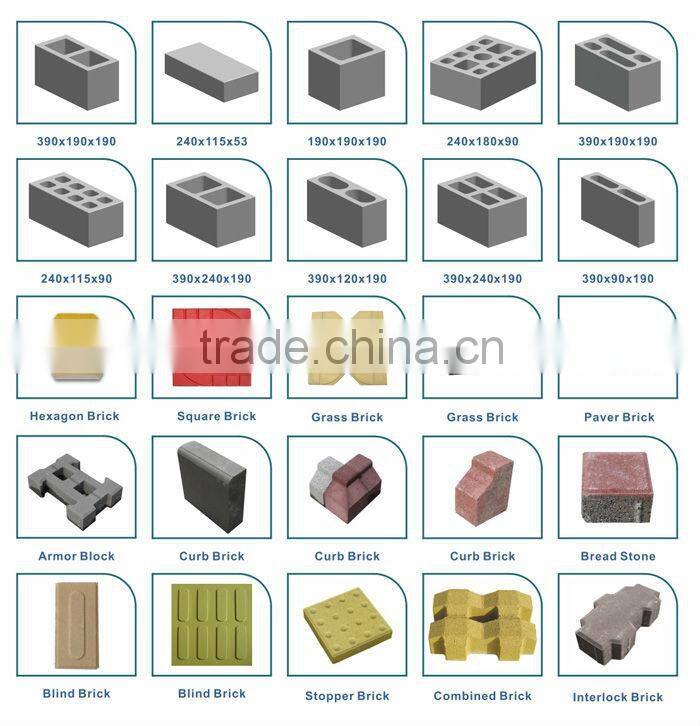

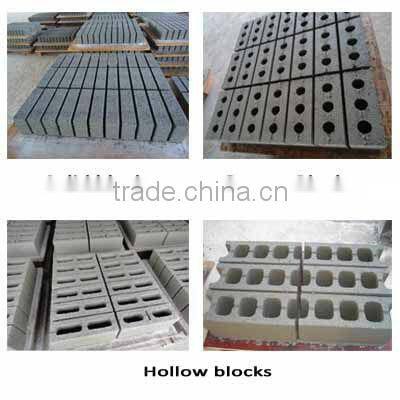

5.Brick Samples
6.Brick Production

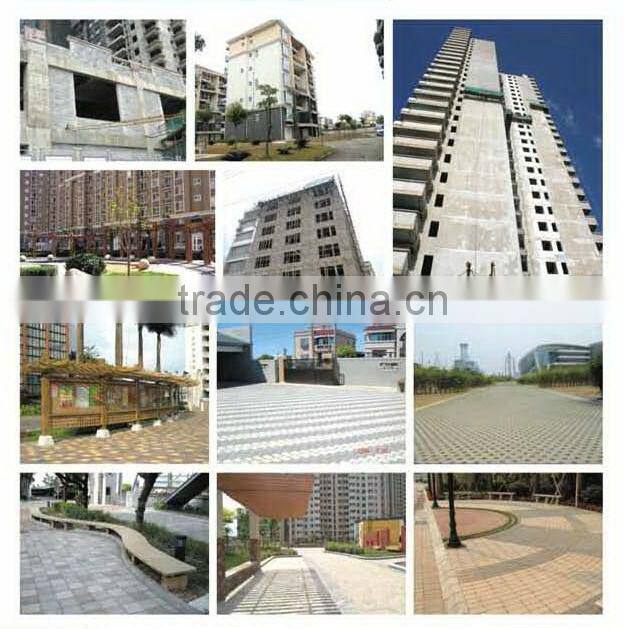

7.Application
8.Exhibition
9.Company View
if you are interested our block making machine ,please contact Alisa!
