QTY10-15 automatic solid block making machine,block machine industry

Seaworthy Packing

Specifications

1.block machine industry
2.Hydraulic Press, table vibration
3.100,000 pieces/8h
4.ISO 9001 Certificate

Concrete Brick Making Machine QTY10-15, Your best tools go to Success and Prosperity!



1.Characteristics :



1	Adopt Japanese Mitsubishi PLC controller, HMI operates and brick automatically output, automatically reset, lack material and lack plank alarm, easy and humanized operation. The electric parts are provided by well-known company to ensure the safety and stable running.
2	The main machine utilized the molding method of pressure and high frequency vibration to make the more airtight and solid block
3	The hydraulic system adopts Taiwan or Japan high quality components.
4	High speed arch breaking device can consumedly shorten the material distributing time.
5	The machine equipped with the data setting device, the distributing time and vibration time is able to be set and revised according to different brick material.
6	Adopt the four poles guidance and super long-life wearable materials to ensure the high precision action of mould and press head.
7	With multifunction feature to produce both the load-bearing brick and non-load-bearing brick, according to change the mould to produce different wall bricks, as well as produce multi-hole bricks and road pavers bricks.
8	Machine frame adopt super strong profile steel to weld to provide the stability and reliability intervening the long working life

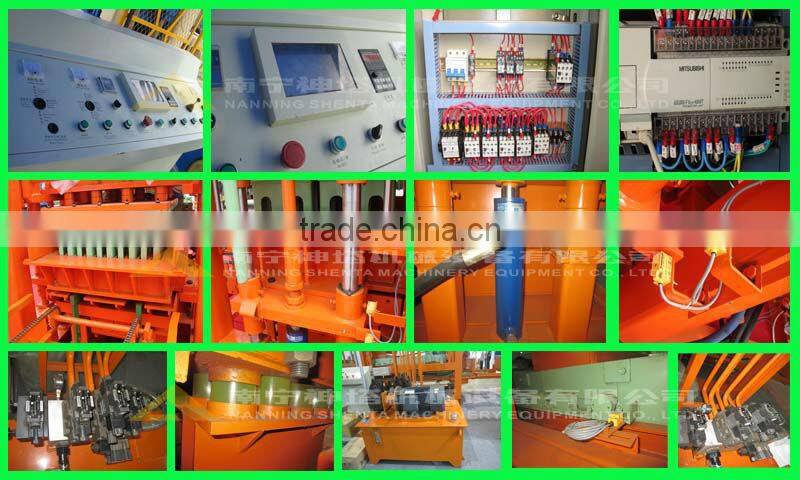

2.The Detail of Concrete Brick Making Machine QTY10-15







3. Hydraform Concrete Brick Making Machine Main Specification:





Outside Dimension (mm)	5200x2700x3100	Operation Cycle (s)	15~25
Main Machine Weight (Ton)	10	Vibration Frequency (rpm)	4300
Power Consumption (Kw)	50	Vibration Force (Kn)	120
Pallet Dimension (mm)	1100x950x25	Vibration Power (kW)	22
Operator quantity	5 people	Land required	6000M2





 4. Main Productivity:



Brick Size	Blocks/Mould	Blocks/Hour	Blocks/Shift	Remark
Hollow Brick (400x200x200mm)	10	1,440~2,400	11,500~19,200
Hollow Brick (400x150x200mm)	12	1,730~2,880	13,800~23,000
Hollow Brick (400x100x200mm)	18	2,600~4,320	20,700~34,500
Hollow Brick (390x190x190mm)	10	1,440~2,400	11,500~19,200
Porous Brick (240x115x90mm)	21	3,000~5,000	24,000~40,000

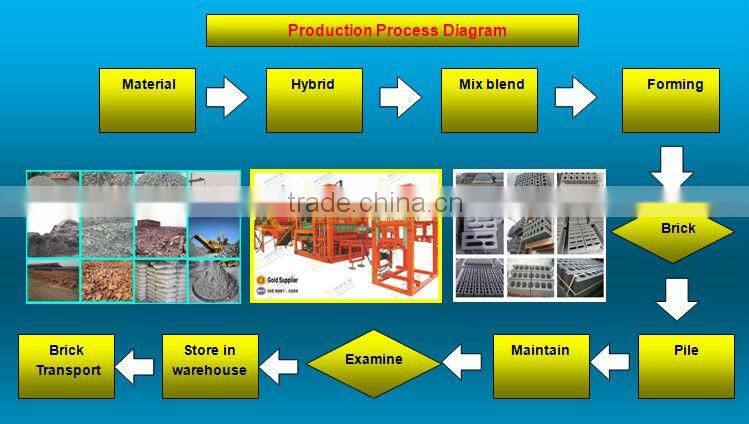

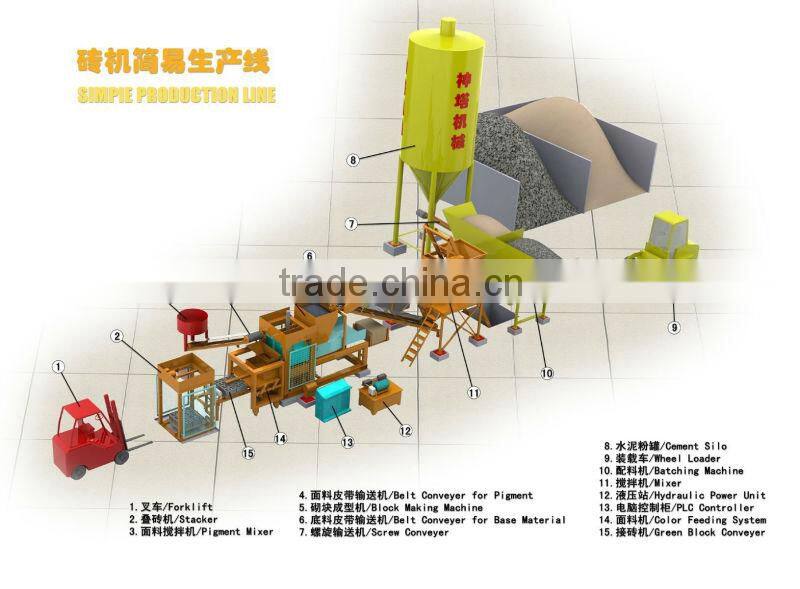

5.Production Line Layout and production Process Diagram:









6. Brick Raw Material

MU10.0 Strength Brick Material Rate:



1.Cement-12%; 2. Fine Stone Powder or Fine Sand-40%; 3. Crushed Stone (<8mm)-40%; 4. Fly Ash or Additive-8%





7. Brick Sample:





Shenta machine can produce: various types of concrete brick and block, cement brick and block, standard bricks,perforated bricks and paving bricks, solid/hollow/cellular masonry brick and block, paving stones with or without face mix, garden and landscaping products. slab, edger, kerbstone, grass blocks, solpe blocks, interlocking blocks. These products are of good quality, high compression strength and accurate dimension. Besides,more kinds can be produced such as paving bricks, color grassland bricks and curb bricks if the second raw materials feeding system is added to the line. Widely used in building, road paving, squares, gardens, landscaping. city constructions etc.



8.Our Customer's Brick Factory:





9.Exhibition of Shentamachine







10. About SHENTA Machine:



 Shenta Machinery Equipment Co.,Ltd. (short for Shenta machine), we are specialized in concrete brick and block making machine in China, as the most earliest and professional in cement brick and block making machine since1973, we can offer you the brick & block making machine and production line with reliable quality, professional technology, and sincere service. We have exported to Southeast asia, Africa, and Ocenaia, etc.





11.Our Advantages



→ We are brick and block making machine manufacturer with 40 years professional experience.



→ We can offer large scale, millde scale and small scale brick and block making machine.



→ We have more than 40,000 square meters production area with over 200 workers.



→ Welcome to visit Shenta factory.



Welcome Contact Maky (Skype: Shenta_maky, Mobile: +86.13788113588) for more information and specification of the Hydraform Concrete Brick Making Machine QTY10-15
