SHENTA QTJ4-25 Burning-free Concrete Block Making Machine Price in India
SHENTA QTJ4-25 concrete block making machine price in India
QTJ4-25 is the semi automatic concrete block making machine. It is all mechanical transmission, has the features of compact structure, reliable operation, easy maintenance and low failure rate, it utilize the table vibration method to form the brick with excellent shape, dense structure, high strength and lower cement consumption.
By changing different forming mold, QTJ4-25 concrete block making machine can produce different kinds of bricks, includes wall brick, hollow brick, solid brick, paver brick and so on. it is the best solution of the small construction engineering or the medium and small scale brick factories.
Advantages of QTJ4-25 concrete block making machine
1. Long service life, little maintenance:
--built with high quality steel, good quality welding and quality finishes.
--Japan or Taiwan quality electric parts.
2. High precision, Low malfunction rate:
---Semiautomatic control system, all mechanical transmission;
---interlocking functions, data auto-collecting contactors, alarms for lack of pallet and material.
3. Semi automatic operations:
--automatic pallet feeding
--automatic brick discharging.
4. Fast brick forming speed, ensured brick density:
--Brick formed by synchronous vibration of press head and mold table; 4 vibrators.
--Drops 4 blocks per mould, only 25 seconds per cycle. (Calculated based on brick size 240x53x115mm).
5. Cost saving:
--high qualified rate, low cement consumption.
6. Multi-function:
--Suitable for different kinds of brick types and materials.
7. High quality finished brick:
--good looking, accurate size, durable, long service life.
8. SHENTA MACHINE offer good pre-sale and after sale service.
Main specifications of QTJ4-25 concrete block making machine
Overall Dimension |
3100x1550x2300 mm |
Forming Cycle |
40 s |
Pallet Size |
840x450x25 mm |
Vibration Frequency |
4300 rpm |
Net Weight |
2.5 t |
Vibration Force |
40 kn |
Power Capacity |
16.5 kw |
Vibration Power |
9 kw |
Workers per production line |
4-5 people |
Brick Factory Area |
1000 m2 |

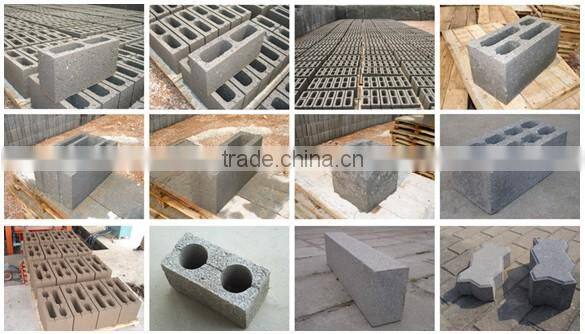

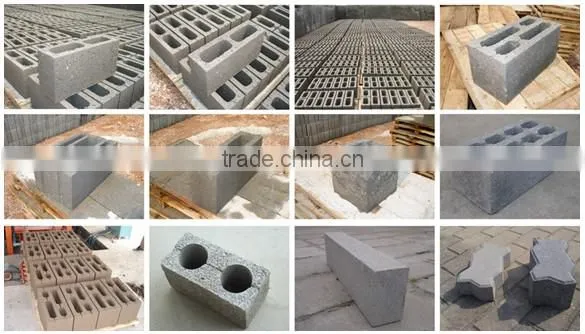

| Brick Types | Brick Dimension | Blocks/Mold | Blocks/Hour | Blocks/Shift | Brick image |
| Hollow Brick | 390*190*190mm | 4 | 360 | 2880 |
|
| Porous Brick | 240*115*90mm | 9 | 810 | 6480 |
|
| Solid Brick | 240*53*115mm | 21 | 1890 | 15120 |
|


1.Sand: 30~40%; 2.Fly Ash or Additive: 0 ~10%;
3.Cement: 10~20%; 4.Crushed Stone (<5cm): 30~40%;
5.Construction Refuse or Mineral Slag.
Company Profile
Guangxi SHENTA Machinery Equipment Co.,Ltd. was founded in 1973, based in Nanning, Guangxi, China. The factory covers an area of 40,000 m2, with more than 200 staff. We specialize in the production of all eco brick making equipment.
About 40 years professional manufacturing experience had brought us we a good reputation both in domestic and exporting markets.
Our production are mainly as below:
1. Full automatic block making machine, semi automatic block making machine.
2. Manual block making machine, mechanical block making machine, hydraulic press block making machine, isostatic press block making machine.
3. Concrete mixers, brick stackers, brick pallet loaders, brick material screw conveyor, cement silo and other brick making assistant equipments.
4. Automatic brick production line.
Our main exporting markets are:
India, Vietnam, Indonesia, Pakistan, Thailand, Bangladesh, Nepal, Burma, Laos, Sri Lanka, Saudi Arabia, South Africa, Russia etc.
We will keep the corporate value of "Providing first-class products and service" and build a solid future with you.

Exhibitions
We take part in many construction machinery exhibitions every year, such as Bauma ConExpo in India, China, South Africa, Germany and machinery exhibitions in Vietnam and Indonesia; Canton Fair in Guangzhou; The ASEAN-China Exposition in Nanning and so on.
Our services
1. Pre-sale:
Provide block making factory setting solution, fitting choice and confirm scale of operation, based on customer’s need, factory layout design.
2. Sales:
1) Free service of block making machines installation and commissioning;
2) Training for block making machines operator and maintenance person.
3. After-sale:
1) Help customers to establish block making production craft formula;
2) Provide the consultation for block making machines and other related equipment all the time;
3) Supply brick moulds and parts all the time.
4. Block making machine OEM and ODM services
If any further information needed, please don't hesitate to contact me. ^_^
