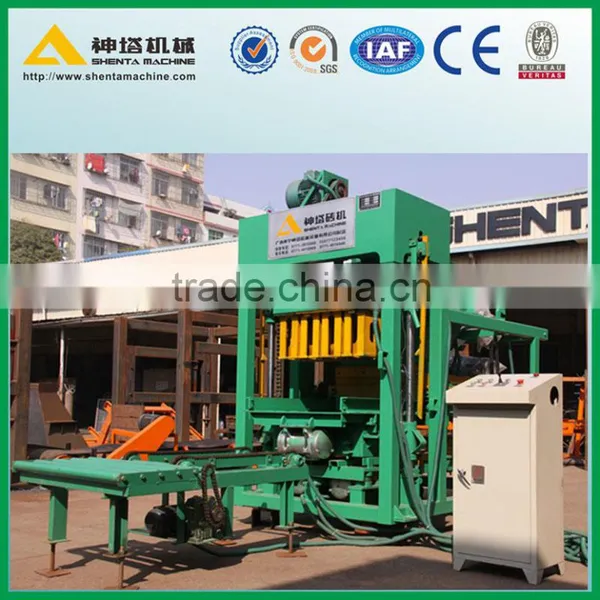

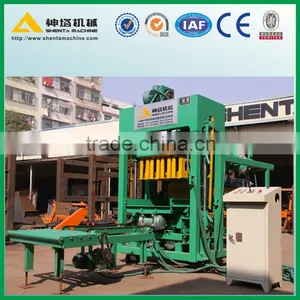

QTJ4-40 low price small light brick making machine
1.Characteristic of QTJ4-40 low price small light brick making machine
1. QTJ4-40 is the semi-automatic low price small light brick making machine which we design & develop to meet the market demand, it is all mechanical transmission, has the features of compact structure, reliable operation, easy maintenance and low failure rate, it utilize the table vibration method to form the brick with excellent shape, dense frame and high strength, as well as lower cement comsumption.
2. By changing different forming mold, the QTJ4-40 low price small light brick making machine can produce different wall brick, hollow brick, solid brick, paver brick and so on, it is the best solution of the small construction engineering or the middle-small scale brick factory.
Main Specification QTJ4-40 small light brick making machine
Operation Cycle (s) |
25~40 |
Vibration Force (Kn)
|
40 |
Brick Height(mm) |
60~200 |
MainPower Capacity(Kw) |
16.5 |
| Vibration Frequency (rpm) | 4300 |
Pallet Dimension (mm)
|
840x450x60
|
Net Weight (Ton) |
2.5 |
Main Machine Dimension(mm) |
3100*1530*2380 |
Power Source |
3Phase, 380V/50Hz (Special voltage & frequency is available according to your local power source.) |
||
Theoretic Productivity QTJ4-40 small light brick making machine
Brick Type |
Dimension |
Blocks/Cycle |
Blocks/Hour |
Blocks/Shift |
Remark |
Hollow Brick |
390*190*190mm |
4 |
360 |
2880 |
|
Porous Brick |
240*115*90mm |
9 |
810 |
6480 |
|
Interlock Brick |
225*112.5*60mm |
9 |
810 |
6480 |
|
Solid Brick |
240*115*53mm |
21 |
1890 |
15120 |
|
Note: Special brick model is available according to customers requirment
2.Advantage of small light brick making machine
1. Automatic pallet and concrete feeding, it can save manpower and reduce the labor intensity, increase
3.Raw Material for small light brick making machine
Our machine can adopt the following raw materials to make the good quality hollow brick, solid brick
and paver brick.
1.Sand: 30~40%; 2.Fly Ash or Additive: 0 ~10%;
3.Cement: 10~20%; 4.Crushed Stone (<5cm): 30~40%;
5.Construction Refuse or Mineral Slag.
4.Brick Sample for small light brick making machine
hollow brick, solid brick, porous brick, paver brick, interlock brick,
road traffic stone and so on.
5.Production flow of small light brick making machine
Experienced in selling concrete brick machine to more than 30 different countries, we pack and load the machines well and prevent any damages during transportation, all the key parts are protect by the wooden
box.
6.Factory Ability:
1.Factory Area: 40,000 square meter;
2.Facility: CNC Lathe: 06 sets; Boring Lathe: 02 sets; Shaper: 02 sets; Milling Machine: 04 sets;
Press Brake: 02 units, CNC Flame Cutter: 01 set; Crane: 10 sets; Shot Blast Machine: 01 set.
7.Quality Control:
We adopt the high quality steel materials, and every process will have the strict inspection and test
to ensure the machine has perfect performance.
8.Certification:
9.Exhibitions:
We take parts in many exhibitions every year, such as Canton Fair in Guangzhou; India international engineering machinery, building materials machinery, mining machinery, engineering vehicles and
parts exhibition; International concrete technology and equipment exhibition in India; The ASEAN-China
Exposition in Nanning, etc.
10. our service
Pre-sale:
Analyze the customer’s need and factory layout design, confirm scale of operation;
Select the fitting choice;
Provide perfect solution to set up a factory.
Sales:
Help to set up the factory;
Provide free service of installation and commissioning;
Provide training for operator and maintenance person.
After-sale:
Help customers to establish production craft formula;
Provide the consultation all the time;
Supply moulds and parts all the time.
11.RFQ:
Q1: What is the standard packing for the brick machine?
A1: It depends. If necessary, wooden cases with fumigation are available.
Q2: If OEM and ODM services available?
A2: Yes. We can make the machines with customers’ brand and logo. With professional engineers, we also
can design and produce the machines according to customers’ requests.
Q3: What is the production lead time?
A3: Normally, if the brick machine are standard, it will be 35 to 40days. If not, the production lead time will be longer.
My dear friends, if you have any questions about the small light brick making machine, please feel free to contact Alice:)
,
