QTJ4-60 hollow brick machine, hand press brick machine
- 1000 Set / Sets per Month
- Shenzhen Guangzhou Shanghai Fangchenggang or other port
- T/T L/C D/P D/A Credit Card PayPal
-
China Construction Machinery.QTJ4-60 concrete brickmaking machine
-
Latest product. QTJ4-60 concrete manual hollow block maker
-
low investment QTJ4-60 small scale concrete block making machine
-
QTJ4-50 small brick machine, concrete block machine maker
-
machines for sale. QTJ4-60 construstion machines for hollow block
-
China Construction Machinery. QTJ4-60 hand press cemernt block making machine
Product Details
| Condition: | New | Type: | Hollow Block Making Machine | Brick Raw Material: | Other, Cement,Sand,Crushed stone,Construction wasted matter,Pearl rock,etc. |
| Processing: | Brick Molding Machine | Method: | Other, Vibration | Automatic: | Other, Manual |
| Capacity: | 2000-10000/8hrs | Place of Origin: | Guangxi, China | Brand Name: | SHENTA MACHINE |
| Model Number: | QTJ4-60 hand press brick machine | Voltage: | 380V/220V | Power: | 7.5 KW |
| Dimension(L*W*H): | 1365x900x1675mm | Certification: | ISO9001:2008, CE, BV | Warranty: | 6 months |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Export standards, seaworthy packing
Product Description

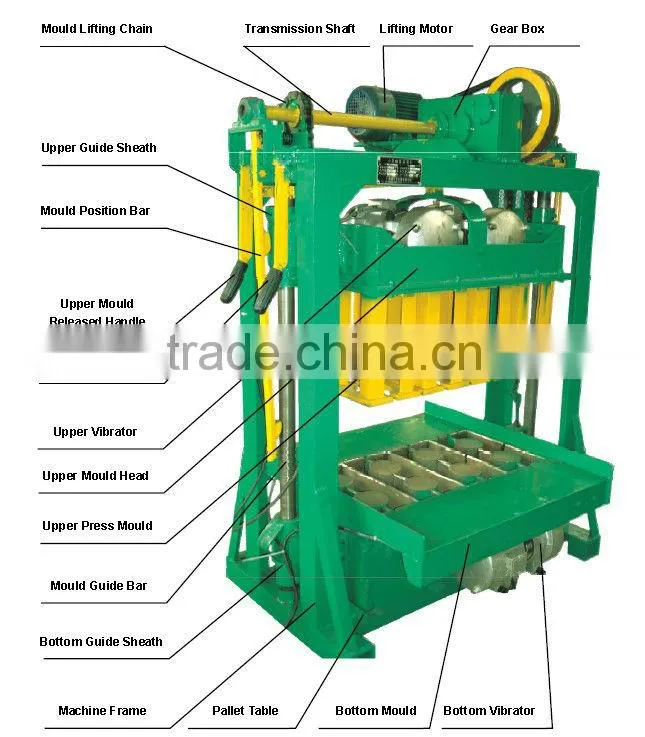

QTJ4-60 hollow brick machine, hand press brick machine
Characteristic of hand press brick machine
QTJ4-60 is the semi-automatic brick machine to meet the market demand, it is all mechanical transmission, automatic pallet load and concrete load, has the advantage of compact structure, reliable operation, very low malfunction rate, and easy maintenance and high production efficiency.
By changing different mold, the QTJ4-60 can produce different wall brick, porous brick and cement solid brick, it can meet the brick requirement of small construction engineering, is the best selection of small scale brick factory or mobile brick factory.
Technical Specification of hand press brick machine
Outside Dimension (mm) | 1365x900x1675 | Operation Cycle (s) | 60 |
Main Machine Weight (Ton) | 1 | Vibration Frequency (rpm) | 4300 |
Power Consumption (Kw) | 7.5 | Vibration Force (Kn) | 20 |
Pallet Dimension (mm) | 840x450x60 | Vibration Power (kW) | 6 |
Theoretical Productivity of hand press brick machine
src="/img/pb/583/860/706/706860583_187.jpg" alt=" brick forming
Brick Size | Blocks/Mold | Blocks/Hour | Blocks/Shift | Remark |
Hollow Brick (390x190x190mm) | 4 | 240 | 1,900 |
|
Hollow Brick (400x200x200mm) | 3 | 180 | 1,400 |
|
Porous Brick (400x100x200mm) | 7 | 420 | 3,360 |
|
Solid Brick (210x60x105mm) | 21 | 1,260 | 10,000 |
|

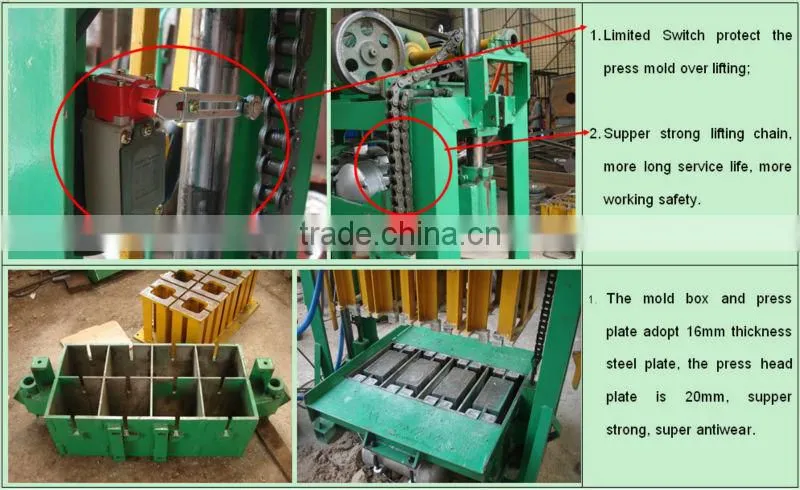

Details of hand press brick machine
Bricks Made by hand press brick machine Various types of concrete block, cement brick, solid brick, hollow block, perforated brick, paving brick, interlocking
block, building brick, garden and landscaping block, grass block, slope block, etc. can be made.
Raw Material of Bricks
Many kinds of materials such as concrete, cement, sand, crushed stone, dust and fly coal ash, cinder, gravel,
perlite, construction refuse, etc. can be used to make brick.

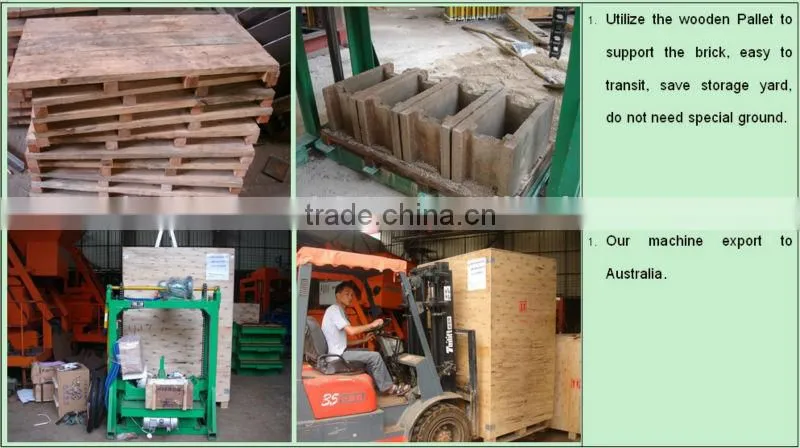

Exhibition show
Company Profile
Shenta Machinery Equipment Co.,Ltd. (short for Shenta machine), we are specialized in concrete brick and block making machine in China, as the most earliest and professional in cement brick and block making machine since1973, we can offer you the brick & block making machine and production line with reliable quality, professional technology, and sincere service. We have exported to Southeast asia, Africa, and Ocenaia, etc. |
Our Advantages |
→ We are brick and block making machine manufacturer with 40 years professional experience. → We can offer large scale, medium scale and small scale brick and block making machine and production line. → We have more than 40,000 square meters production area with over 200 workers. → Welcome to visit Shenta factory. |
Thank you for your attention to SHENTA MACHINE.
Welcome to inquire more information about hand press brick machine.
Company Profile
Nanning SHENTA Machinery Equipment Co., Ltd, established in 1973, is the earliest professional and leading manufacturer of concrete block making machinery. After decades of hard working, we have developed into the high-tech enterprises which integrate the research & development, manufacturing, sales and service. SHENTA factory covers an area of 40,000 square meter, with senior engineers more than 20 people and all kinds of technician more than 200 staff. With an annual production capacity of 500 sets.
SHENTA devoted great care to market planning and development, we have earned ISO9001-2008 Quality Management Certificate in 2008, and awarded the title of "valuing contract and keeping promise" for many years. With the advanced technique, sophisticated technology, strict supervision and perfect service, SHENTA has become the high quality supplier in new building material field.
SHENTA not only distributed in all around China, but also exported to Southeast Asia, Africa, and Oceania etc.
Adhering to the philosophy of "Credit & Honest, dedication & devotion, pragmatism & practice, Innovation & Creation", SHENTA stride forward to construction equipment enterprise of specialization, scale and internationalization, provide strong support of equipment for the new building material, building the solid future for you.
