Our Advantages
1)We are brick and block making machine manufacturer with 40 years professional experience.
2) We can offer large scale, millde scale and small scale brick and block making machine.
3) We have more than 40,000 square meters production area with over 200 workers.
4)Welcome to visit Shenta factory

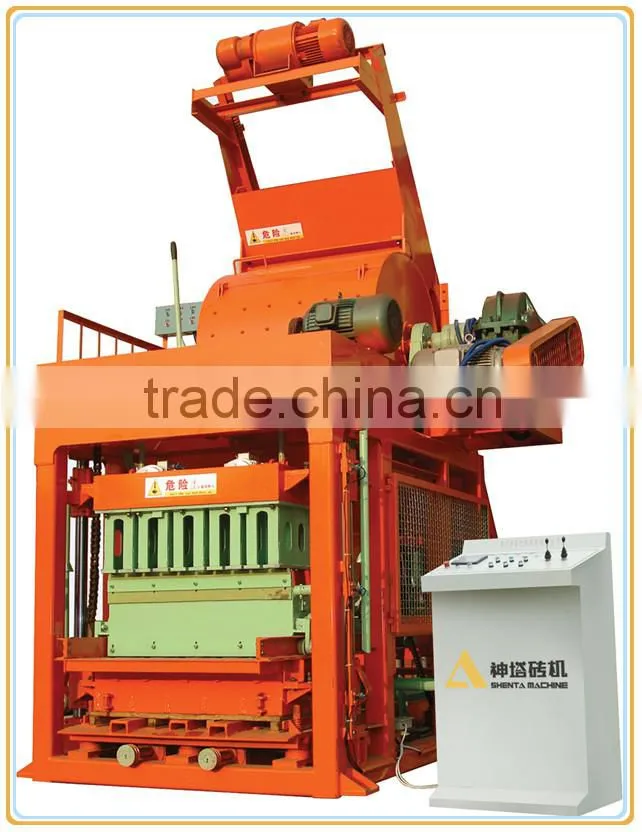

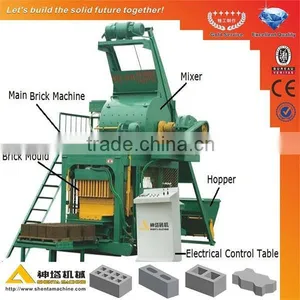

QTJ5-20 automatic concrete building construction tools and equipment 1.Characteristic of automatic building construction tools and equipment 1.Control system: Adopted with Taiwan intelligent programmable logic controller (PLC) and high performance LCD, our brick machines can realize the man-machine conversation and fully automatic intelligent operation.
2.High efficient vibration system: Adopt intelligent control and synchronous vertical vibration techniques. Bricks formed by synchronous vibrations of press
head and mould table, which makes the forming speed faster and the bricks denser.
3.Machinery Manufacturing: Made of high strength steels according to the national standard. Special welding techniques and advanced mechanical working
processes bring high precision, durable and a long service life.
4.Transmission system: Adopted with mechanical transmission and two pillars oriented. Simple and compact structure brings it stable and consecutive actions
and easy to be maintained.
5.Feeding system: Adopt the forced advanced rotating arch breaker. It is suitable for various materials, and the process is uniform and quick.
Main specification of automatic building construction tools and equipment
| Outside Dimension | 3405x2040x4300 mm | Forming Cycle | 15-25 s | ||||
| Pallet Size | 1050x450x30mm | Vibration Frequency | 4300 rpm | ||||
| Net Weight | 8t | Vibration Force | 45 kn | ||||
| Power Capacity | 44kw | Brick Height | 60-200 mm | ||||
| Brick Type | Dimension | Blocks/Mould | Blocks/Hour | Blocks/Shift | |||||
| Hollow Brick | 390x190x190 | 4 | 900 | 7200 | |||||
| Porous Brick | 240x115x90 | 16 | 2880 | 23040 | |||||
| Solid Brick | 240x53x115 | 32 | 5760 | 46080 | |||||

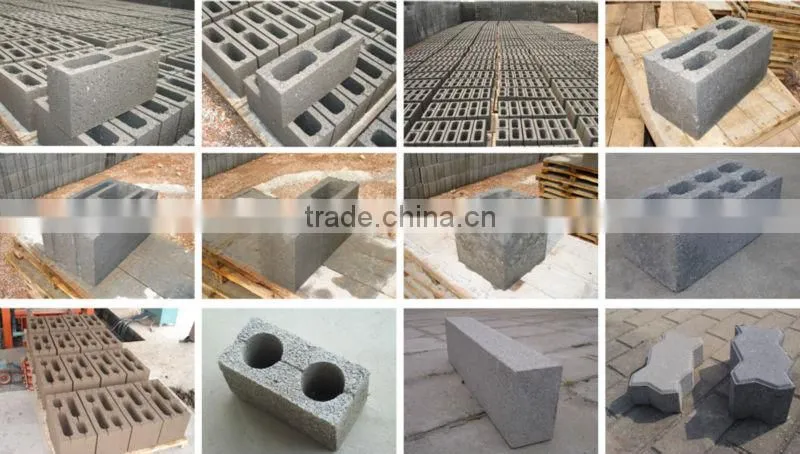

2.Brick sample of automatic building construction tools and equipment
By changing different mold, the QTJ5-20 automatic building construction tools and equipment can produce different hollow brick, porous brick and cement solid brick. Special brick model is available according with customer demand.
3.Raw materials for automatic building construction tools and equipment
Our machine can adopt the following raw materials to make the good quality hollow brick, solid brick and paver brick.
1.Sand: 30~40%; 2.Fly Ash or Additive: 0 ~10%;
3.Cement: 10~20%; 4.Crushed Stone (<5cm): 30~40%;
5.Construction Refuse or Mineral Slag.

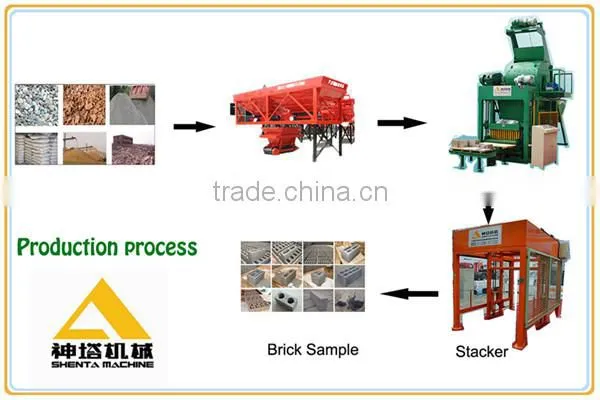

4.Production line of automatic building construction tools and equipment
Our company can provide the whole production line machines to meet customers' need.
5.Packing and Shipping
We pack and load the machines well and prevent any damages during transportation, all the key parts are protect by the wooden box.

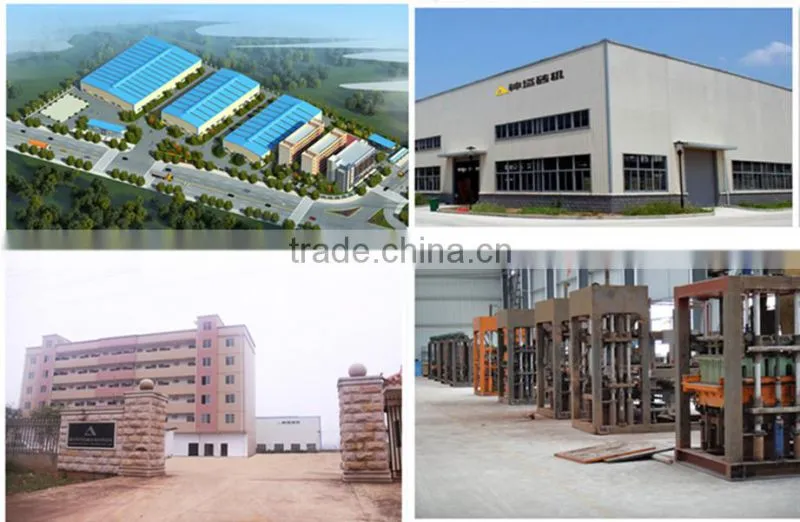

1.Guangxi SHENTA Machinery Equipment Co.,LTD,established in 1973.With about 40 years experence in brick making machine, we have built a credit and integrity image in machine export domain.
We adopt the high quality steel materials, and every process will have the strict inspection and test to ensure the machine has perfect performance.
8.Exhibition
We take parts in many exhibitions every year, such as Canton Fair in Guangzhou; India international engineering machinery, building materials machinery, mining machinery, engineering vehicles and parts exhibition; International concrete technology and equipment exhibition in India; The ASEAN-China Exposition in Nanning, etc.
9.Our service
Pre-sale:
Analyze the customer’s need and factory layout design, confirm scale of operation;
Select the fitting choice;
Provide perfect solution to set up a factory.
Sales:
Help to set up the factory;
Provide free service of installation and commissioning;
Provide training for operator and maintenance person.
After-sale:
Help customers to establish production craft formula;
Provide the consultation all the time;
Supply moulds and parts all the time.
Q1: What is the standard packing for the brick machine?
A1: It depends. If necessary, wooden cases with fumigation are available.
Q2: If OEM and ODM services available?
A2: Yes. We can make the machines with customers’ brand and logo. With professional engineers, we also
can design and produce the machines according to customers’ requests.
Q3: What is the production lead time?
A3: Normally, if the brick machine are standard, it will be 35 to 40days. If not, the production lead time will be longer.
My dear friends, if you have any questions about the automatic building construction tools and equipment, please feel free to contact Alice:)
