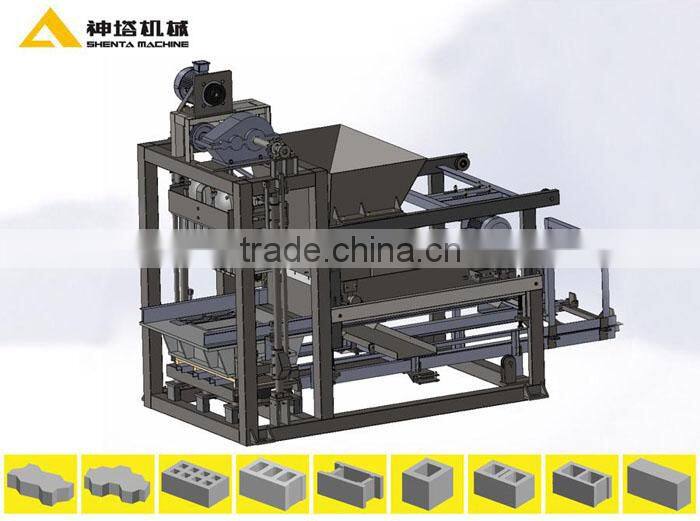

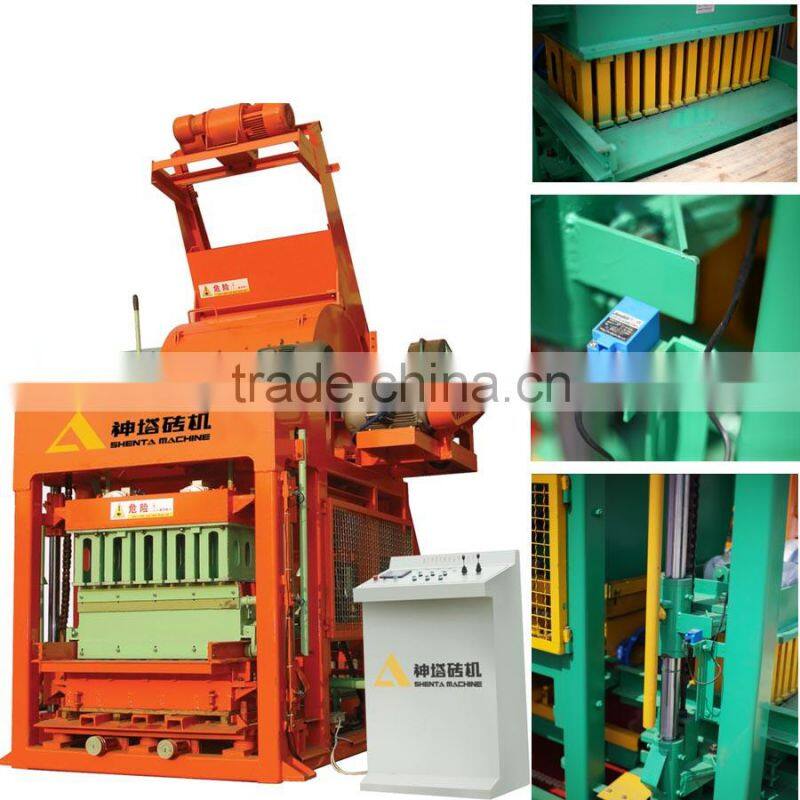

QTJ5-20 construction equipment block making machine
1.Characteristic of QTJ5-20 construction equipment block making machine
1.Full mechanical transmission with feature of compact structure and reasonable design, stable running, lower malfunction rate, easy operation and maintenance;
2.Adopt Japan Mitsubishi PLC program control, produce the cement brick automatically, electrical parts ate provided by the famous brand manufacturer, the operation is more safety and reliable;
3.The main making machine utilize the pressing and high frequency vibration to mold the brick, the finished product is more dense and solid;
4.The high speed arch breaking device can consumedly shorten the material distributing time;
5.By changing difference mould, the block making machine can produce either load-bearing brick or non-load-bearing brick, and multitude shape wall brick;
6.Machine frame adopt super strong profile steel to weld to provide the stability and reliability intervening the long working life.
Main Specification of QTJ5-20 construction equipment block making machine
Operation Cycle(s) | 20~25 |
Vibration Force (Kn)
| 55 |
Brick Height(mm) | 60~200 | MainPower Capacity(Kw) | 44 |
| Vibration Frequency (rpm) | 4300 |
Pallet Dimension (mm)
|
1050x550
|
Net Weight (Ton) | 8 | Main Machine Dimension(mm) | 3405*2040*4300 |
Power Source | 3Phase, 380V/50Hz (Special voltage & frequency is available according to your local power source.) | ||
Theoretic Productivity of QTJ5-20 construction equipment block making machine
Brick Type | Dimension | Blocks/Cycle | Blocks/Hour | Blocks/Shift | Remark |
Hollow Brick | 390*190*190mm | 5 | 900 | 7200 | |
Porous Brick | 240*115*90mm | 16 | 2880 | 23040 | |
Interlock Brick | 225*112.5*60mm | 16 | 2880 | 23040 | |
Solid Brick | 240*115*53mm | 32 | 5760 | 46080 | |
Note: Special brick model is available according to customer demand.
2.Advantages of construction equipment block making machine
3.Raw Material for QTJ5-20 construction equipment block making machine
Our machine can adopt the following raw materials to make the good quality hollow brick, solid brick
and paver brick.
1.Sand: 30~40%; 2.Fly Ash or Additive: 0 ~10%;
3.Cement: 10~20%; 4.Crushed Stone (<5cm): 30~40%;
5.Construction Refuse or Mineral Slag.
4.Brick Sample of QTJ5-20 construction equipment block making machine
By changing difference moulds, the precast block making machine can produce the concrete hollow brick, solid brick, porous brick, paver brick, interlock brick, road traffic stone and so on.
5.Production flow of QTJ5-20 construction equipment block making machine
Experienced in selling concrete brick machine to more than 30 different countries, we pack and load the machines well and prevent any damages during transportation, all the key parts are protect by the wooden box.
6.Company Profile
7.Quality Control
We adopt the high quality steel materials, and every process will have the strict inspection and test to ensure the machine has perfect performance.
Exhibitions:
We take parts in many exhibitions every year, such as Canton Fair in Guangzhou; India international engineering machinery, building materials machinery, mining machinery, engineering vehicles and parts exhibition; International concrete technology and equipment exhibition in India; The ASEAN-China Exposition in Nanning, etc.
Pre-sale:
Analyze the customer’s need and factory layout design, confirm scale of operation;
Select the fitting choice; Provide perfect solution to set up a factory.
Sales:
Help to set up the factory;
Provide free service of installation and commissioning;
Provide training for operator and maintenance person.
After-sale:
Help customers to establish production craft formula;
Provide the consultation all the time;
Supply moulds and parts all the time.
Q1: What is the standard packing for the brick machine?
A1: It depends. If necessary, wooden cases with fumigation are available.
Q2: If OEM and ODM services available?
A2: Yes. We can make the machines with customers’ brand and logo. With professional engineers, we can also design and produce the machines according to customers’ requests.
Q3: What is the production lead time?
A3: Normally, if the brick machine are standard, it will be 35 to 40 days. If not, the production lead time will be longer.
My dear friends, if you have any questions about the construction equipment block making machine,please feel free to contact Alice:)
