Specifications

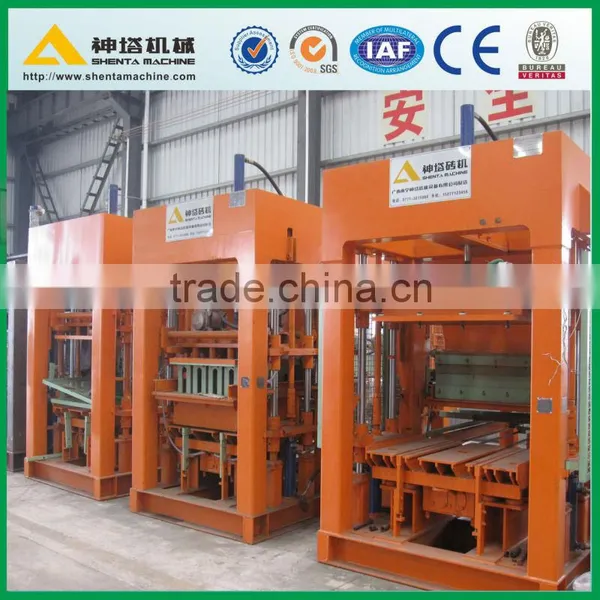

QTY5-15 brick making machineFull automatic
Various high density bricks
Table & mold vibration
With IS09001-2008 CE & BV
Characteristic of QTY5-15 brick making machine
1.The main machine adopt Japanese Mitsubishi PLC controller, has the functions of HMI operation and brick automatic output, automatic reset, lack material and lack plank alarm, easy and humanized operation, electric parts are provided by well-known company to ensure the safety and stable running;
2.The main machine utilized the molding method of pressure and high frequency vibration to make the more airtight and solid block;
3.With multifunction feature to produce both the load-bearing brick and non-load-bearing brick, according to change the moulds to produce different wall bricks, as well as produce multi-hole bricks and road pavers bricks; high quality frequency converter can protect the working life, as well as reduce the power consumption.
Main Specification of QTY5-15 brick making machine:
| Operation Cycle | 15~25s | Pallet Size |
1080*550*30mm |
Brick Height |
60~200mm |
Main Power Capacity |
37Kw |
Vibration Frequency |
4300 rpm |
Vibartion Force (kn) |
60 |
Net Weight |
7t |
Vibration Power (kw) |
15 |
Power Source |
3Phase, 380V/50Hz (Special voltage &frequency is available according to your local power source.) |
Main Machine Dimension |
3860*1800*3000mm |
Theoretic Productivity of QTY5-15 brick making machine:
| Brick Type | Dimension | Blocks/Cycle | Blocks/Hour | Blocks/Shift | Remark |
Hollow Brick |
390*190*190mm |
5 | 1200 | 9600 | |
| Porous Brick | 240*115*90mm |
16 | 3840 | 30720 | |
| Paver Brick | 200*100*60mm |
18 | 4320 | 34560 | |
| Solid Brick | 240*115*53mm |
32 | 7680 | 61440 | |
Note: Special brick model is available according with customer demand.
Components of Automatic Production Line:
Simple Automatic Production Line:
Equipment List:
| 1 | Forklift | 9 | Wheel Loader |
| 2 | Stacker | 10 | Batching Machine |
| 3 | Pigment Mixer | 11 | Mixer |
| 4 | Belt Conveyer for Pigment | 12 | Hydraulic Power Unit |
| 5 | Block Making Machine | 13 | PLC Controller |
| 6 | Belt Conveyer for Base Material | 14 | Color Feeding System |
| 7 | Screw Conveyer | 15 | Green Block Conveyer |
| 8 | Cement Silo |
Full Automatic Production Line:
Equipment List:
| 1 | Cement Silo |
2 | Screw Conveyors |
3 |
Aggregate Weighing System |
4 |
Face Material Weighing System |
| 5 |
Mixer for Main Materials and Face Materials |
6 | Belt Converyors |
7 |
Automatic Block Making Machine |
8 | Conveyor for Wet Block |
| 9 | Elevator |
10 | Finger Car |
11 | Lowerator | 12 | Conveyor for Dry Blocks |
| 13 | Stacker |
14 | Pallets Turnover | 15 | Chain Conveyor For Finished Products |
16 | Pallet Recycling Device |
Raw Material:
Our machine can adopt the following raw materials to make the good quality hollow brick, solid brick and paver brick.
1. Sand: 30~40%; 3. Fly Ash or Additive: 0~10%
2. Cement: 10%~20%; 4. Crushed Stone (<5cm): 30~40%;
Brick Sample:
Our machine can produce the concrete hollow brick, solid brick, porous brick, paver brick, interlock brick, road traffic stone etc .
Experienced in selling concrete brick machine to more than 30 different countries, we pack and load the machines well and prevent any damages during transportation, all the key parts are protect by the wooden box.
Factory Ability:
1.Factory Area: 40,000 square meter;
2.Facility: CNC Lathe: 06 sets; Boring Lathe: 02 sets; Shaper: 02 sets; Milling Machine: 04 sets; Press Brake: 02 units, CNC Flame Cutter: 01 set; Crane: 10 sets; Shot Blast Machine: 01 set
Quality Control:
We adopt the high quality steel materials, and every process will have the strict inspection and test to ensure the machine has perfect performance.
Exhibitions:
We take parts in many exhibitions every year, such as Canton Fair in Guangzhou; India international engineering machinery, building materials machinery, mining machinery, engineering vehicles and parts exhibition; International concrete technology and equipment exhibition in India; The ASEAN-China Exposition in Nanning, etc.
Contact Information:
Send Inquiry to This Supplier
