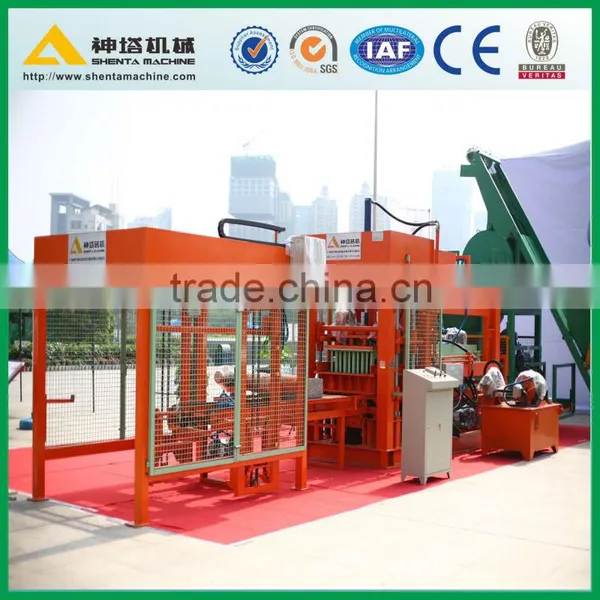

Characteristic of QTY10-15 automatic concrete brick machine
1.The main machine adopt Japanese Mitsubishi PLC controller, has the functions of HMI operation and brick automatic output, automatic reset, lack material and lack plank alarm, easy and humanized operation, the electric parts are provided by well-known company to ensure the safety and stable running;
2.The main machine utilized the molding method of pressure and high frequency vibration to make the more airtight and solid block;
3.The hydraulic system adopts Taiwan/Japan high quality components;
4.With multifunction feature to produce both the load-bearing brick and non-load-bearing brick, according to change the moulds to produce different wall bricks, as well as produce multi-hole bricks and road pavers bricks;
5The high quality frequency converter can protect the working life, as well as reduce the power consumption.
Main Specification:
| Operation Cycle | 15~25s | Pallet Size |
1100*900*25mm |
Brick Height |
60~200mm |
Main Power Capacity |
50Kw |
Mixer Model |
JS750 |
Vibration Force |
120kN |
Net Weight |
15t |
Main Machine Dimension |
5200*2700*3100mm |
Power Source |
3Phase, 380V/50Hz (Special voltage & frequency is available according to your local power source.) |
Pallet | 1100*900mm |
Theoretic Productivity:
| Brick Type | Dimension | Blocks/Cycle | Blocks/Hour | Blocks/Shift | Remark |
Hollow Brick |
390*190*190mm |
10 | 2400 | 19200 | |
| Porous Brick | 240*115*90mm |
21 | 5040 | 40320 | |
| Paver Brick | 200*100*60mm |
36 | 8640 | 61920 | |
| Solid Brick | 240*115*53mm |
48 | 11520 | 92160 | |
Note: Special brick model is available according with customer demand.
Components of Automatic Production Line:
Simple Automatic Production Line:
Equipment List:
| 1 | Forklift | 9 | Wheel Loader |
| 2 | Stacker | 10 | Batching Machine |
| 3 | Pigment Mixer | 11 | Mixer |
| 4 | Belt Conveyer for Pigment | 12 | Hydraulic Power Unit |
| 5 | Block Making Machine | 13 | PLC Controller |
| 6 | Belt Conveyer for Base Material | 14 | Color Feeding System |
| 7 | Screw Conveyer | 15 | Green Block Conveyer |
| 8 | Cement Silo |
Raw Material:
Our machine can adopt the following raw materials to make the good quality hollow brick, solid brick and paver brick.
1.Cement: 10%~20%;
2.Sand: 30~40%;
3.Crushed Stone (<5cm): 30~40%;
4.Fly Ash or Additive: ~10%
Brick Sample:
Our machine can produce the concrete hollow brick, solid brick, porous brick, paver brick, interlock brick, road traffic stone and so on.
Experienced in selling concrete brick machine to more than 30 different countries, we pack and load the machines well and prevent any damages during transportation, all the key parts are protect by the wooden box.
Factory Ability:
1.Factory Area: 40,000 square meter;
2.Facility: CNC Lathe: 06 sets; Boring Lathe: 02 sets; Shaper: 02 sets; Milling Machine: 04 sets; Press Brake: 02 units, CNC Flame Cutter: 01 sets; Crane: 10 sets; Shot Blast Machine: 01 set
Quality Control:
We adopt the high quality steel materials, and every process will have the strict inspection and test to ensure the machine has perfect performance.
Exhibitions:
We take parts in many exhibitions every year, such as Canton Fair in Guangzhou; India international engineering machinery, building materials machinery, mining machinery, engineering vehicles and parts exhibition; International concrete technology and equipment exhibition in India; The ASEAN-China Exposition in Nanning, etc.
