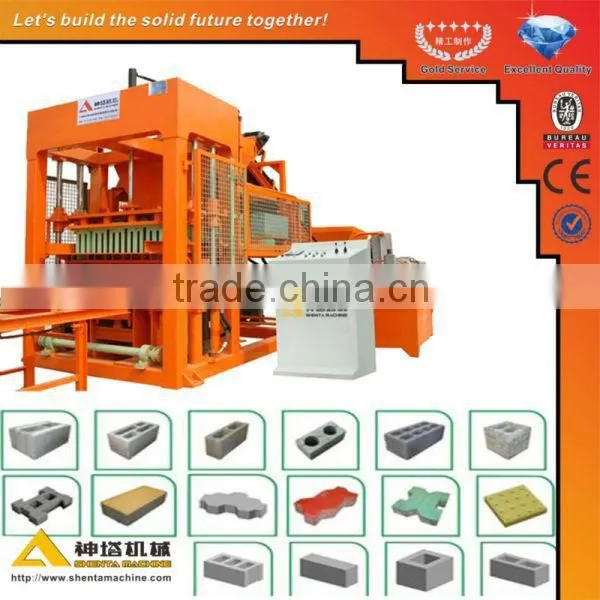

Help CenterConstruction Machinery for Sale, Qt5-15 Automatic Concrete Block Making Machine in Myanmar
Related Products
-
QTY 5-15 Stone Block Making Machine, Automatic Concrete Block Factory (machine)US$ 30,000 - 60,000MOQ: 1 Set -
Hot Sale! PLC Controller,import Hydraulic Valve. ShentaQTY6-15 Automatic Fly Ash Brick Making Machine in India PriceUS$ 40,000 - 60,000MOQ: 1 Set
-
Hot Sale! PLC Controller,import Hydraulic Valve. ShentaQTY6-15 Automatic Concrete Small Manufacturing Machines in LahoreUS$ 40,000 - 60,000MOQ: 1 Set
-
Shenta QTY8-15 Automatic Paver Block Machine Price in IndiaUS$ 35,000 - 41,000MOQ: 1 Set
-
QT10-15 Fully Automatic Hydraform Brick Making Machine in South AfricaUS$ 38,000 - 43,000MOQ: 1 Set

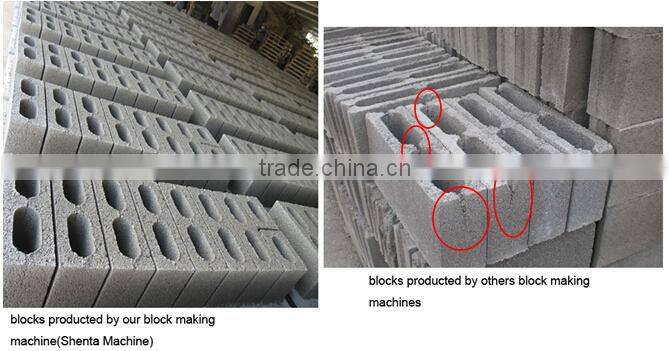

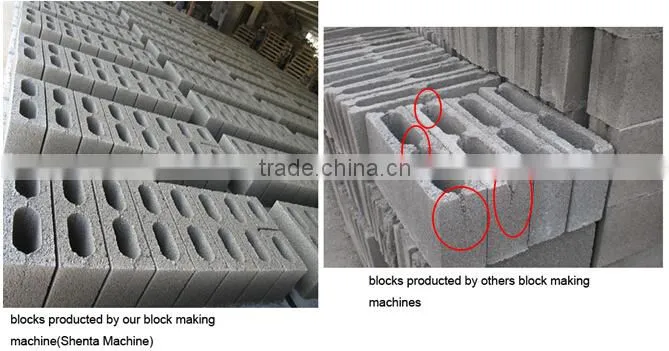

Block samples of price concrete block machine
Production capacity of price concrete block machine
Brick Size |
Blocks/Mould |
Blocks/Hour |
Blocks/Shift |
Hollow Brick (400x200x200mm) |
4 |
960 |
7600 |
Hollow Brick (400x150x200mm) |
6 |
1440 |
11500 |
Hollow Brick (400x100x200mm) |
9 |
2160 |
17200 |
Hollow Brick (390x190x190mm) |
5 |
1200 |
9600 |
Porous Brick (240x115x90mm) |
16 |
3840 |
30700 |
Solid Brick (240x53x115mm) |
32 |
7680 |
61400 |
Interlock Brick (225x112x60mm) |
16 |
3840 |
30700 |
Pavers Brick (200x100x60mm) |
18 |
4320 |
34500 |
Technical Specification of price concrete block machine
Outside Dimension (mm) |
3860x1800x3000 |
Operation Cycle (s) |
15~25 |
Main Machine Weight (Ton) |
7 |
Vibration frequency (rpm) |
4300 |
Power Consumption (Kw) |
37 |
Vibration Force (Kn) |
60 |
Pallet Dimension (mm) |
1050x550x30 |
Vibration Power (kW) |
15 |
Operator quantity |
5 people |
Land required |
4000m2 |
characteristics of this price concrete block machine
1. Control system of price concrete block machine :Adopt intelligent programmable logic controller (PLC) and high performance touch screen. Realize the man-machine conversation and fully automatic intelligent operation
2. High efficient vibration system of price concrete block machine :Adopt intelligent control technique in the frequency conversion vibration system, distribute materials in low frequency and form the bricks in high frequency. Moreover, with the synchronous vertical vibration technology, the brick forming speed becomes faster and the bricks are more compacted
3. Machinery manufacturing of price concrete block machine :Made of high strength steels according to the national standard. Special welding techniques and advanced mechanical working processes bring high precision, durable and a long service life.
4.Transmission system of price concrete block machine : Adopt fully hydraulic transmission, four pillars oriented and synchronous mechanism. Machine operation is stable, precise and less malfunctions
5. Feeding system of price concrete block machine :Adopt the forced advanced rotating arch breaker. It is suitable for various materials, and the process is uniform and quick.

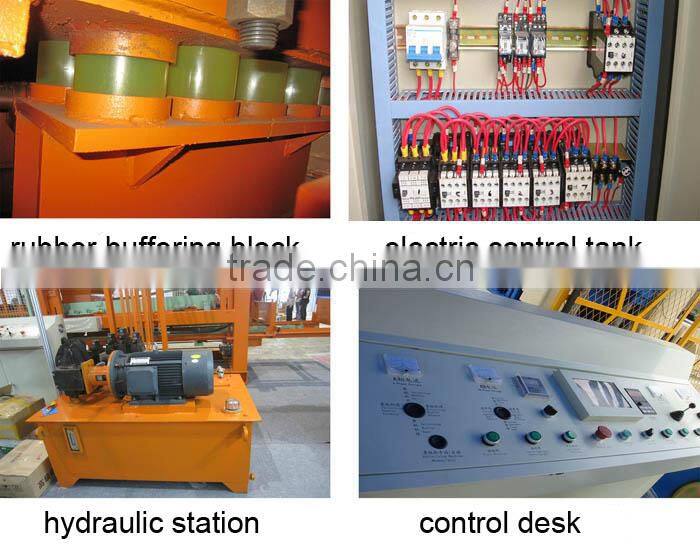

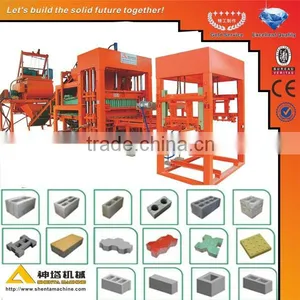

Details pictures of price concrete block machine

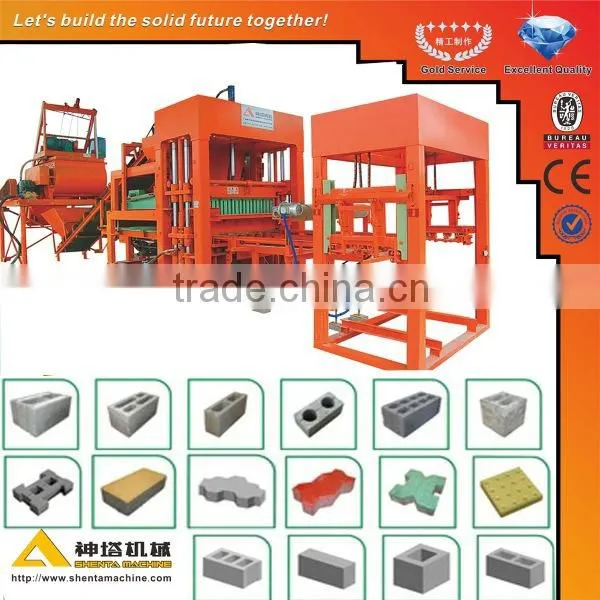

Production line of price concrete block machine

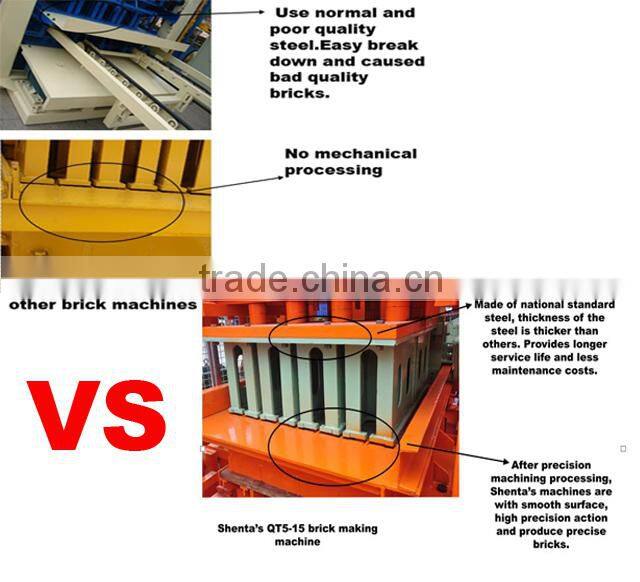

Machines compare
Raw materials for price concrete block machine
1.Sand: 30~40%
2.Fly Ash or Additive: 0 ~10%
3.Cement: 10~20%
4.Crushed Stone (<5cm): 30~40%
5.Construction Refuse or Mineral Slag

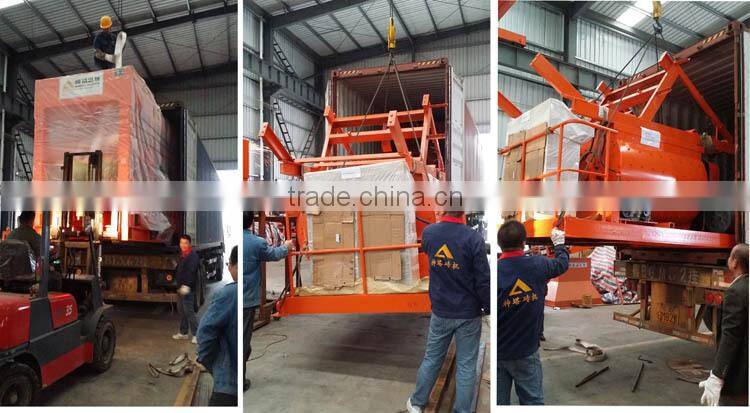

Packaging&Shipping of price concrete block machine
Pre-sale
Analyze the customer's need
Select the fitting choice
Provide perfect solution
Sales
Provide free service of installation and commissioning
Provide training for operator and maintenance person
After-sale
Help to establish production craft formula
Provide the consultation all the time
Supply moulds and parts all the time

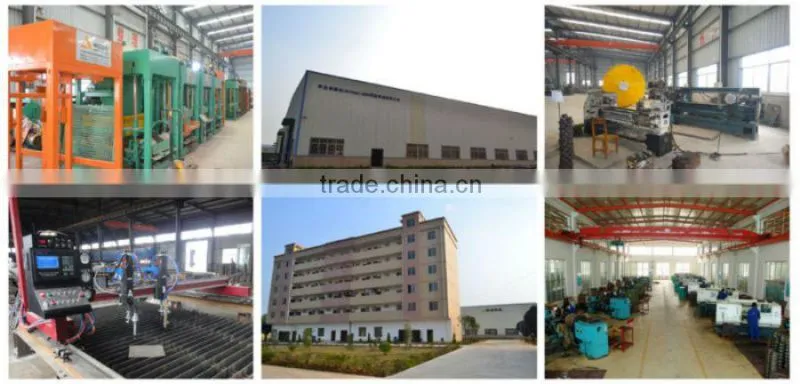

Company information
Nanning SHENTA Machinery Equipment Co., Ltd, established in 1973, is the earliest professional and leading manufacturer of concrete block making machinery.After decades of hard working, SHENTA has developed into the high-tech enterprises which integrate the research & development, manufacturing, sales and service.
SHENTA devoted great care to market planning and development, we have earned ISO9001-2008 Quality Management Certificate in 2008, and awarded the title of "valuing contract and keeping promise" for many years. With the advanced technique, sophisticated technology, strict supervision and perfect service, SHENTA has become the high quality supplier in new building material field.
Adhering to the philosophy of "Credit & Honest, dedication & devotion, pragmatism & practice, Innovation & Creation", SHENTA stride forward to construction equipment enterprise of specialization, scale and internationalization, provide strong support of equipment for the new building material, building the solid future for you.
Our achievement
Shenta not only distributed in all around China, but also exported to Southeast Asia, Africa, and Oceania etc. we can offer you the brick & block making machine and production line with reliable quality, professional technology, and sincere service. Besides, We take parts in many exhibitions every year, such as Canton Fair in Guangzhou; India international engineering machinery, building materials machinery, mining machinery, engineering vehicles and parts exhibition; International concrete technology and equipment exhibition in India; The ASEAN-China Exposition in Nanning, etc.
ISO9001,gold supplier,CE,BV...
Q1.What is the mini order quantity?
A1.one set. the price would be lower if medium & large scale purchase
Q2.What kinds of bricks can be product by the price concrete block machine?
A2.Solid block, hollow block,porous block,interlock block,paver block ,etc.
Any question? Please contact us!
