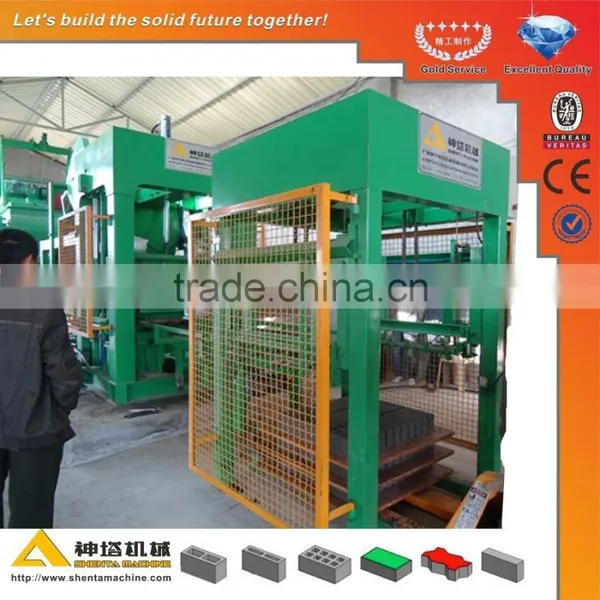

QTY 5-15 stone block making machine, automatic concrete block factory (machine)
Characteristics
1. Adopt PLC controller from Taiwan, HMI operates, brick production is automatic, has the function of automatic
reset,lack material and pallet alarm, the operations are more humanity, the electric parts are provided by
well-know comapny to ensure the safety and stable performance, with more lower malfunction rate.
2. Utiliz advance pressure and vibration technology to form the block, the strenth and density of brick are higher.
3. The hydraulic systerm parts brought from Japan and Taiwan to make sure quality, working life is longer.
4. Swift speed arch breaking device can consumedly shorten the concrete material distributing time.
5. The control system has data setting device, the distributing and vibration time is resettable to meet
variuos material.
6. Adopt four guide pillar and super long-life weareable materials to ensure the high precision press of forming
mould and press head.
7. Multi-purposre and strong adaptability, by changing different mould, the machine can produce various wall
brick porous brick, color paver brick, grass brick and shielding-slope brick, etc.
8. Super strong welded profile steel frames structure provide long term stable and reliable oeration.
Technical specification
Outside Dimension (mm) |
3860x1800x3000 |
Operation Cycle (s) |
15~25 |
Main Machine Weight (T) |
7 |
Vibration Frequency (rpm) |
4300 |
Power Consumption (kw) |
37 |
Vibartion Force (kn) |
60 |
Pallet Dimension (mm) |
1050x550x30 |
Vibration Power (kw) |
15 |
Operation Quantity |
5 people |
Land Required |
4000m2 |
Productivity Capacity
Brick Size |
Blocks/mould |
Blocks/Hour |
Blcoks/8hurs |
Hollow Brick (400x200x200mm) |
4 |
580~960 |
4,600~7,600 |
Hollow Brick (400x150x200mm) |
6 |
860~1,440 |
6,900~11,500 |
Hollow Brick (400x100x200mm) |
9 |
1,300~2,160 |
10,400~17,200 |
Hollow Brick (390x190x190mm) |
5 |
720~1,200 |
5,800~9,600 |
Porous Brick (240x115x90mm) |
16 |
2,300~3,840 |
18,400~30,700 |
Solid Brick (240x53x125mm) |
32 |
5,760~7,680 |
46,000~61,400 |
Interlock Brick (225x112x60mm) |
16 |
2,300~3,840 |
18,400~30,700 |
Paver Brick (200x100x60mm) |
18 |
2,600~4,320 |
20,700~34,500 |
Details of solid cement block making machine

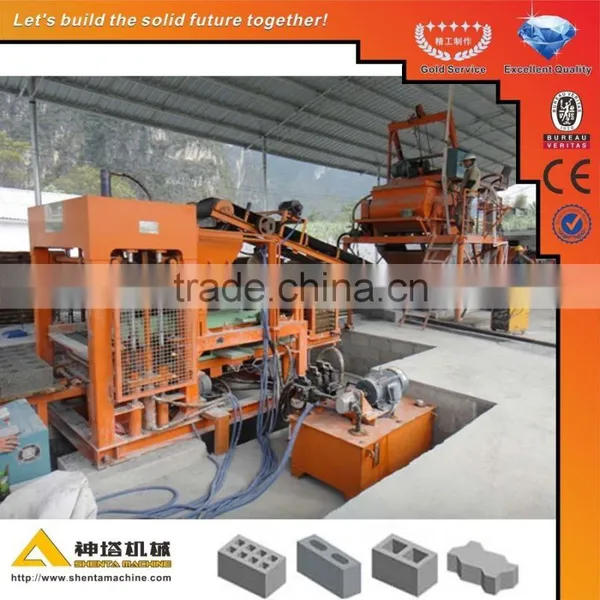

Machine production flow

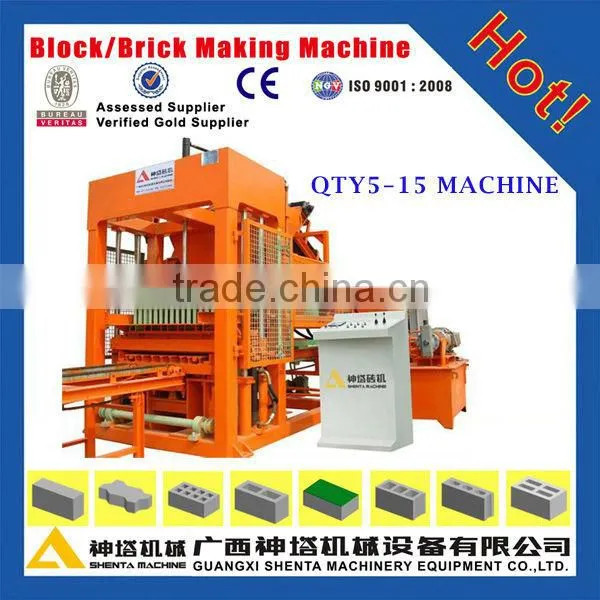

Main machine of solid cement block making machine

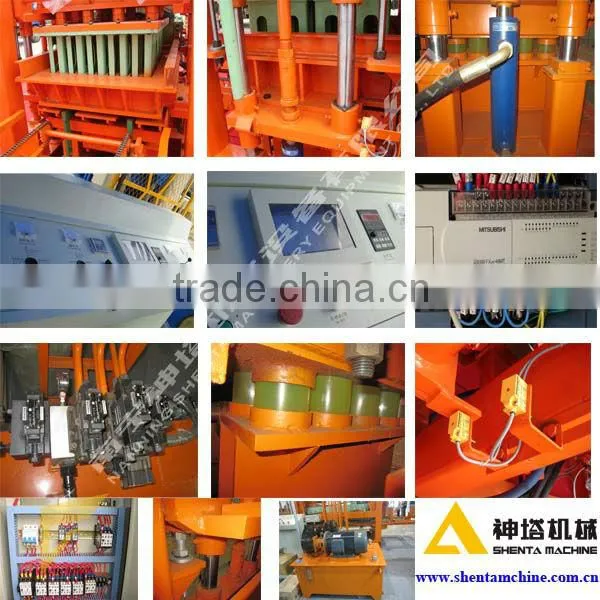

System and details of QTY5-15 block making machine

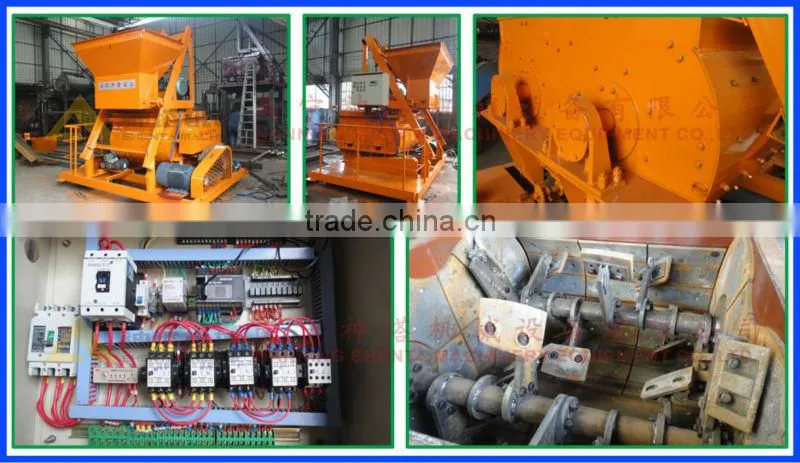

QTY5-15 block making machine - Mixer

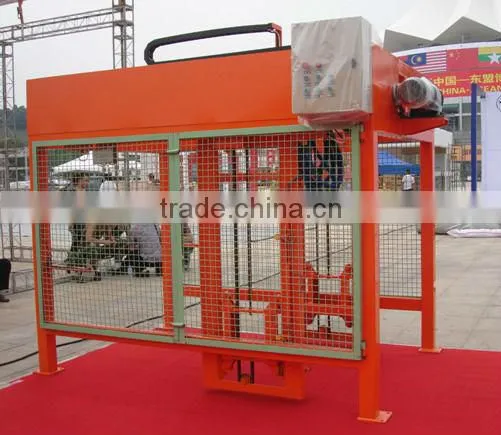

QTY5-15 block making machine - Automatic brick stacker
Brick Material
Many kinds of materials such as conrete, cement, sand, crushed stone, dust and fly coal as, cinder, gravel,
pertile, construction refuse, ect. can be used to make bricks and blocks.
Brick Production
Various types of concrete block, cement brick, solid brick, hollow bloxk, perforated brick, paving brick,
interlocking block, building brick, gerden and landscaping block, grass block, slopblock, etc. can be made.
Machine Working Site
Exhibition
Shenta Profile
Our Advantage:
→ We are brick and block making machine manufacturer with 40 years proffesional experience.
→ We provide large scale, medium scale and small scale brick and block making machine and production line.
→ We have more than 40,000 square meters production area with over 200workers.
→ Welcome to visit SHENTA factory.
Pre-sale:
Analyze the customer's nees and factory layout design, confirm scale of operation;
Select the fitting choice;
Provide perfect solution to set up a factory.
Sales:
Assist customer to set uo the brick factory;
Provide free service of installation and commissioning;
Provide training for operator and maintenance person.
After-sale:
Assist customer to establish production craft formula;
Provide the consultation all the time;
Supply moulds and parts all the time.
Welcome to inquire more information of solid cement block making machine
Your inquiry will be highly appreciated.
