Specifications

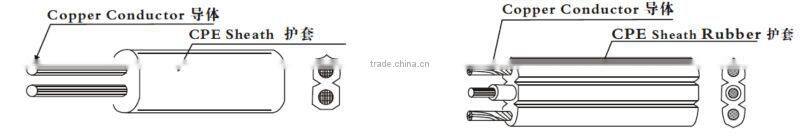

American UL HPN-R copper conductor rubber cable HPN-R1. Rubber sheathed
2. UL approved
3. Rating: 300V
4. Color: White
American UL HPN-R copper conductor rubber cable HPN-R
1. Rubber sheathed
2. UL approved
3. Rating: 300V 105°c
4. Color: Black
| Type | No.of conductor |
Conductor
|
Insulation thickness (mm) |
Sheath thickness (mm) |
Overal diameter (mm) |
Max Conductor resistance at 20°C (Ω/km) |
||
| Normal Area (mm²) |
Construction (No. /mm) |
|||||||
|
HPN-R
|
2 | 18 | 48/0.15 | 1.14 | 3.45±0.05X6.95±0.1 | 22.4 | ||
| 16 | 42/0.20 | 1.14 | 3.75±0.05X7.55±0.1 | 14.1 | ||||
| 14 | 66/0.20 | 1.52 | 4.8±0.05X9.6±0.1 | 8.88 | ||||
| HPN | 2 | 18 | 48/0.15 | 1.14 | 3.45±0.05X6.95±0.1 | 22.4 | ||
| 16 | 42/0.20 | 1.14 | 3.75±0.05X7.55±0.1 | 14.1 | ||||
| 14 | 66/0.20 | 1.52 | 4.8±0.05X9.6±0.1 | 8.88 | ||||
| 3 | 18 | 48/0.15 | 1.14 | 0.38 | 3.7±0.05X9.5±0.1 | 22.4 | ||
| 16 | 42/0.20 | 1.14 | 0.38 | 4.0±0.05X10.3±0.1 | 14.1 | |||
| 14 | 66/0.20 | 1.52 | 0.38 | 4.8±0.05X12±0.1 | 8.88 | |||

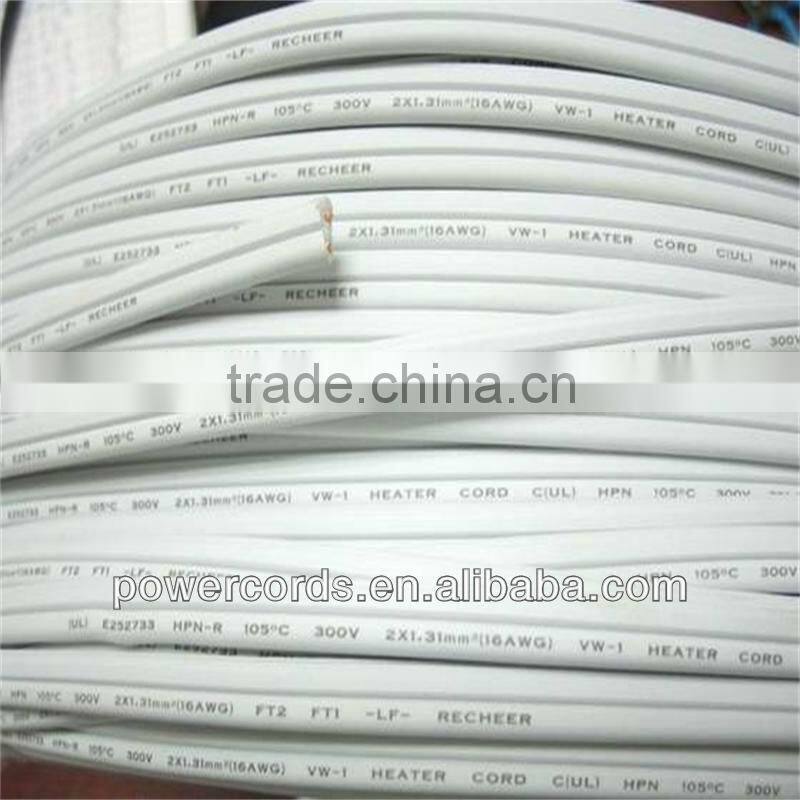

Product Picture:
Factory Picture:
Certificated Approval:
CCC, UL/CUL,CEE,VDE,GS,NF,BS,CSA,PSE,SAA,SABS,SEV,NBR,EK,KEMA and so on.
QC Team :
A QC team with more than 20 professional and technical personnel. To ensure 100% products checking.
Material: Strictly control of material using, meet international requested standards.
Semi-finished products inspection: Product inspection before 100% finished.
Production line test: With work team or data engineer who will inspect machines and lines at fixed period.
Finished Product Inspection: Quality and property test before products are packed and loaded.
