Specifications
UL SJTW 14AWGX3C power cord1. PVC sheathed
2. UL approved
3. 300V
4. 14AWGX3C
UL SJTW 14AWGX3C power cord
1. PVC sheathed
2. UL approved
3. Rating: 300V 60°c -105°c
4. Color: Black
5. 14AWGX3C
| Type | No.of conductor |
Conductor
|
Insulation thickness (mm) |
Sheath thickness (mm) |
Overal diameter (mm) |
Max Conductor resistance at 20°C (Ω/km)
|
||
| Normal Area (mm²) |
Construction (No. /mm) |
|||||||
|
SJT
SJTO
SJTOO
SJTOW
SJTOOW
SJTW |
2 | 18 | 47/0.15 | 0.76 | 0.76 | 7.2±0.1 |
22.4 | |
| 17 | 59/0.15 | 0.76 | 0.76 | 7.4±0.1 |
17.8 | |||
| 16 | 74/0.15 | 0.76 | 0.76 | 7.85±0.1 |
14.1 | |||
| 15 | 48/0.21 | 0.76 | 0.76 | 8.3±0.1 |
11.2 | |||
| 14 | 66/0.20 | 0.76 | 0.76 | 8.6±0.1 |
8.88 | |||
| 12 | 67/0.25 | 0.76 | 1.14 | 9.7±0.1 |
5.58 | |||
| 3 | 18 | 47/0.15 | 0.76 | 0.76 | 7.7±0.1 | 22.4 | ||
| 17 | 59/0.15 | 0.76 | 0.76 | 8.0±0.1 | 17.8 | |||
| 16 | 74/0.15 | 0.76 | 0.76 | 8.35±0.1 | 14.1 | |||
| 15 | 48/0.21 | 0.76 | 0.76 | 9.0±0.1 | 11.2 | |||
| 14 | 66/0.20 | 0.76 | 0.76 | 9.2±0.1 | 8.88 | |||
| 12 | 67/0.25 | 0.76 | 1.14 | 10.3±0.15 | 5.58 | |||
| 4 | 18 | 47/0.15 | 0.76 | 0.76 | 8.35±0.1 | 22.4 | ||
| 17 | 59/0.15 | 0.76 | 0.76 | 8.75±0.1 | 17.8 | |||
| 16 | 74/0.15 | 0.76 | 0.76 | 9.0±0.1 | 14.1 | |||
| 15 | 48/0.21 | 0.76 | 0.76 | 9.6±0.1 | 11.2 | |||
| 14 | 66/0.20 | 0.76 | 0.76 | 10±0.1 | 8.88 | |||
| 12 | 67/0.25 | 0.76 | 1.14 | 12.2±0.2 | 5.58 | |||
| 5 | 18 | 47/0.15 | 0.76 | 0.76 | 9.05±0.1 | 22.4 | ||
| 17 | 59/0.15 | 0.76 | 0.76 | 9.7±0.1 | 17.8 | |||
| 16 | 74/0.15 | 0.76 | 0.76 | 10.0±0.1 | 14.1 | |||
| 15 | 48/0.21 | 0.76 | 0.76 | 11.2±0.1 | 11.2 | |||
| 14 | 66/0.20 | 0.76 | 0.76 | 11.75±0.15 | 8.88 | |||
| 12 | 67/0.25 | 0.76 | 1.14 | 13.3±0.15 | 5.58 | |||

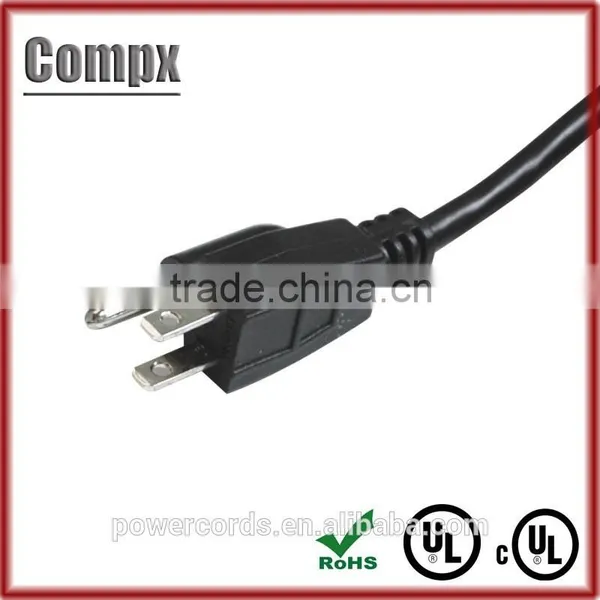

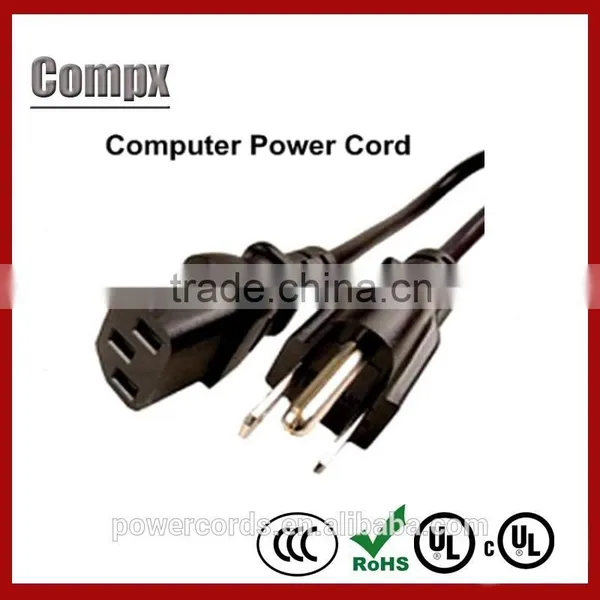

Product Picture:
Factory Picture:
Certificated Approval:
CCC, UL/CUL,CEE,VDE,GS,NF,BS,CSA,PSE,SAA,SABS,SEV,NBR,EK,KEMA and so on.
QC Team :
A QC team with more than 20 professional and technical personnel. To ensure 100% products checking.
Material: Strictly control of material using, meet international requested standards.
Semi-finished products inspection: Product inspection before 100% finished.
Production line test: With work team or data engineer who will inspect machines and lines at fixed period.
Finished Product Inspection: Quality and property test before products are packed and loaded.
