Specifications

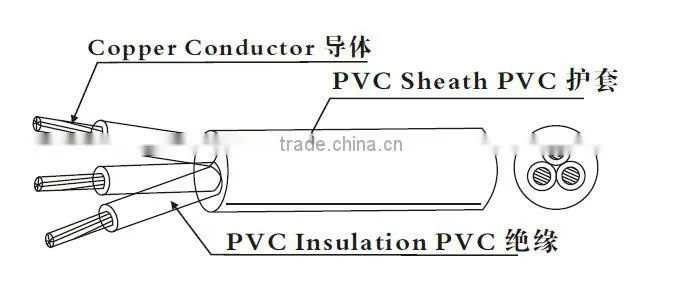

UL SJTW 14AWGX3C PVC cord copper cable1. PVC sheathed
2. UL approved
3. 300V
4. 14AWGX3C
UL SJTW 16AWGX3C PVC cord copper cable
1. PVC sheathed
2. UL approved
3. Rating: 300V 60°c -105°c
4. Color: Black
5. 14AWGX3C
| Type | No.of conductor |
Conductor
|
Insulation thickness (mm) |
Sheath thickness (mm) |
Overal diameter (mm) |
Max Conductor resistance at 20°C (Ω/km)
|
||
| Normal Area (mm²) |
Construction (No. /mm) |
|||||||
|
SJT
SJTO
SJTOO
SJTOW
SJTOOW
SJTW |
2 | 18 | 47/0.15 | 0.76 | 0.76 | 7.2±0.1 |
22.4 | |
| 17 | 59/0.15 | 0.76 | 0.76 | 7.4±0.1 |
17.8 | |||
| 16 | 74/0.15 | 0.76 | 0.76 | 7.85±0.1 |
14.1 | |||
| 15 | 48/0.21 | 0.76 | 0.76 | 8.3±0.1 |
11.2 | |||
| 14 | 66/0.20 | 0.76 | 0.76 | 8.6±0.1 |
8.88 | |||
| 12 | 67/0.25 | 0.76 | 1.14 | 9.7±0.1 |
5.58 | |||
| 3 | 18 | 47/0.15 | 0.76 | 0.76 | 7.7±0.1 | 22.4 | ||
| 17 | 59/0.15 | 0.76 | 0.76 | 8.0±0.1 | 17.8 | |||
| 16 | 74/0.15 | 0.76 | 0.76 | 8.35±0.1 | 14.1 | |||
| 15 | 48/0.21 | 0.76 | 0.76 | 9.0±0.1 | 11.2 | |||
| 14 | 66/0.20 | 0.76 | 0.76 | 9.2±0.1 | 8.88 | |||
| 12 | 67/0.25 | 0.76 | 1.14 | 10.3±0.15 | 5.58 | |||
| 4 | 18 | 47/0.15 | 0.76 | 0.76 | 8.35±0.1 | 22.4 | ||
| 17 | 59/0.15 | 0.76 | 0.76 | 8.75±0.1 | 17.8 | |||
| 16 | 74/0.15 | 0.76 | 0.76 | 9.0±0.1 | 14.1 | |||
| 15 | 48/0.21 | 0.76 | 0.76 | 9.6±0.1 | 11.2 | |||
| 14 | 66/0.20 | 0.76 | 0.76 | 10±0.1 | 8.88 | |||
| 12 | 67/0.25 | 0.76 | 1.14 | 12.2±0.2 | 5.58 | |||
| 5 | 18 | 47/0.15 | 0.76 | 0.76 | 9.05±0.1 | 22.4 | ||
| 17 | 59/0.15 | 0.76 | 0.76 | 9.7±0.1 | 17.8 | |||
| 16 | 74/0.15 | 0.76 | 0.76 | 10.0±0.1 | 14.1 | |||
| 15 | 48/0.21 | 0.76 | 0.76 | 11.2±0.1 | 11.2 | |||
| 14 | 66/0.20 | 0.76 | 0.76 | 11.75±0.15 | 8.88 | |||
| 12 | 67/0.25 | 0.76 | 1.14 | 13.3±0.15 | 5.58 | |||
Product Picture:

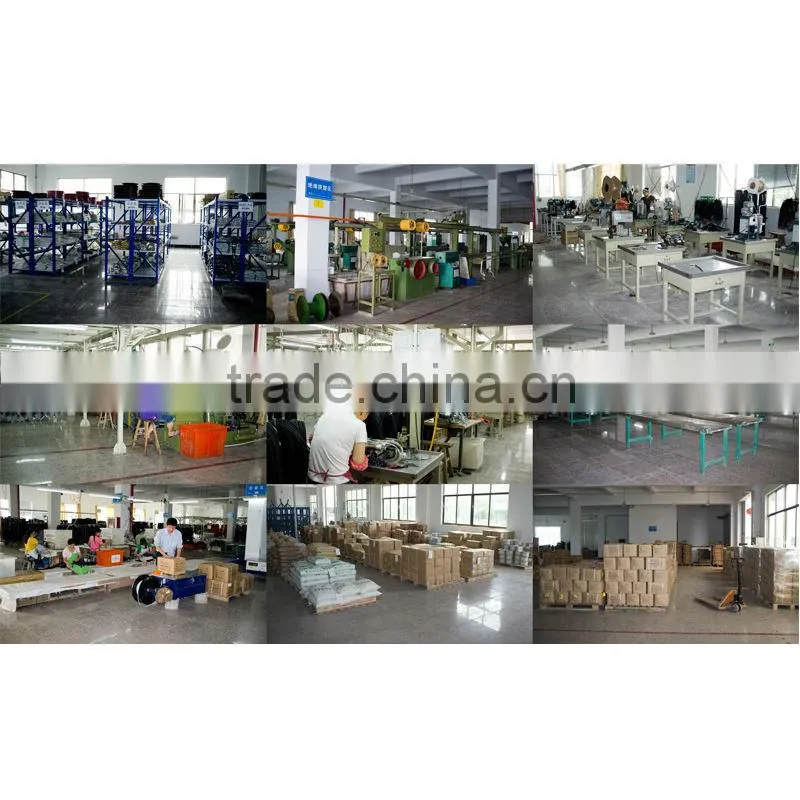

Factory Picture:
Certificated Approval:
CCC, UL/CUL,CEE,VDE,GS,NF,BS,CSA,PSE,SAA,SABS,SEV,NBR,EK,KEMA and so on.
QC Team :
A QC team with more than 20 professional and technical personnel. To ensure 100% products checking.
Material: Strictly control of material using, meet international requested standards.
Semi-finished products inspection: Product inspection before 100% finished.
Production line test: With work team or data engineer who will inspect machines and lines at fixed period.
Finished Product Inspection: Quality and property test before products are packed and loaded.
Market:
Contact:
We will reply your email within 24 hours.
You can call us at any time if there is any question, thanks.
If you want to know more information, pls do not hesitate to contact us!
Email: tina(at)
