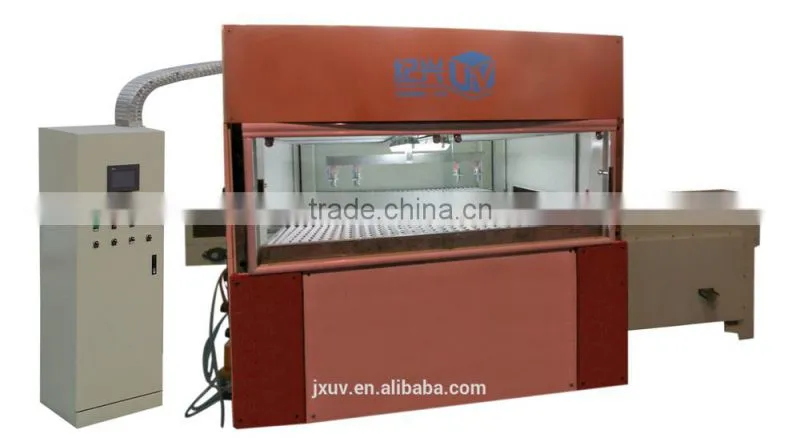

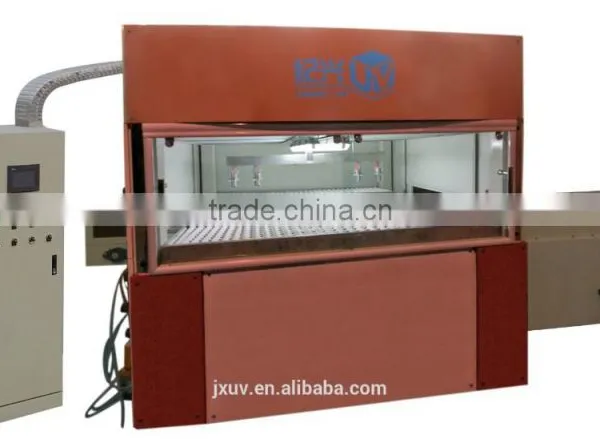

Kitchen Cabinet Door Automatic Spraying Machine/MDF Plywood Timber Painting Machine
JXSV-DAS-750
Features:
1.Door Spray Machine Closed spraying booth
2.Big plate spray machine High spraying quality
3.Friendly environment
4.Feeding speed can be adjusted by Frequency control

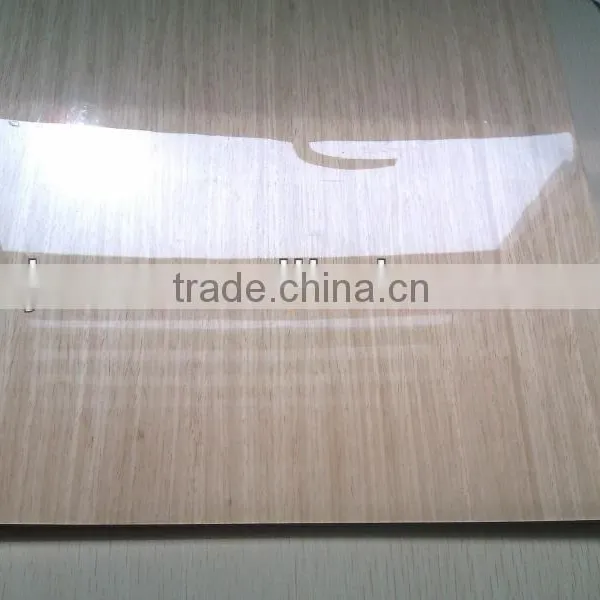

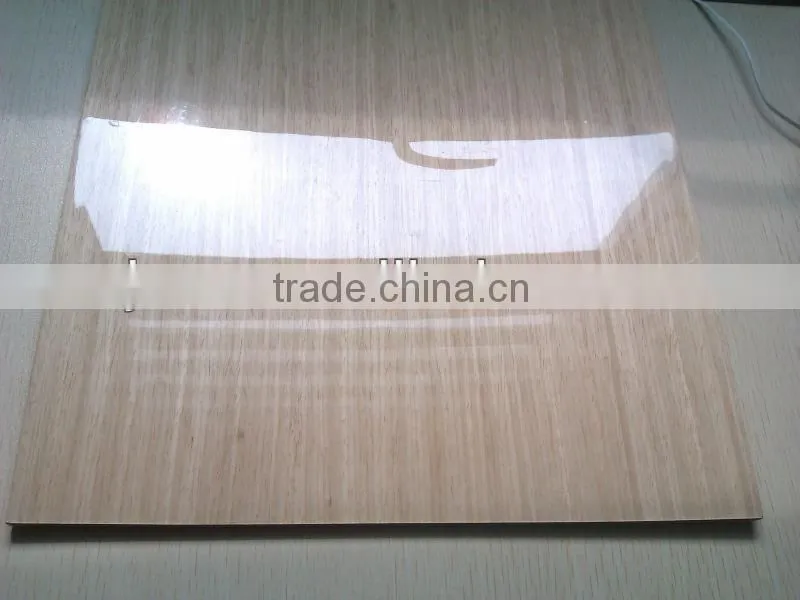

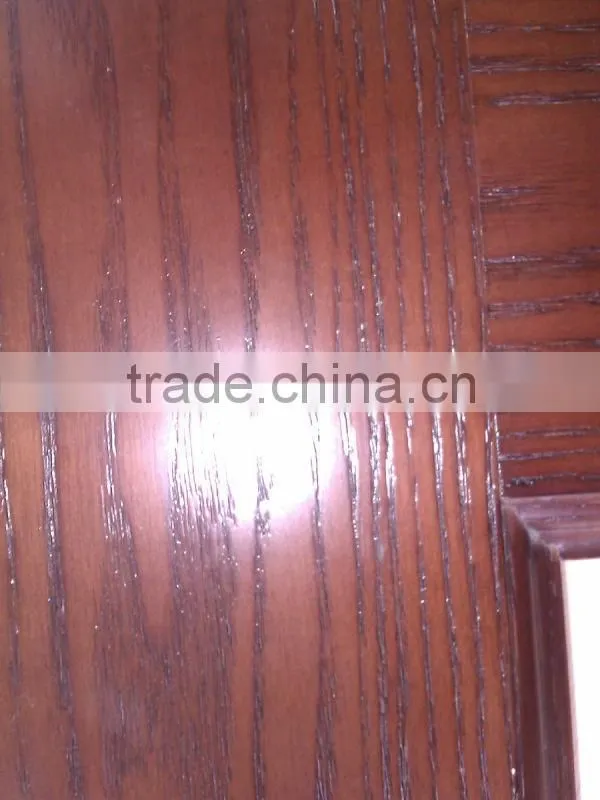

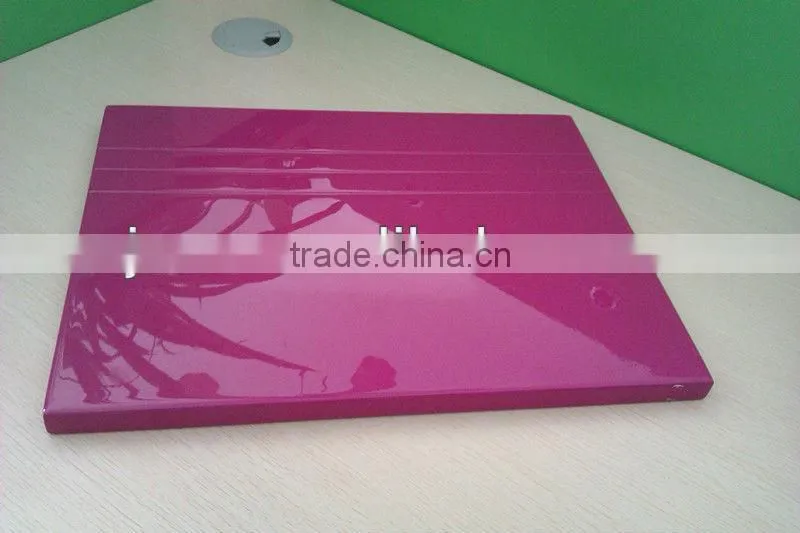

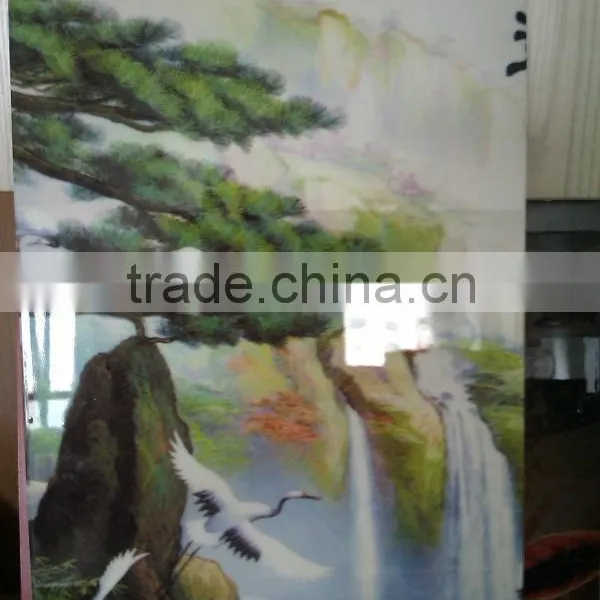

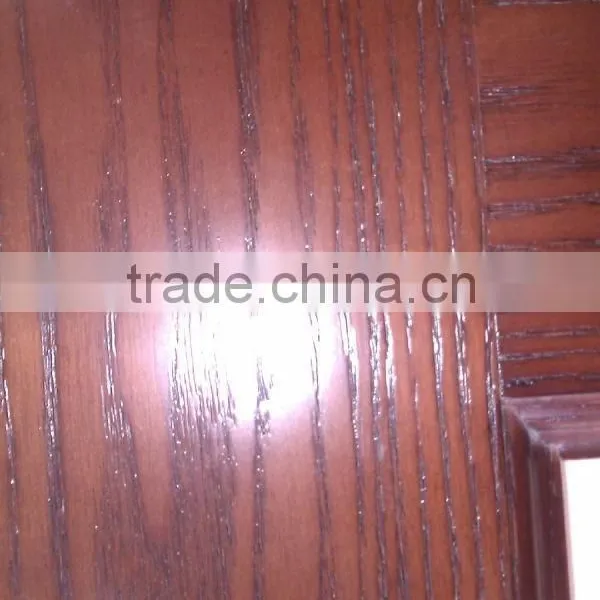

Suit for continuing surface UV/PU/NC/AC/water-based paint spraying according to panel work piece, such as pannel funiture, timber door, cabinet door, art work, decor board and glass.
Profile Spraying machine
1. It has high automatization;
2. Symmetrical spraying surface; accurate control; high producing efficiency and high cost performance.
3. It is suitable for UV, PU, PE, NC, etc.
4. It has UV lacquer reclaiming equipment to reduce waste. The filtering of air outlet system can avoide environmental pollution.
5. It can be used alone and also can be equipped with line drier to make the work piece dried as soon as spraying finished
Model: |
JXSV-SAS-750 |
Total power(kw): |
12.1 |
Effective working width(mm): |
150-750 |
Effective processing length(mm): |
300-2000 |
Effective processing thickness(mm): |
3-50 |
Oil drive: |
Taiwan Prona Pressure Tank |
Air pressure(Mpa): |
0.4-0.6 |
Servo system(kw): |
0.75 Taiwan Delta |
PLC: |
Taiwan Delta C6OR FP – X |
Gun brand: |
IWATA spray gun |
Gun caliber(mm): |
1.3 |
Number of blast gun: |
6 |
Import and export fan power(kw): |
Import: 1.5 Export: 2.2 |
Import and export fan brand: |
Kyushu HP(Hewlett Packard) |
Delivery(finish)speed(m/min): |
0 ~ 5 |
Delivery ways: |
Belt type |
Paint types: |
PU, UV, NC, AC, water-based paint,etc |
Control system: |
Optical sensors |
Tounch screen: |
MT - 610i (exterior: 280 x 210 x 50) Taiwan Delta |
Light curtain: |
0.8 m measuring light wheelbase 10mm |
Guide rail: |
Taiwan HGW45HC - 2300 2 strip |
Machine Dimension |
4200 x 3500 x 2030 mm |
Machine Weight |
2100 kg |
Shenzhen Jixingyuan Technology Joint-Stock Co., Ltd
Established in 2003, Shenzhen Jixingyuan Technology Joint-Stock Co., Ltd. is engaged in the production, sale and service of UV surface&edge coating equipments, such as Roller coaters, UV curing equipments, Curtain coaters, Spraying equipments, Robot series and so on.
Jixingyuan is currently the fastest growing painting equipmet company in China market. it has a good reputation and ambitious development goals. Also own an excellent team, keep learning experience of domestic and oversea. Struggle for becoming the leading enterprise in the field of painting equipment.
