Wireless Vehicle Detector from Rosim ITS Technology Co.,Ltd

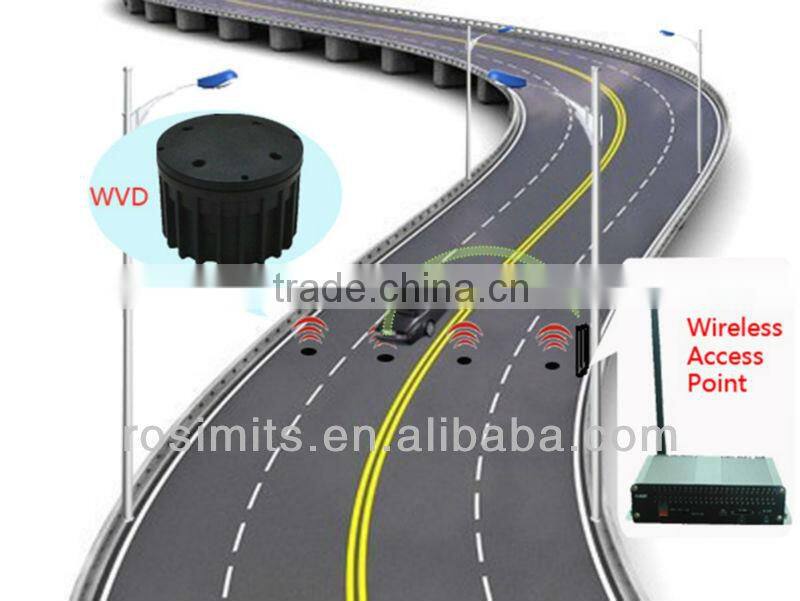

Wireless Vehicle Detector is designed for pursuit of high efficiency and low cost ITS traffic application systems . Flexible, dependable, low-cost, the WVD wireless vehicle detection system uses magneto-resistive wireless sensors to detect vehicle presence and movement. Virtually maintenance free, our detectors install in minutes, and deploy in few hours, transmitting real-time data for a variety of traffic management applications.
Parameter
| Size | Diameter116mm/ H98mm |
| Battery life | 10 years |
| Resistence to pressure | 5 tons |
| Protection level | IP68 |
| Communication distance | 150m |
| Operation condition | imprevious to weather |
| Accuracy | >95% |
| Communication | Bidirectional communication |
| Installation tool | Fixed or handheid diamond |
| ISM | 433MHz/2.4GHz |
Installation
1. 5 min each lane
2. Pavement drilling, no slot and cutting
3. Fixed or handheid diamond only needed
4. Almost no damage to road

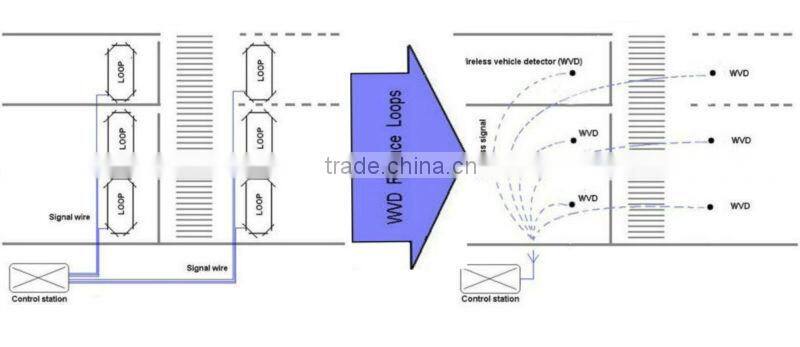

Installation comparing with loops
Advantage
3. Almost no damage to road comparing to inductive loop.There’s no need to cut slots on the road surface and place cables or wires as the installation of loops, but only a tiny hole with the size Φ 120/H 100 mm, which makes WVDs become the most suitable vehicle detecting solution on the city high-way and bridges;
4. Zero mainenance for sensor and road in 10 years.With high standard water proof and anti-press characteristics, WVD wireless vehicle detector can even be used in the damaged or distorted roads where loops cannot be installed;
5. Higher efficiency and reliability to other detection methods;
6. Easy to maintain. Unlike the loops that are easily to be damaged but difficultly to be repaired, WVD wireless vehicle detector supports firmware updating over the air. No need to re-cut the slots, no more materials needed, and all of what you need is to take almost 10 minutes for the devices wireless updating;
7. Low operation consuming. Due to the ultra-low power design and battery supply solution, WVD wireless vehicle detector’s consumed power is very lower than any other detectors like loops, video, micro-wave etc. in the market. This appears more and more significantly to our environments.
Application
