Specifications

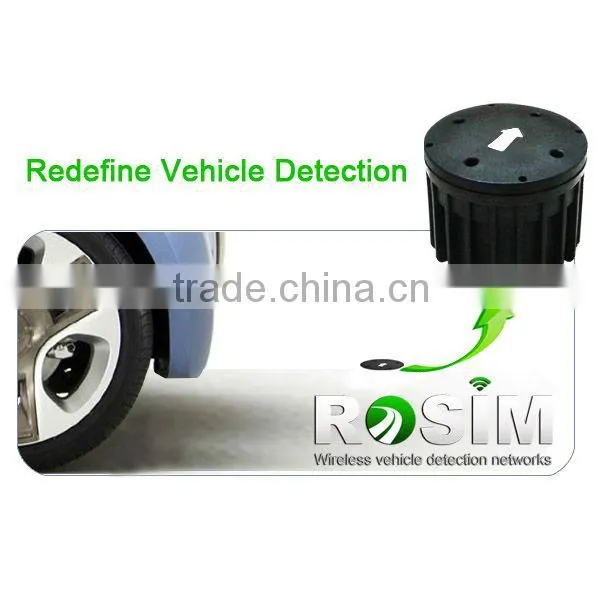

Redefine Wireless Vehicle Detection Magnetic SensorReplace loops
Easy to install/maintain
Life Span:10years
Update:OTA
Redefine Wireless Vehicle Detection Magnetic Sensor from Rosim ITS Technology Co., Ltd
1. Redefine Wireless Vehicle Detection Magnetic Sensor from Rosim
Rosim ITS focuses on the innovation and manufacture of Low Cost Wireless Vehicle Detection Magnetometer Sensor solution and real-time traffic information collection system. By virtue of the application of advanced sensing technology, wireless communication technology, and many years’ experiences in this field, Rosim ITS is successes in creating the WVD series wireless vehicle detector products and WAP series wireless access point, which build up a real-time wireless vehicle detection solution and traffic information monitoring system. In the past 5 more years, Rosim wireless vehicle detecting products had successfully replaced loops to monitor vehicles and the relative velocity, occupy rate and traffic flow in many projects of artery, freeway and intersection applications, for example in traffic flow monitoring system, red signal and speed enforcement, traffic lights optimization, traffic guide and traveler information systems, adaptive traffic signal control, arterial performance measurement, etc..
2. Principle & Technology
By capture the tiny change of magnetism caused by the passing vehicle, WVDs (Wireless Vehicle Detectors) in the Wireless vehicle detection system calculate the vehicle velocity, length, type and occupy rate rapidly, and then send these information to the WAPs (Wireless Access Points), which will receive all the on line WVDs’ information and transmit these data to the user systems through RS-232/485, Internet, GPRS, etc..
3. Products & Parameters
4. Advantages
a) Install fast. It is only almost 6 minutes that is needed to install one WVD detector in the road, after installation, the traffic control could be released immediately;
b) Work all-weather. Bad weather for example heavy fog, snow and rain makes no difference;
c) No damage to the road. There’s no need to cut slots on the road surface and place cables or wires as the installation of loops, but only a tiny hole with the size Φ 120/H 100 mm, which makes WVDs become the most suitable vehicle detecting solution on the city high-way and bridges;
d) About 10 years long life span. With high standard water proof and anti-press characteristics, WVD wireless vehicle detector can even be used in the damaged or distorted roads where loops cannot be installed.
e) Cost saving.
f) Easy to maintain. Unlike the loops that are easily to be damaged but difficultly to be repaired, WVD wireless vehicle detector supports firmware updating over the air. No need to re-cut the slots, no more materials needed, and all of what you need is to take almost 10 minutes for the devices wireless updating;
g) Low operation consuming. Due to the ultra-low power design and battery supply solution, WVD wireless vehicle detector’s consumed power is very lower than any other detectors like loops, video, micro-wave etc. in the market. This appears more and more significantly to our environments;
h) Replace loops seamlessly. The same installation position and compatible output signals makes it easily and simply to replace loops in your system directly.
5. Features
| Wireless vehicle detection system | |
| Principle & Technology | Magnetic detection |
| Communication | Wireless 433MHz/2.4GHz |
| Installation method | Drill a small hole on the road surface |
| Tools for installing | General driller |
| Workers for installing | Two common workers |
| Process of installation | Set road-blocks,drill holes,fill in with cement,put detector in,disable traffic control |
| Installig time for single channel | 6 minutes |
| Traffic control | Traffic controlling last 7-8 minutes |
| Slot size for installation & signal wire | No slot |
| Size of installing holes | Diameter 12cm,depth 10cm |
| Damage to road | Almost no damage |
| Detecting range | Whole channel |
| Suitable vehicles | Electric bike, Motorcycle, Car, Microbus, Trailer, Truck, other special vehicles etc.. |
| Suitable roads | Freeway, Artery, Overhead road, Bridge, City road, Town road |
| Waterproof | Any case |
| Applicability to heavy vehicles | Nice |
| Adaptability to weather | All weather |
| Product size | A column of diameter 116mm, height90mm |
| Power supply and consuming | Battery, low power consuming |
| System components | WVD and WAP |
| Average lifespan | 8-10years |
| Maintenance method | Convenient and flexible maintenance, Wireless update |
| Time for maintenance | Less than 10minutes |
| Detecting index | Vehicle existence, velocity, length, traffic rate |
| Apply fields | Traffic signal control, Speed and redlight enforcement, Entrance management(ICM), Traffic guidence. |
| Integration interface | OC gate outputs, compatible loops system |
6. Installation
In the application of traffic signal controlling, traffic flow monitoring, traffic guiding, speed enforcement and red light enforcement, the installing place of the wireless vehicle detector (WVD) is the same as loops. The installation and signal connection of wireless access point (WAP) is compatible to loop controller, see following figure of wireless vehicle detection system.
Installation comparing with loops
7. Applications
1) Traffic Flow Monitoring System
2) Travler Information System
3) Red light and Speed Enforcement
4) Adaptive Traffic Signal Control System
5) Corridor Management
8. Maintenance and Support
Rosim ITS provides our customers high quality wireless vehicle detecting products and solutions, all the products support wireless updating, which makes it easily to maintain. Also, Rosim ITS provides 24 hours on-line supports.
