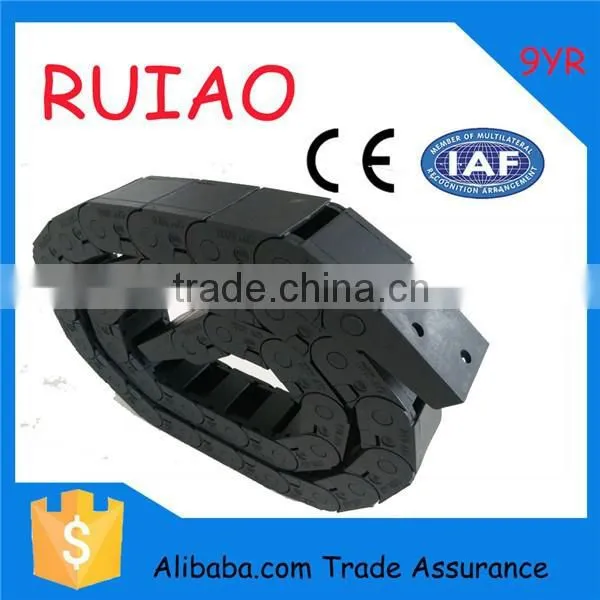

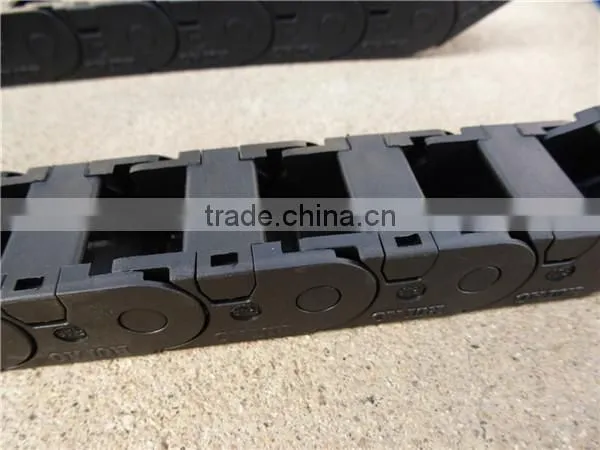

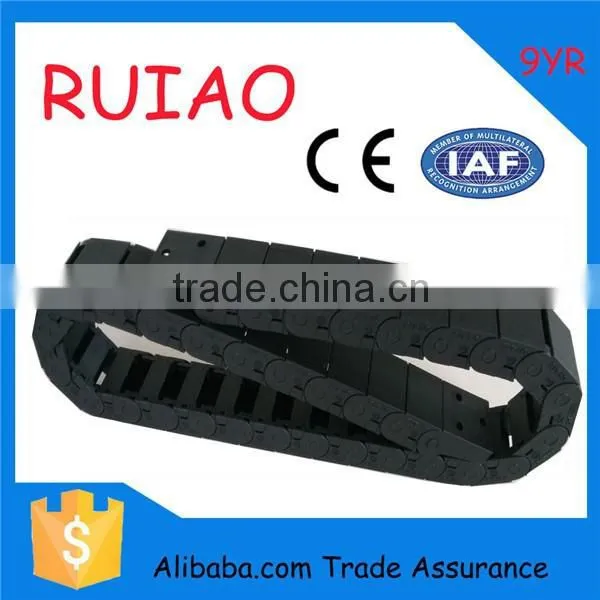

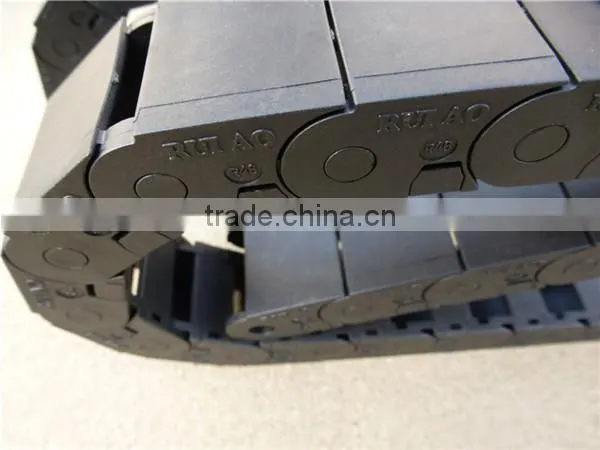

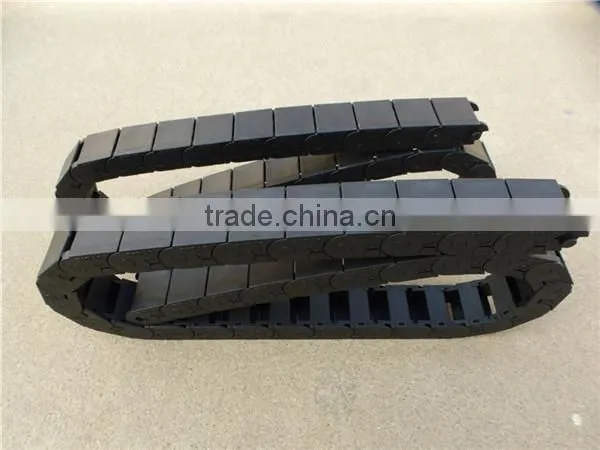

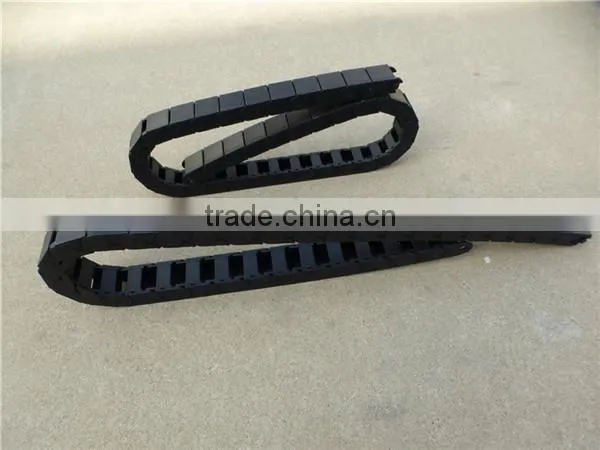

RUIAO various nylon P66 material cable chain with CE approved
1.The cable chain can be used for such locations where reciprocating motions are required so that internally installed cables ,oil pipes ,gas tubes and water tubes can be dragged an protected .
2.The appearance of the flexible cable channel looks like the crawler of a tank consisting of certain number of joints,they are freely turned roud.
3.Spacers are available for use .
4.Material :reinforced nylon
5.resistance :oil and salt resistance
6.service :under normal conditions,5 million reciprocating motions can be reached
some model specification can be offered, according to your requirement ,some datas can be different
Principle for selecting cable chain
1. inner height :take the most thick piece of the internally installed cable ,oil pipe,gas pipe or water pipe as the reference height plus 10%of the space height at least as the inner height HI.if overlapping ,take the overlapped height as the actual height .
2. inner width :take the sum of the outside diameter of the thicker cables ,oil pipe,gas pipe or water pipe as the reference of the inner width and leave at least 10% of the space as a margin
3. radius of a bend :take the biggest radius of a bend of a cable ,oil pipe,gas pipe or water pipe as a reference value and leave 10%of the space as a margin
Type |
Diameter(mm) |
Bending radius |
Pitch |
Non-support length |
Type |
|
TP15.15 |
15*15 |
23*26 |
28/38/48 |
30.2 |
1300 |
the top cover could be open |
TP15.20 |
15*20 |
23*31 |
30.2 |
1300 |
||
TP15.30 |
15*30 |
23*43 |
30.2 |
1300 |
||
TP15.40 |
15*40 |
23*53 |
30.2 |
1300 |
||
TP15.50 |
15*50 |
23*63 |
30.2 |
1300 |
||
TP18.18 |
18*18 |
23*31 |
28/38/48 |
30 |
1500 |
the low cover could be open |
TP18.25 |
18*25 |
23*38 |
30 |
1500 |
||
TP18.35 |
18*35 |
23*47 |
30 |
1500 |
||
TP18.40 |
18*40 |
23*53 |
30 |
1500 |
||
TP18.50 |
18*50 |
23*63 |
30 |
1500 |
||
you can ask for any detail pictures about our products,these are some normal ones.
your wise choice of RUIAO,more than200 kinds of types can be offered,thank you for choosing,here,you can get any machine tools within 24hours,just believe me~
any accessory should be carefully checked before assemble,any finished products should be perfect before packed

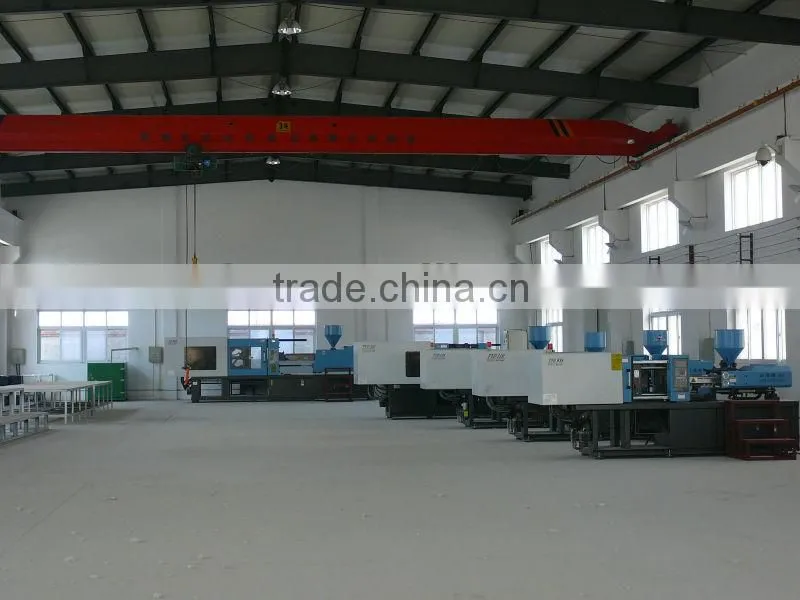

located at this booming industial estate,we have the advantage to massive manufacture ,welcome to visit our plant, RUIAO is just here waiting for you~
HEBEI RUIAO MACHINE TOOL ACCESSORIES PRODUCING CO,.LTD
Zhifangtou Industrial Park,Cangzhou City,Hebei Province, China
Tel:+86-3174958927
Fax:+86-3174958913
Skype: pear.ruiao
QQ:1826839662
Website :
Customer questions:
1. Whether raw materials is guaranteed?
reply: we have stable supplier for our raw materials about decades, performance test reports can be provided if necessary
2. How to determine the model ?
reply: we have professional and technical personnels to help you match the optimal strategy .
3. What is the life of the product?
reply: with the high-performance raw materials and high-end processing machinery,we ensure the lifetime will be more than three years in the normal use.
4.how about the salesman service ?
reply: we have the Service Department,Manager zhao will be ready for you in 24h everyday,QQ:1826839662 T:+8613703170992 /+863174958927
5. Are you the real manufacturer ?
reply: our plant is located in Zhifangtou Industrial Estate, here is the gathering place for processing enterprises,welcome to HEBEI RUIAO!
Have any questions, please contact the official customer service official~~~
