RUIAO nylon-alumnium load-bearing flexible plastic cable chain
some model specification can be offered, according to your requirement ,some datas can be different
This series cable chain ,which is made of imported material like kuibyshevazot .it has good performace for different level of temperature and strong toughness .
Characteristics and Applications of cable chain
1. Thecable chain can be used for such locations where repciprocating motions are required so that internally installed cables,oil pipes,gas tubes and water tubes can be draged and protected.
2. Each joint of the chain can be opened up so as to facilitate repairs and maintenance. It gives low noises and is of antiwearing while running. It can also be operated under high speed.
3. The cable chains have already extensively used in digital-controlled machine tools,electronic equipement,machinery for stone industry,machinery for glass industry,machinery for doors and windows,moulding injectors,manipulators,lifting and transport equipment and automatic warehouses,etc.
| TYPE | inside height | outside height | inside width | outside width |
| TLZ070 | 40mm | 69mm | 80-400mm | 118-438mm |
| TLZ080 | 47mm | 79mm | 80-400mm | 121-441mm |
| TLZ100 | 70.5mm | 106mm | 100-600mm | 154-654mm |
| TLZ150 | 111mm | 160mm | 200-800mm | 263-863mm |
receive the test .RUIAO is powerful enough
you can ask for any detail pictures about our products,these are some normal ones.

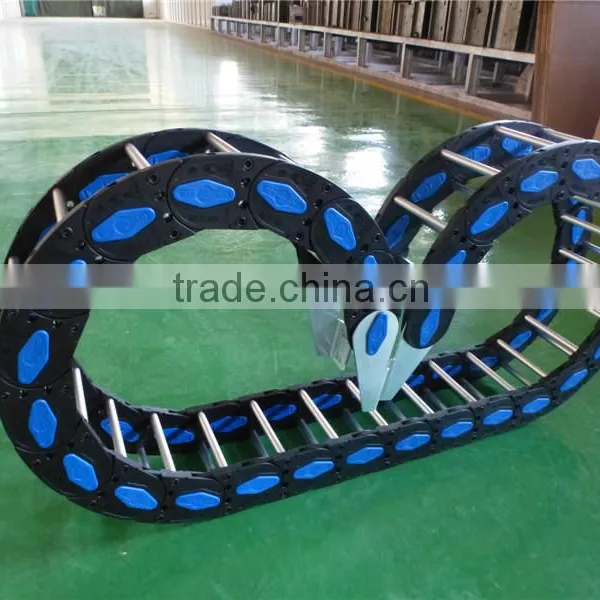

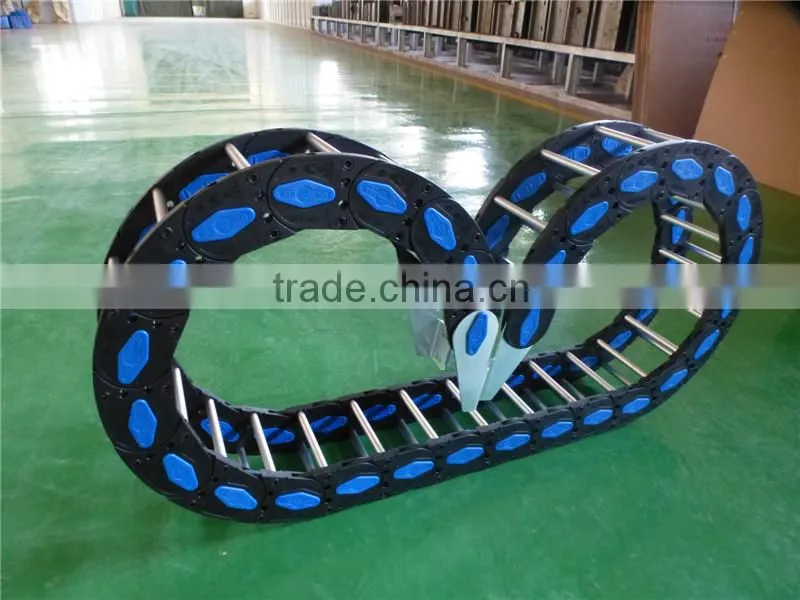

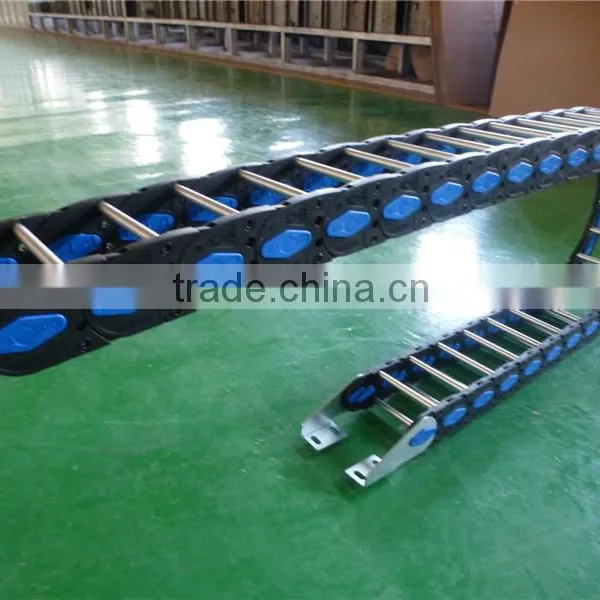

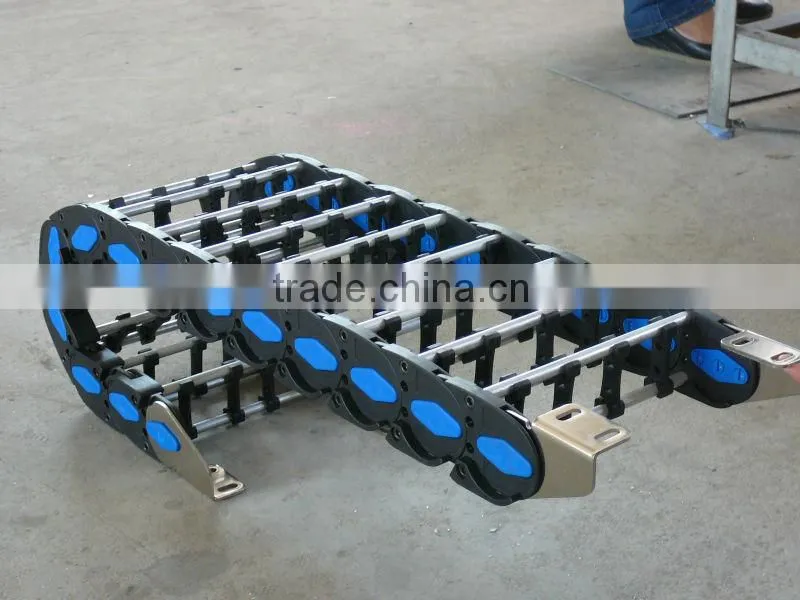

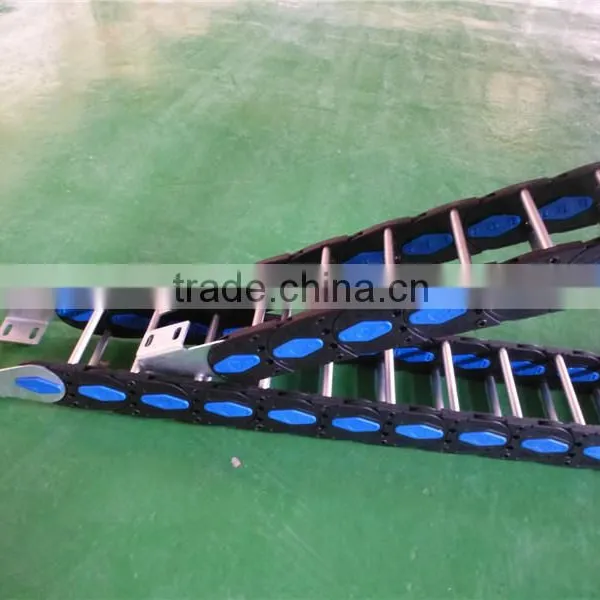

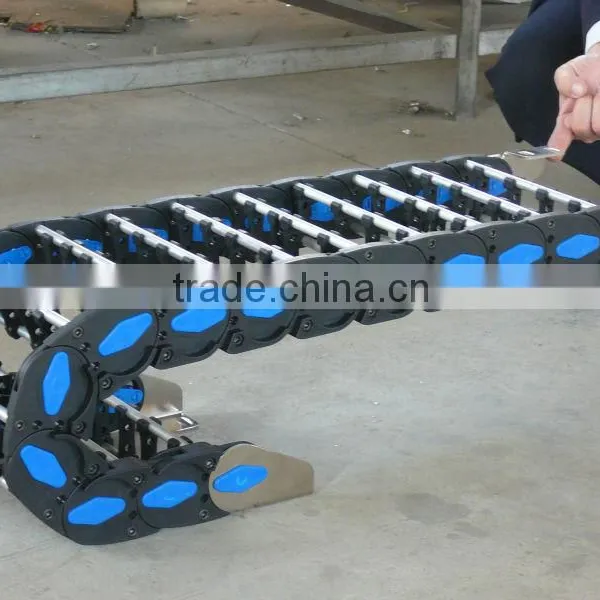

RUIAO flexible CNC plastic cable chain
RUIAO flexible CNC plastic cable chain
RUIAO flexible CNC plastic cable chain
RUIAO flexible CNC plastic cable chain
RUIAO flexible CNC plastic cable chain
Principle for selecting RUIAO flexible CNC plastic cable chain
1. inner height of the cable chain
2. outside height of the cable chain
3.inner width of the cable chain
4.outside width of the cable chain
5.bending radius of the cable chain
6. total length of the cable chain
Installation for RUIAO flexible CNC plastic cable chain
Put a screw driver vertically into the opening hole at both ends of the cover and then open the cover .put the drag chain for cables and oil pipes according to the instructions provided .put the cover back .note that the fixed end and the moving end of a cable should be fixed by using a tension device.
when used in a long sliding service ,it is recommended to use a guiding grove,please ask our technical personnel about the usage of the guiding grove.
Basic parameters of RUIAO flexible CNC plastic cable chain
Material:reinforced nylon. It can stand with high pressure and has good tensile strength,toughness and elasticity,wearing and falmable resistance
Resistances:It is oil and salt resistant.
operating speed and acceleration :Max.operating speed is 5m/sec.and max.acceeleration is 5m/sec.(specfic speed and acceleration depends on specific situation).
Service life: Under normal conditions,5million reciprocating motions can be reached (which is also related to the operating conditions.)

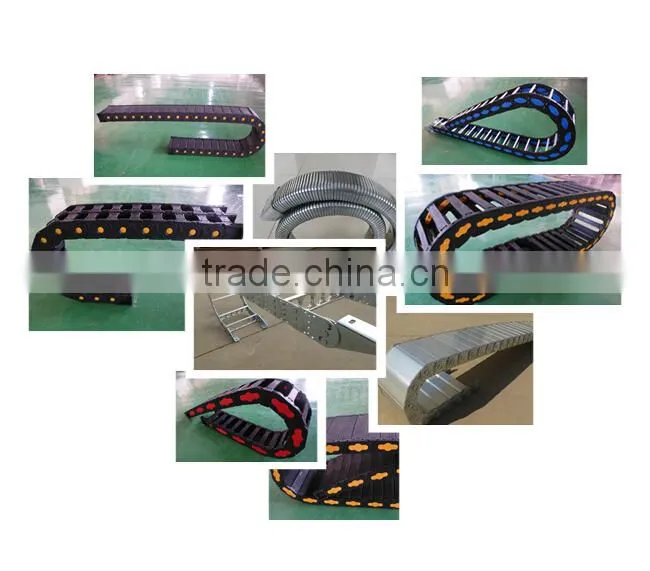

your wise choice of RUIAO,more than200 kinds of types can be offered,thank you for choosing,here,you can get any machine tools within 24hours,just believe me~
any accessory should be carefully checked before assemble,any finished products should be perfect before packed
every saleman is the after sales service personnel , once cooperate,we will put into our heart and soul .
you can provide any comments,once failed,pls dail +8613703170992 at any time
located at this booming industial estate,we have the advantage to massive manufacture ,welcome to visit our plant, RUIAO is just here waiting for you~
Customer questions:
1. Whether raw materials is guaranteed?
reply: we have stable supplier for our raw materials about decades, performance test reports can be provided if necessary
2. How to determine the model ?
reply: we have professional and technical personnels to help you match the optimal strategy .
3. What is the life of the product?
reply: with the high-performance raw materials and high-end processing machinery,we ensure the lifetime will be more than three years in the normal use.
4.how about the salesman service ?
reply: we have the Service Department,Manager zhao will be ready for you in 24h everyday,QQ:740760058 T:+8613703170992 /+863174958927
5. Are you the real manufacturer ?
reply: our plant is located in Zhifangtou Industrial Estate, here is the gathering place for processing enterprises,welcome to HEBEI RUIAO!
Have any questions, please contact the official customer service official~~~
