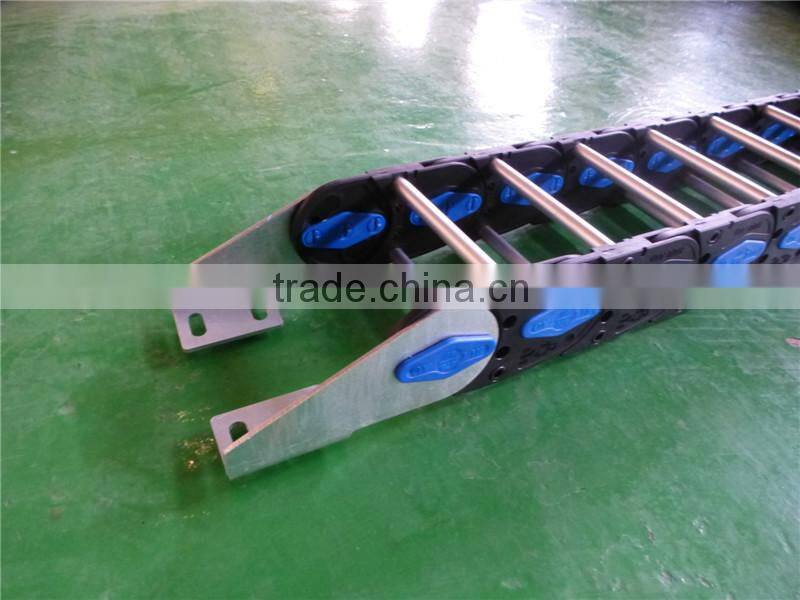

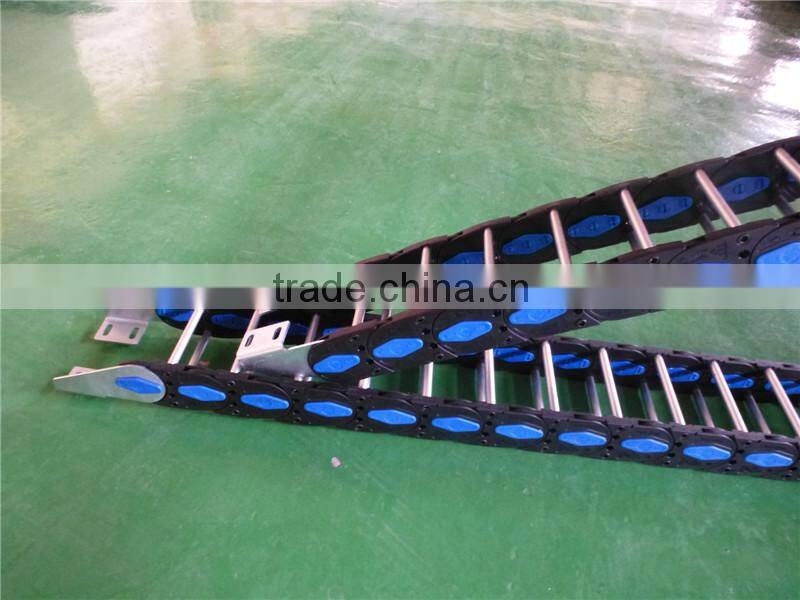

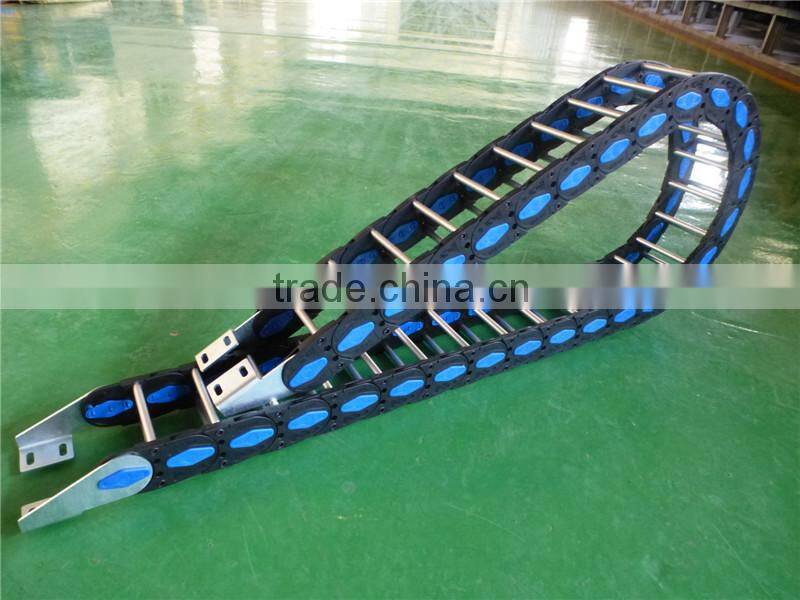

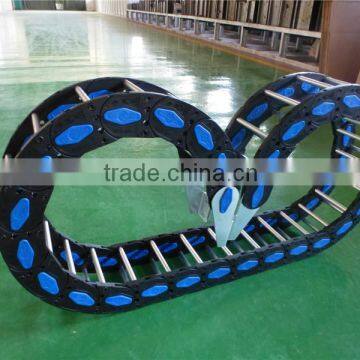

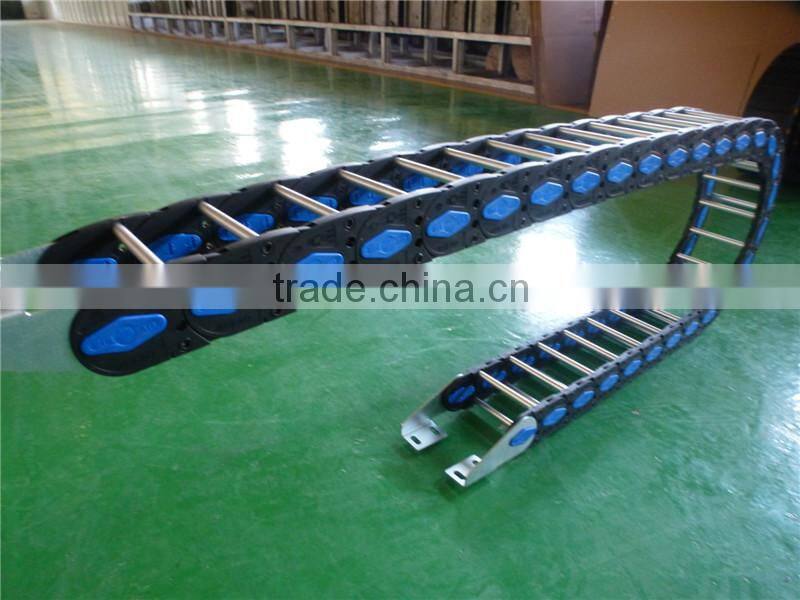

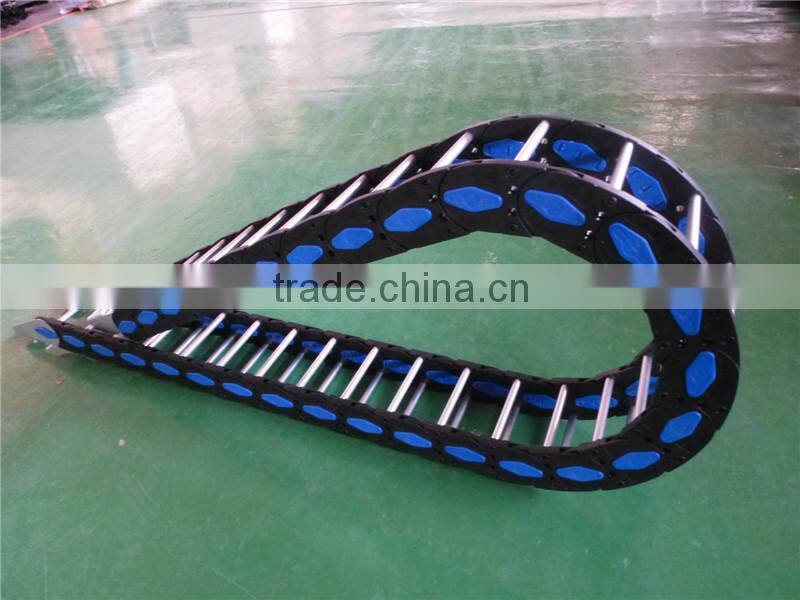

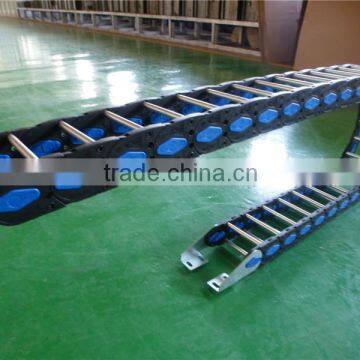

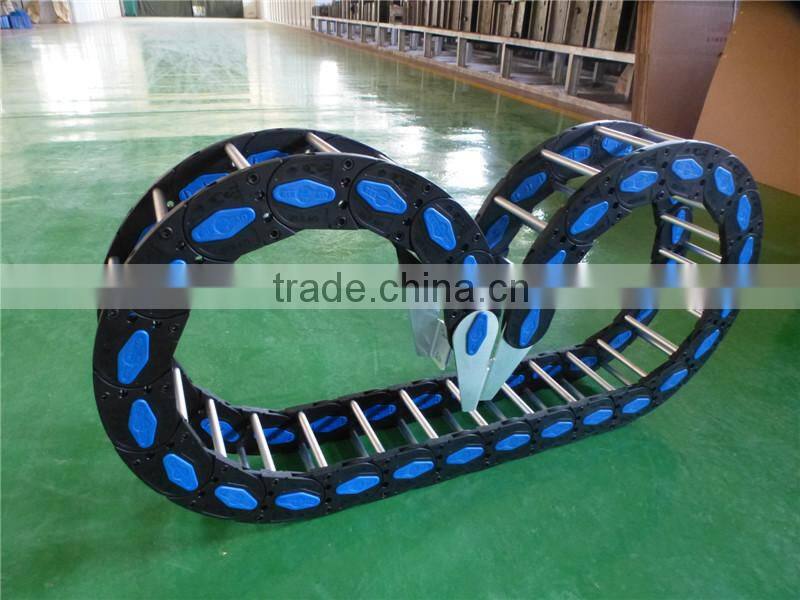

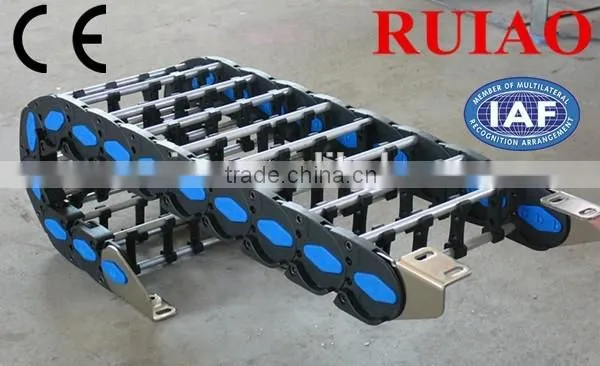

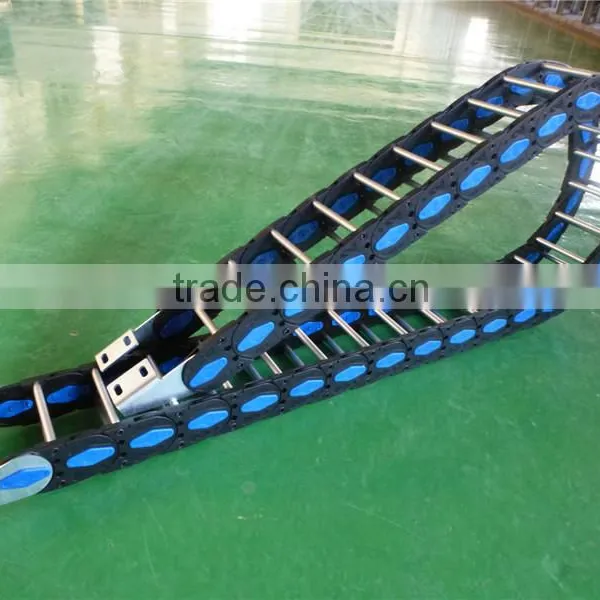

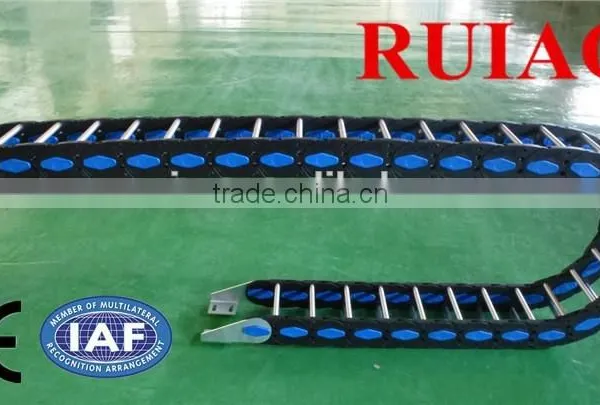

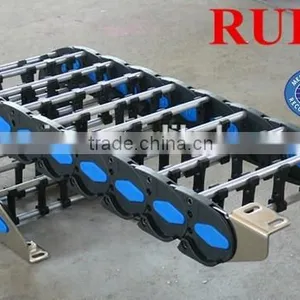

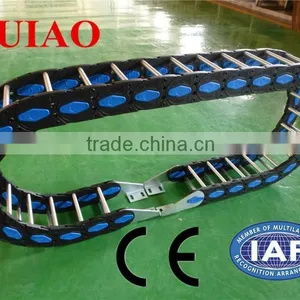

RUIAO long-distance high duty plastic cable chain/cable carrier /cable track
No purchase experience before? no related datum in hand?
Do not worry, dear friend, let me help you to choose the best one~
First step:show me your target inside height and width
Second step: show me your target outside height and width
Third step :choose bridge type or enclosed type
Forth step: choose a suitable bending radius
Fifth step: provide me the quantity (meters of the chain and pairs of the end connector)
Sixth step: place the order
TYPE |
WIDTH(mm) |
BENDING RADIUS |
PITCH |
TLZ100 |
100-600 |
200 |
100mm
|
250 | |||
300 | |||
350 | |||
400 | |||
500 |
HEBEI RUIAO MACHINE TOOL ACCESSORIES PRODUCING CO,.LTD
Zhifangtou Industrial Park,Cangzhou City,Hebei Province, China
Tel:+86-3174958927
Fax:+86-3174958913
Skype: pear.ruiao
QQ:1826839662
Website :
our cable carriers receive the test .RUIAO is powerful enough

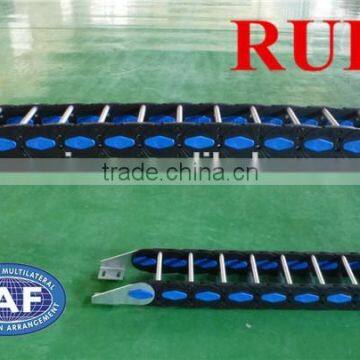

you can ask for any detail pictures about our cable carrier,these are some normal ones.
cable chain(also named cable track /cable carrier)
cable chain(also named cable track /cable carrier)
cable chain(also named cable track /cable carrier)
cable chain(also named cable track /cable carrier)
cable chain(also named cable track /cable carrier)
Principle for selecting plastic cable chain(also named cable track /cable carrier)
inner height :take the most thick piece of the internally installed cable ,oil pipe,gas pipe or water pipe as the reference height plus 10%of the space height at least as the inner height HI.if overlapping ,take the overlapped height as the actual height .
inner width :take the sum of the outside diameter of the thicker cables ,oil pipe,gas pipe or water pipe as the reference of the inner width and leave at least 10% of the space as a margin
radius of a bend :take the biggest radius of a bend of a cable ,oil pipe,gas pipe or water pipe as a reference value and leave 10%of the space as a margin
Instruction principles for internally laid cable ,oil pipe ,water pipe or gas pipe
15%of the space should be reserved as a margin so that the internally laid cables and oil pipes can move freely and there will not be any stress on the drag chains in the direction of radius .
for those cables that are quite different in diameter ,they should be laid separately and the weight should be balanced evenly .they can also be separated from each other by using spacers if necessary
when operating in high speed or high frequency ,the horizontally laid cables should be in a parted way and should not be overlapped ,if too many cables ,gas pipes and oil pipes laid together ,it is recommended that spacers be used
Installation for cable chain(also named cable track /cable carrier)
Put a screw driver vertically into the opening hole at both ends of the cover and then open the cover .put the drag chain for cables and oil pipes according to the instructions provided .put the cover back .note that the fixed end and the moving end of a cable should be fixed by using a tension device.
when used in a long sliding service ,it is recommended to use a guiding grove,please ask our technical personnel about the usage of the guiding grove.
Characteristics and Applications of cable chain(also named cable track /cable carrier)
The product can be used for such locations where repciprocating motions are required so that internally installed cables,oil pipes,gas tubes and water tubes can be draged and protected.
Each joint of the chain can be opened up so as to facilitate repairs and maintenance. It gives low noises and is of antiwearing while running. It can also be operated under high speed.
The drag chains have already extensively used in digital-controlled machine tools,electronic equipement,machinery for stone industry,machinery for glass industry,machinery for doors and windows,moulding injectors,manipulators,lifting and transport equipment and automatic warehouses,etc.
Construction of the cable chain(also named cable track /cable carrier)
The appearance of the chain looks like the crawler of a tank consisting of certain number of joints.The joints of crawler are freely turned round.
The same series of chain has same inner height and out height and same pitch but the inner height and bend radius R can be made per different specifications.
A unit chain joint is consisting of a left-right chain plate and a updown cover. Each chain joint can be opened up so as to facilitate assembly and dismantal without threading.Cables,oil pipes and ga pipes can be put into the drag chain after the cover plate is opened.
Spacers are available for use, which are able to divide the space inside the chain into divisions according to requirements
Basic parameters of cable chain(also named cable track /cable carrier)
Material:reinforced nylon. It can stand with high pressure and has good tensile strength,toughness and elasticity,wearing and falmable resistance
Resistances:It is oil and salt resistant.
operating speed and acceleration :Max.operating speed is 5m/sec.and max.acceeleration is 5m/sec.(specfic speed and acceleration depends on specific situation).
Service life: Under normal conditions,5million reciprocating motions can be reached (which is also related to the operating conditions.
your wise choice of RUIAO,more than200 kinds of types can be offered,thank you for choosing,here,you can get any machine tools within 24hours,just believe me~
any accessory should be carefully checked before assemble,any finished products should be perfect before packed
located at this booming industial estate,we have the advantage to massive manufacture ,welcome to visit our plant, RUIAO is just here waiting for you~
Customer questions:
1. Whether raw materials is guaranteed?
reply: we have stable supplier for our raw materials about decades, performance test reports can be provided if necessary
2. How to determine the model ?
reply: we have professional and technical personnels to help you match the optimal strategy .
3. What is the life of the product?
reply: with the high-performance raw materials and high-end processing machinery,we ensure the lifetime will be more than three years in the normal use.
4.how about the salesman service ?
reply: we have the Service Department,Manager zhao will be ready for you in 24h everyday,QQ:740760058 T:+8613703170992 /+863174958927
5. Are you the real manufacturer ?
reply: our plant is located in Zhifangtou Industrial Estate, here is the gathering place for processing enterprises,welcome to HEBEI RUIAO!
Have any questions, please contact the official customer service official~~~
