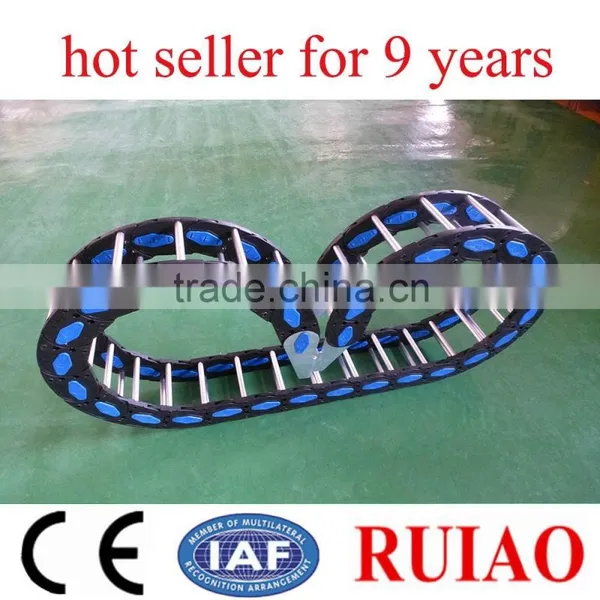

RUIAO high quality CE approved nylon P66 plastic cable drag chain
some model specification can be offered, according to your requirement ,some datas can be different
TYPE |
WIDTH(mm) |
BENDING RADIUS |
PITCH |
TLZ070 |
80-400 |
75 |
70mm
|
100 | |||
130 | |||
180 | |||
230 |
TYPE |
WIDTH(mm) |
BENDING RADIUS |
PITCH |
TLZ080 |
80-400 |
150 |
80mm
|
200 | |||
250 | |||
280 | |||
400 |
TYPE |
WIDTH(mm) |
BENDING RADIUS |
PITCH |
TLZ100 |
100-600 |
200 |
100mm
|
250 | |||
300 | |||
350 | |||
400 | |||
500 |
TYPE |
WIDTH(mm) |
BENDING RADIUS |
PITCH |
TLZ150 |
200-800 |
200 |
150mm
|
300 | |||
400 | |||
500 | |||
600 |
the height of the cable drag chain can be 7mm~111mm,
the width of the cable drag chain can be 7mm~800mm,
the material can be nylonP66 /carbon steel/stainless steel
Principle for selecting cable drag chain
- inner height :take the most thick piece of the internally installed cable ,oil pipe,gas pipe or water pipe as the reference height plus 10%of the space height at least as the inner height HI.if overlapping ,take the overlapped height as the actual height .
- inner width :take the sum of the outside diameter of the thicker cables ,oil pipe,gas pipe or water pipe as the reference of the inner width and leave at least 10% of the space as a margin
- radius of a bend :take the biggest radius of a bend of a cable ,oil pipe,gas pipe or water pipe as a reference value and leave 10%of the space as a margin
Instruction principles for internally laid cable ,oil pipe ,water pipe or gas pipe
- 15%of the space should be reserved as a margin so that the internally laid cables and oil pipes can move freely and there will not be any stress on the drag chains in the direction of radius .
- for those cables that are quite different in diameter ,they should be laid separately and the weight should be balanced evenly .they can also be separated from each other by using spacers if necessary
- when operating in high speed or high frequency ,the horizontally laid cables should be in a parted way and should not be overlapped ,if too many cables ,gas pipes and oil pipes laid together ,it is recommended that spacers be used
Installation for cable drag chain
- Put a screw driver vertically into the opening hole at both ends of the cover and then open the cover .put the drag chain for cables and oil pipes according to the instructions provided .put the cover back .note that the fixed end and the moving end of a cable should be fixed by using a tension device.
- when used in a long sliding service ,it is recommended to use a guiding grove,please ask our technical personnel about the usage of the guiding grove.
Construction of the cable drag chain
- The appearance of the chain looks like the crawler of a tank consisting of certain number of joints.The joints of crawler are freely turned round.
- The same series of chain has same inner height and out height and same pitch but the inner height and bend radius R can be made per different specifications.
- A unit chain joint is consisting of a left-right chain plate and a updown cover. Each chain joint can be opened up so as to facilitate assembly and dismantal without threading.Cables,oil pipes and ga pipes can be put into the drag chain after the cover plate is opened.
- Spacers are available for use, which are able to divide the space inside the chain into divisions according to requirements

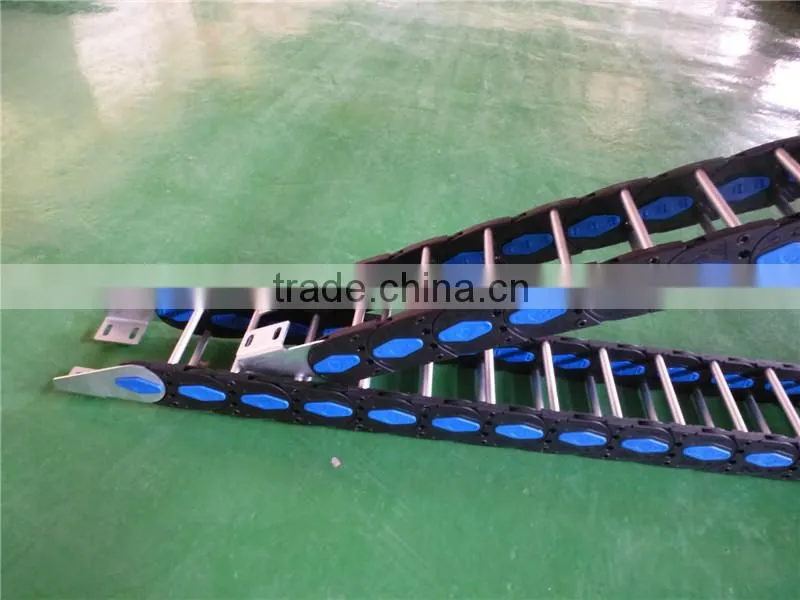

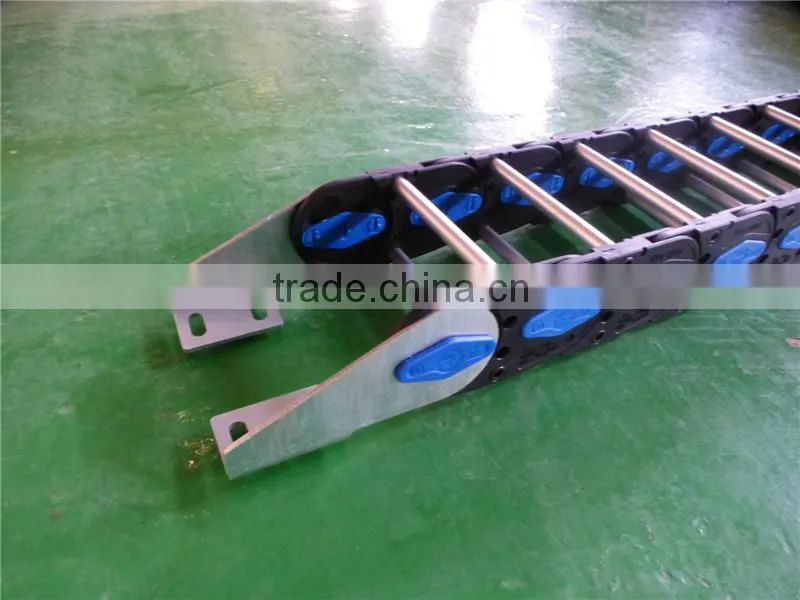

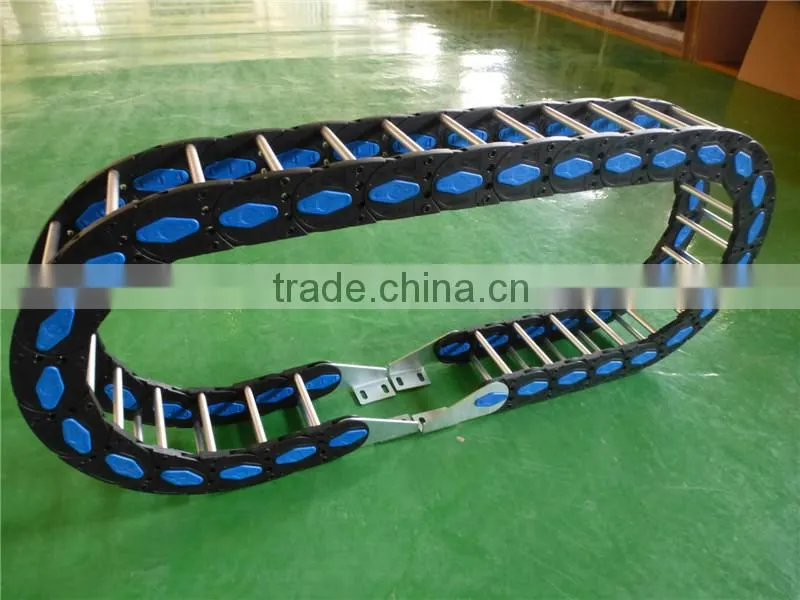

you can ask for any detail pictures about our products,these are some normal ones.

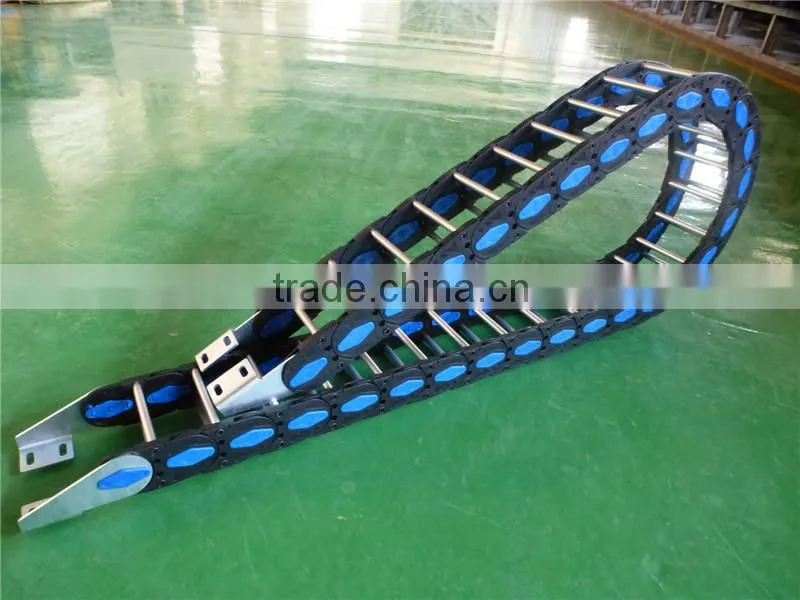

cable drag chain

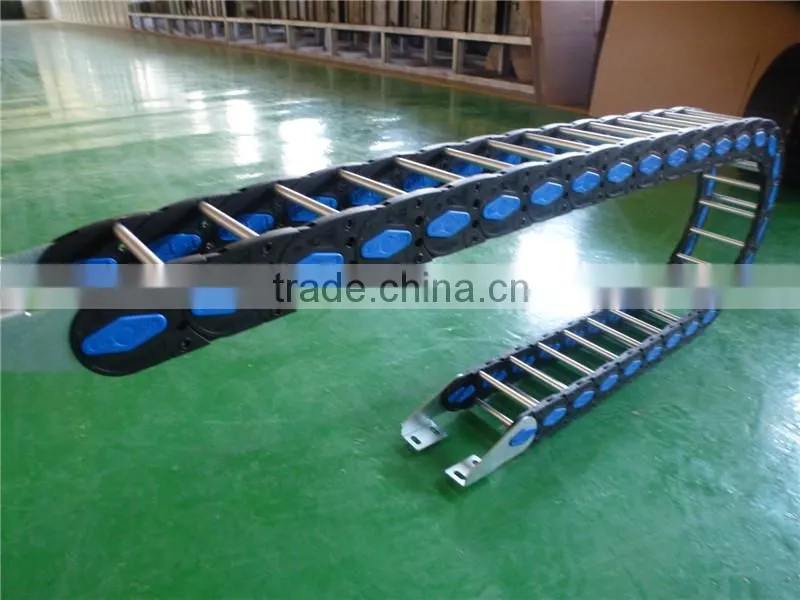

cable drag chain

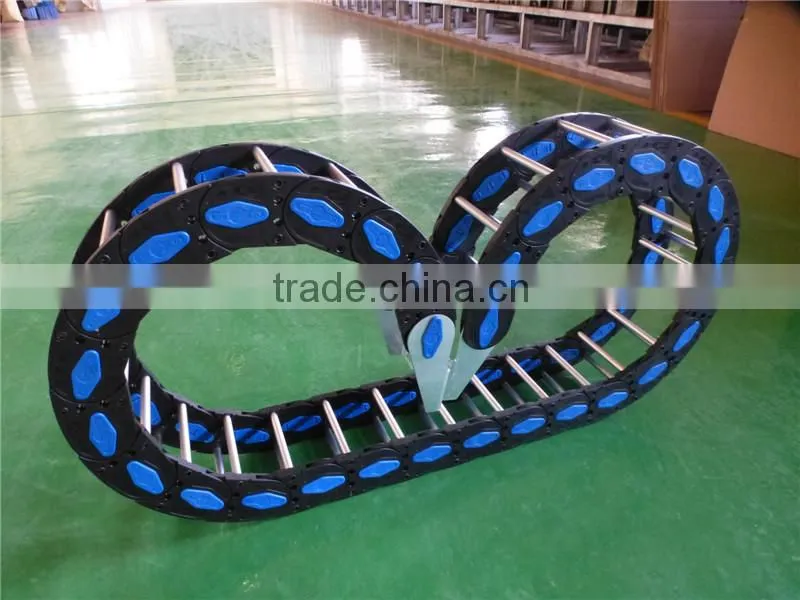

cable drag chain

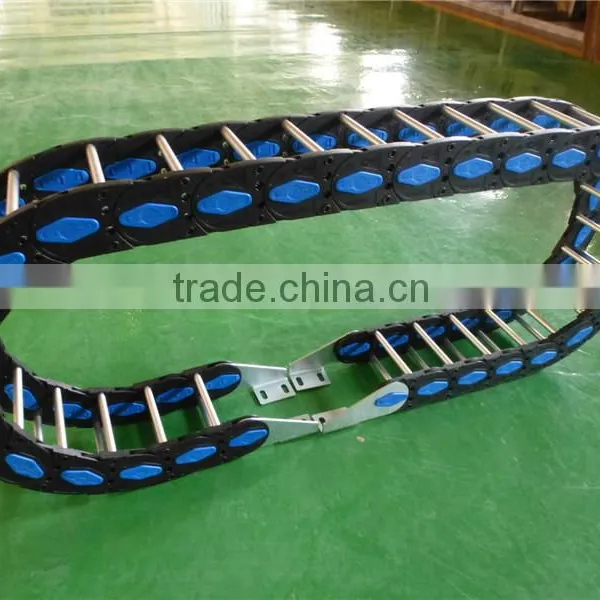

cable drag chain

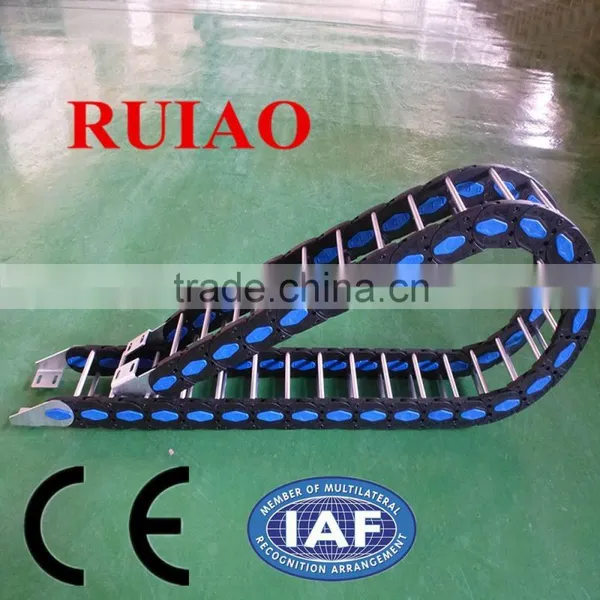

cable drag chain

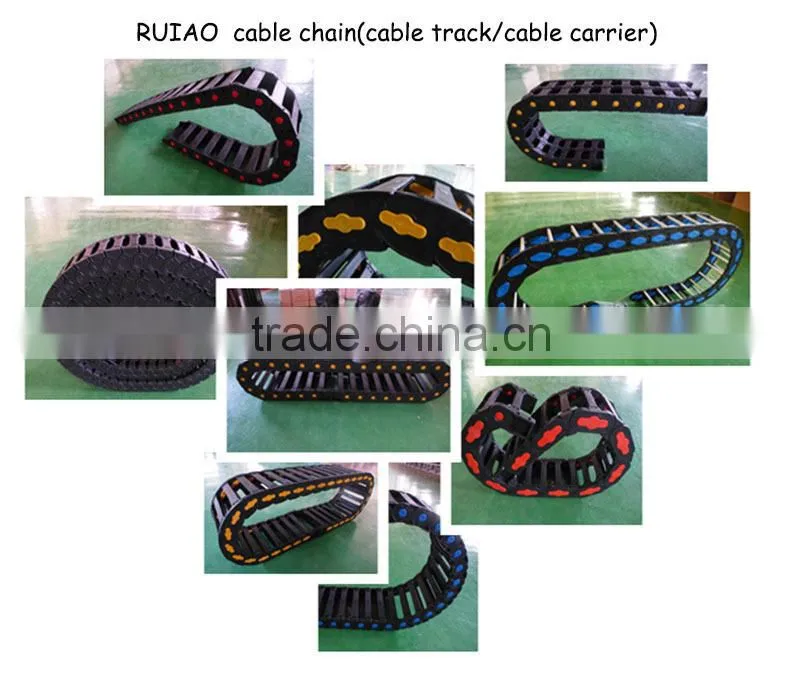

your wise choice of RUIAO,more than200 kinds of types can be offered,thank you for choosing,here,you can get any machine tools within 24hours,just believe me~
located at this booming industial estate,we have the advantage to massive manufacture ,welcome to visit our plant, RUIAO is just here waiting for you~
