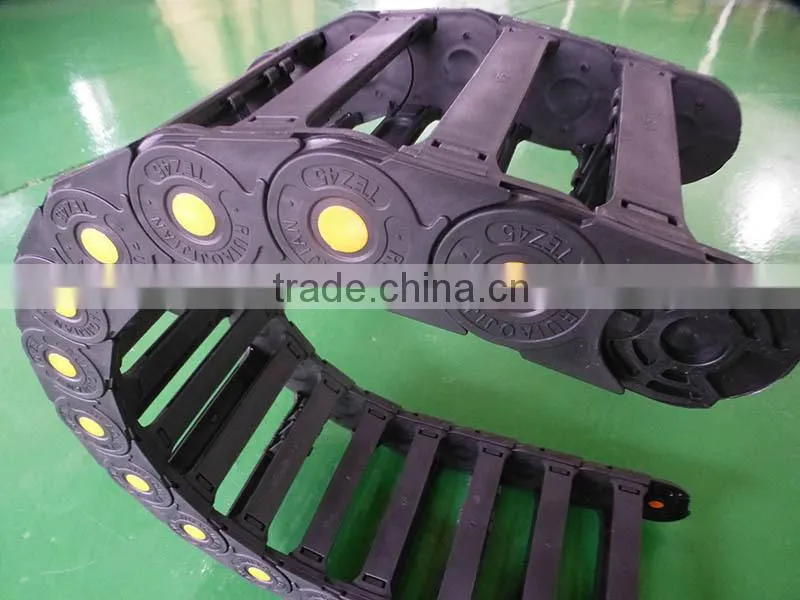

RUIAO load bearing TEZseries plastic cable drag chain
some model specification can be offered, according to your requirement ,some datas can be different
| TYPE | H*W(I) | H*W(O) | R | P | Non-support L | TYPE |
| TEZ35*50D | 35*50 | 58*77 |
75 100 125 150 200 250
|
66 | 8 |
Bridge Enclosed |
| TEZ35*75D | 35*75 | 58*102 | 8 | |||
| TEZ35*100D | 35*100 | 58*127 | 10 | |||
| TEZ35*125D | 35*125 | 58*152 | 10 | |||
| TEZ35*150D | 35*150 | 58*177 | 12 | |||
| TEZ35*175D | 35*175 | 58*202 | 12 | |||
| TEZ35*200D | 35*200 | 58*227 | 15 |
| TYPE | H*W(I) | H*W(O) | R | P | Non-support L | TYPE |
| TEZ45*50D | 45*50 | 68*79 |
75 100 125 150 200 250
|
66 | 8 |
Bridge Encolsed |
| TEZ45*75D | 45*75 | 68*104 | 8 | |||
| TEZ45*100D | 45*100 | 68*129 | 10 | |||
| TEZ45*125D | 45*125 | 68*154 | 10 | |||
| TEZ45*150D | 45*150 | 68*179 | 12 | |||
| TEZ45*175D | 45*175 | 68*204 | 12 | |||
| TEZ45*200D | 45*200 | 68*229 | 15 |
| TYPE | H*W(I) | H*W(O) | R | P | Non-support L | TYPE |
| TEZ56*100D | 56*100 | 83*139 |
150 200 250 300 350 400 500
|
91 | 8 |
Bridge Enclosed |
| TEZ56*125D | 56*125 | 83*164 | 8 | |||
| TEZ56*150D | 56*150 | 83*189 | 10 | |||
| TEZ56*175D | 56*175 | 83*214 | 10 | |||
| TEZ56*200D | 56*200 | 83*239 | 12 | |||
| TEZ56*250D | 56*250 | 83*289 | 15 | |||
| TEZ56*300D | 56*300 | 83*339 | 15 |
| TYPE | H*W(I) | H*W(O) | R | P | Non-support L | TYPE |
| TEZ65*100D | 65*100 | 95*147 |
150 200 250 300 350 400 500
|
96 | 8 |
Bridge Enclosed |
| TEZ65*125D | 65*125 | 95*172 | 8 | |||
| TEZ65*150D | 65*150 | 95*197 | 10 | |||
| TEZ65*175D | 65*175 | 95*222 | 10 | |||
| TEZ65*200D | 65*200 | 95*247 | 12 | |||
| TEZ65*250D | 65*250 | 95*297 | 15 | |||
| TEZ65*300D | 65*300 | 95*347 | 15 |
| TYPE | H*W(I) | H*W(O) | R | P | Non-support L | TYPE |
| TEZ80*100D | 80*100 | 111*151 |
200 250 300 350 400 500
|
110 | 13 |
Bridge Enclosed |
| TEZ80*125D | 80*125 | 111*176 | 13 | |||
| TEZ80*150D | 80*150 | 111*201 | 15 | |||
| TEZ80*175D | 80*175 | 111*226 | 15 | |||
| TEZ80*200D | 80*200 | 111*251 | 17 | |||
| TEZ80*250D | 80*250 | 111*301 | 20 | |||
| TEZ80*300D | 80*300 | 111*351 | 20 |
Guide for type selection of RUIAO cable drag chain
1.Material: steel cable drag chain, stainless steel cable drag chain, nylon cable drag chain
2.Function: single row type, compound rows type, enclosed type,anti-noise type, S-type
3.Environment:oil/rain/salt/humidity/rubbish/high-TEMP/low-TEMP/load-bearing/long travel range/low noise~
4.Assembly: Unitary type,bridge type, semi enclosed type,total enclosed type.
5.RUIAO size: TP/TEZ/TLZ/TLJ/TLC/TL/TLG/JR-2/DGT
Brief introduction of RUIAO cable drag chain
1. The cable chain is assembled by single unit, each unit can be disassembled easily by the flat screwdriver, welcome ask us for installation video!
2. For the same series,
they have the same'height'and pitch, while the width and bending radius can be difference,
you can choose the most suitable one according to our parameter list below,
or ask us to help you choose the right one at any time~
3. Above TEZ35*50 size,in order to manage your moving wires and tubes,you can add separators.
4. When the length of the cable chain is more than 7meters per piece, pls add support roller or guide bridge
No purchase experience about cable chain before? no related datum in hand?
Do not worry, dear friend, let me help you to choose the best one~
First step:show me your target inside height and width
Second step: show me your target outside height and width
Third step :choose bridge type or enclosed type
Forth step: choose a suitable bending radius
Fifth step: provide me the quantity (meters of the chain and pairs of the end connector)
Sixth step: place the order

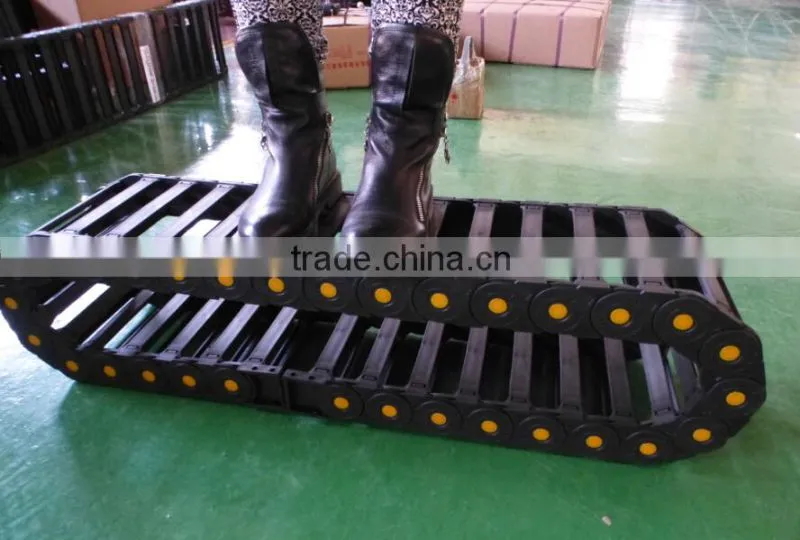

receive the test .RUIAO is powerful enough

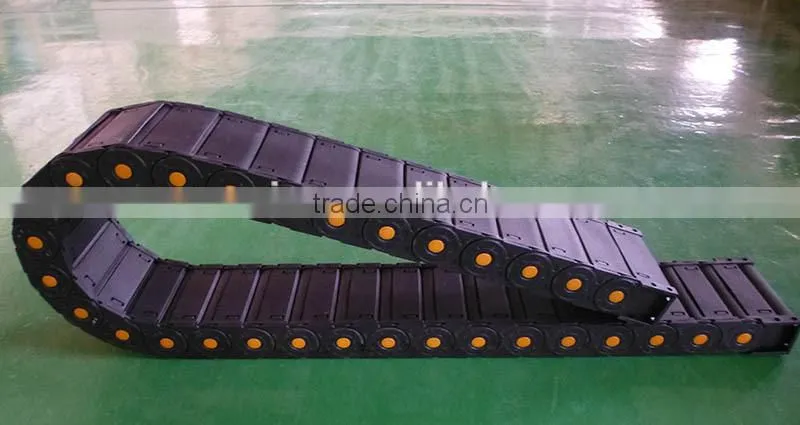

you can ask for any detail pictures about our products,these are some normal ones.
your wise choice of RUIAO,more than200 kinds of types can be offered,thank you for choosing,here,you can get any machine tools within 24hours,just believe me~
