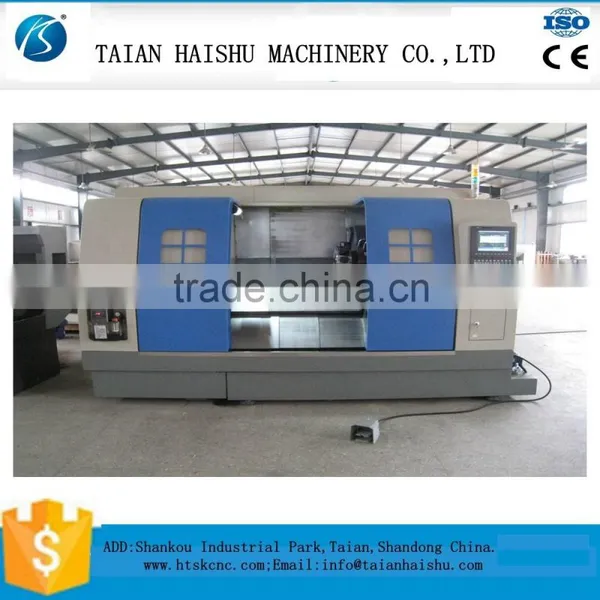

Help CenterCNC 250B Multipurpose CNC Turning Center
Related Products
CNC(B)Series single spindle single turret CNC turning center
BASIC CONFIGURATIONS
1) CNC system: SYNTEC
2) servo spindle unit
3) hydraulic center solid chuck
4) Horizontal 12-station hydraulic servo power turret
5) Electric tailstock,hydraulic sleeve
6) 3-Axis line rail
7) Turning cooling system
8) Automatic lubrication system
9) The whole protection system
OPTIONALS
1) CNC system: Fanuc, Siemens
2) Increasing the Y-axis
3) Hydraulic hollow chuck
4) Programming electric tailstock
5) Automatic feeder
6) Automatic chip conveyor
7) Automatic pick pieces equipment
8) Automatic protective door
9) Loading and unloading robots
No. |
Item |
Unit |
specifications |
||||
CNC150B |
CNC250B |
CNC350B |
CNC450B |
CNC550B |
|||
1 |
Max.rotation diameter on lathe’ body |
mm |
150 |
250 |
350 |
450 |
550 |
2 |
piece lengt |
mm |
750/1000/1500 |
||||
3 |
Max.turning diameter |
mm |
100 |
200 |
300 |
400 |
500 |
4 |
Spindle nose type and code |
mm |
A6 |
A6 |
A8 |
A8 |
A12 |
5 |
Hydraulic chuck |
mm |
Φ80 (4") |
φ160 (6") |
φ200 (8") |
φ250 (10") |
φ300 (12") |
6 |
Front spindle bore taper |
|
1:20 |
||||
7 |
Spindle bore |
mm |
38 |
40 |
60 |
60 |
75 |
8 |
Spindle form |
|
Servo spindle unit |
||||
9 |
Servo spindle speed range |
rpm |
0-4000 |
||||
10 |
X/Z Rapid traverse |
mm/min |
40000 |
||||
11 |
Main servo motor power |
kW |
3.7 |
5.5 |
7.5 |
11 |
15 |
12 |
C-axis(Turret power axis) motor power |
kw |
2.2 |
3.7 |
3.7 |
5.5 |
5.5 |
13 |
X/Z-axis motor max.torque |
N.m |
6 |
10 |
10 |
10 |
15 |
14 |
Y-axis travel(optional) |
mm |
+20/-20 |
+25/-25 |
+35/-35 |
+45/-45 |
+55/-55 |
15 |
Power specifications |
v |
380±10%. 50Hz±1Hz |
||||
16 |
Turret transfer time (one station) |
s |
1.6(12) |
||||
17 |
Turret transfer repeat positioning accuracy |
mm |
0.005" |
||||
18 |
X-axis travel |
mm |
100 |
150 |
200 |
300 |
350 |
19 |
Z-axis travel |
mm |
1100/1350/1850 |
||||
20 |
C-axis(Turret power axis) max.speed |
rpm |
4000 |
||||
21 |
Hydraulic servo turret form |
|
Horizontal 12-station servo power turret |
||||
22 |
Turret cylinder clamping force |
kg |
2350 |
2350 |
4240 |
4240 |
4524 |
23 |
Turret hydraulic power source |
kg/cm² |
30 |
30 |
40 |
40 |
45 |
24 |
Power tool holder specification |
|
VDI30 DIN5480 |
VDI30 DIN5480 |
VDI40 DIN5480 |
VDI40 DIN5480 |
BMT60 -ER32 |
25 |
Tailstock sleeve diameter/ travel |
mm |
45/100 |
50/100 |
65/100 |
70/100 |
80/100 |
26 |
Tailstock tapered bore taper |
Morse |
3# |
4# |
4# |
4# |
5# |
27 |
Tailstock form (programming optional) |
|
Electric drive |
||||
28 |
Tailstock sleeve form |
|
Hydraulic drive |
||||
29 |
Knife handle size |
mm |
16×16 |
20×20 |
20×20 |
25×25 |
25×25 |
30 |
Net weight |
kg |
3200 |
3800 |
4500 |
5400 |
6500 |
31 |
Size(L×W×H) |
mm |
2700/3000/3500×1650×1900 |
||||
