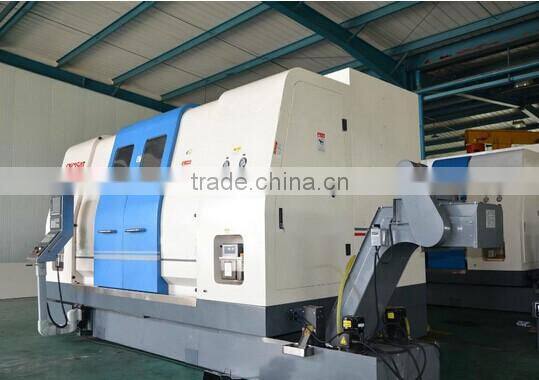

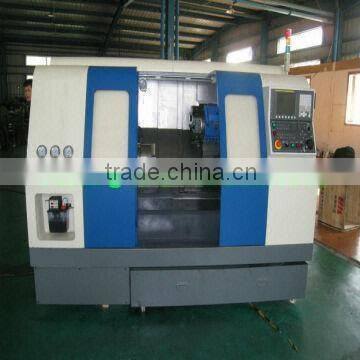

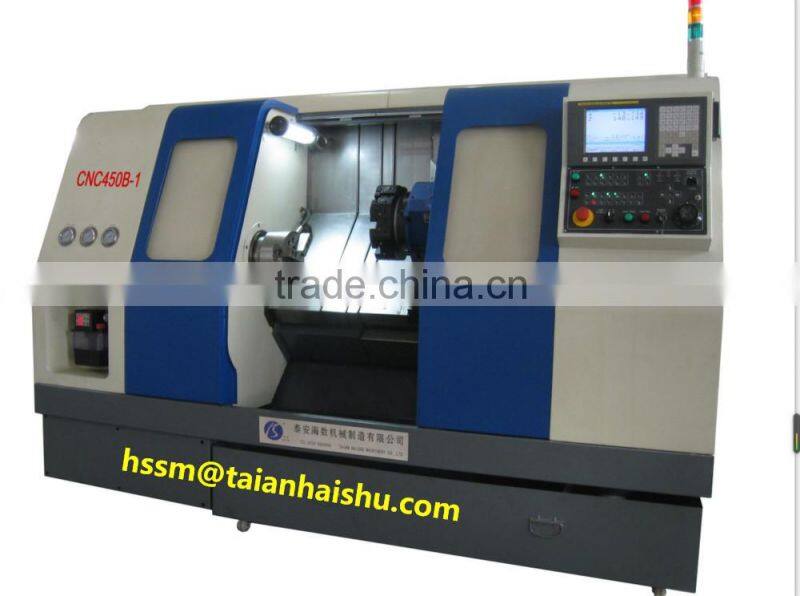

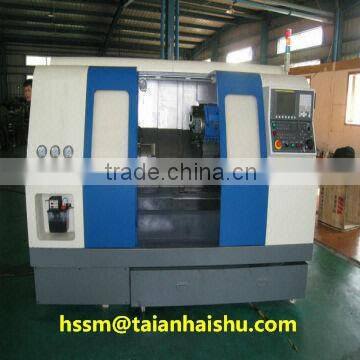

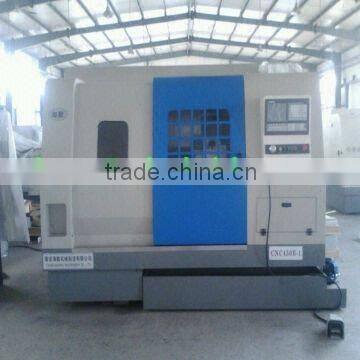

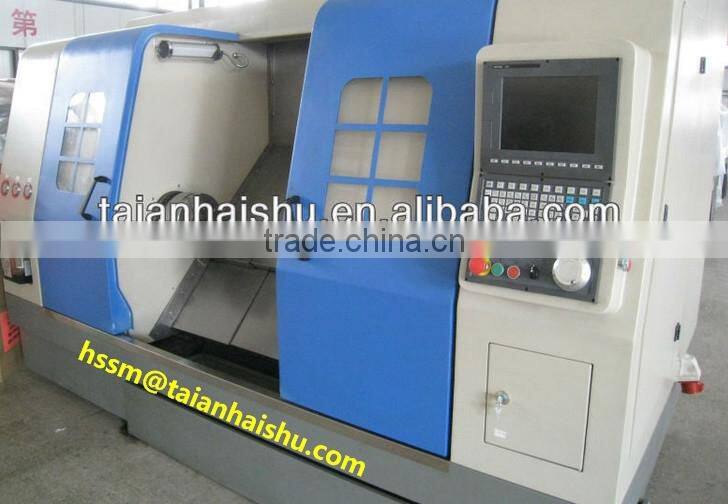

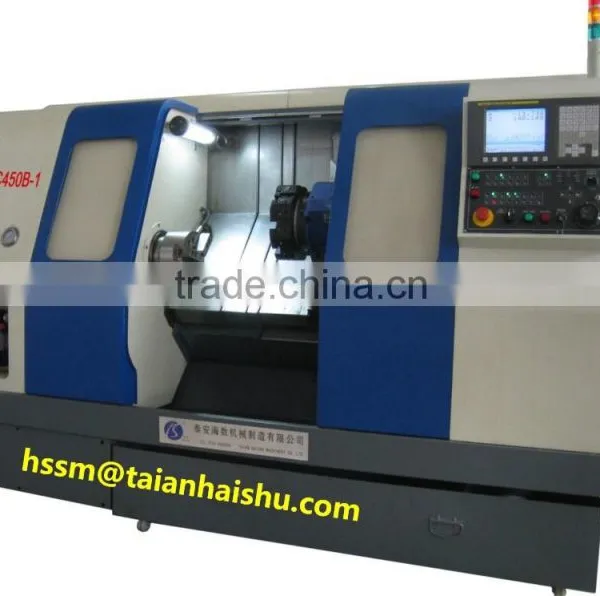

CNC(A) series two spindle single turret CNC turning center CNC150/250/350/450/550 cnc slant bed lathe
No. |
Item |
Unit |
specifications |
|||||||
|
CNC150 (B-1) |
CNC250(B-1) |
CNC350 (B-1) |
CNC450 (B-1) |
CNC550 (B-1) |
||||||
1 |
Max.rotation diameter on lathe’ body |
mm |
150 |
250 |
350 |
450 |
550 |
|||
2 |
piece lengt |
mm |
750/1000/1500 |
|||||||
3 |
Max.turning diameter |
mm |
100 |
200 |
300 |
400 |
500 |
|||
4 |
Spindle nose type and code |
mm |
A6 |
A6 |
A8 |
A8 |
A12 |
|||
5 |
Hydraulic chuck |
mm |
Φ80 (4") |
φ160 (6") |
φ200 (8") |
φ250 (10") |
φ300 (12") |
|||
6 |
Front spindle bore taper |
|
1:20 |
|||||||
7 |
Spindle bore |
mm |
38 |
40 |
60 |
60 |
75 |
|||
8 |
Spindle form |
|
Programmable three gears automatic hydraulic speed change |
|||||||
9 |
Spindle frequency control speed range |
rpm |
20-3000 |
|||||||
10 |
X/Z Rapid traverse |
mm/min |
20000 |
|||||||
11 |
Main servo motor power |
kW |
3.7 |
5.5 |
7.5 |
11 |
15 |
|||
12 |
X/Z-axis motor max.torque |
N.m |
6 |
10 |
10 |
10 |
15 |
|||
13 |
Power specifications |
V |
380±10%. 50Hz±1Hz |
|||||||
14 |
Turret transfer time (one station) |
s |
1.6(12) |
|||||||
15 |
Turret transfer repeat positioning accuracy |
|
0.005" |
|||||||
16 |
X-axis travel |
mm |
100 |
150 |
200 |
300 |
350 |
|||
17 |
Z-axis travel |
mm |
1100/1350/1850 |
|||||||
18 |
B-axis travel |
mm |
1400/1650/2150 |
|||||||
19 |
Hydraulic turret form |
|
Horizontal 8-station servo power turret |
Horizontal 12-station servo power turret |
||||||
20 |
Tailstock sleeve diameter/ travel |
mm |
45/100 |
50/100 |
65/100 |
70/100 |
80/100 |
|||
21 |
Tailstock tapered bore taper |
Morse |
3# |
4# |
4# |
4# |
5# |
|||
22 |
Tailstock form (programming optional) |
|
Electric drive |
|||||||
23 |
Tailstock sleeve form |
|
Hydraulic drive |
|||||||
24 |
Knife handle size |
mm |
16×16 |
20×20 |
20×20 |
25×25 |
25×25 |
|||
25 |
Net weight |
kg |
3000 |
3500 |
4200 |
5000 |
6200 |
|||
26 |
Size(L×W×H) |
mm |
3000/3250/3750×1800×2000 |
|||||||
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine except of CNC system, which guarantee is three years
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is OK.
If you are interested in our products, welcome to leave a message or send the inquiry to understand the details of machine.
