Help CenterCE RoHS 80lm/w 6 Inch Samsung/Epistar SMD 20w Led Ceiling Light Led Down Lights
Related Products
-
CE RoHS Ra80 36w 8ft Led Tube Light With Transparent & Frosted PC CoverUS$ 9 - 21.9MOQ: 1 Piece -
80lm/w 8 Inch 30w Samsung Smd Led Downlight With DriverUS$ 14.3 - 29.3MOQ: 1 Piece
-
Epistar SMD CRI>80 8 Inch 16w Ultra Thin Round Led Downlight MalaysiaUS$ 10.1 - 23MOQ: 1 Piece
-
80lm/w 8 Inch 30w Smd Samsung Chip Led DownlightUS$ 14.3 - 29.3MOQ: 1 Piece
-
High Lumen Super Driver CRI>80 5w Gu10 Cob Led SpotlightUS$ 2.5 - 11.8MOQ: 1 Piece
Specifications
led ceiling light led down lightsSamsung/Epistar SMD,80lm/w
CRI>80,PF>0.90
3 years warranty
CE,RoHS approved
CE RoHS 80lm/w 6 inch Samsung/Epistar SMD 20w led ceiling light led down lights
NGE LED downlights are the ideal replacement for the conventional downlight, energy- saving up to 70%, widely used for hotels,restaurant, offices, passenger interiors, shops, supermarkets, airports, stations.,etc.Designed with advanced heat dissipation technology, used high brightness SMD LED and super internal constant current driver, NGE downlights are much better than most similar LED downlights in the market.
Product Features for CE RoHS 80lm/w 6 inch Samsung/Epistar SMD 20w led ceiling light led down lights
1. LED: High Brightness Samsung/Epistar LED,light efficiency >100lm/w, CRI>80;
2. Excellent driver: Conversion efficiency above 85% and power factor >0.90;
3. Thermal technology: Advanced technology with first class radiator materials;
4. Perfect light: Used low power SMD LED, more even and soft light;
5. Certificate: CE approval and RoHS compliant;
6. Warranty: 3 years.

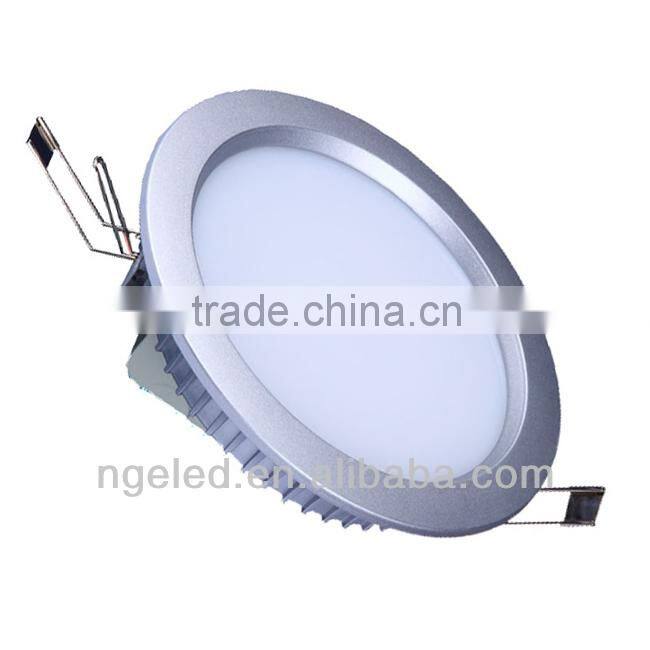

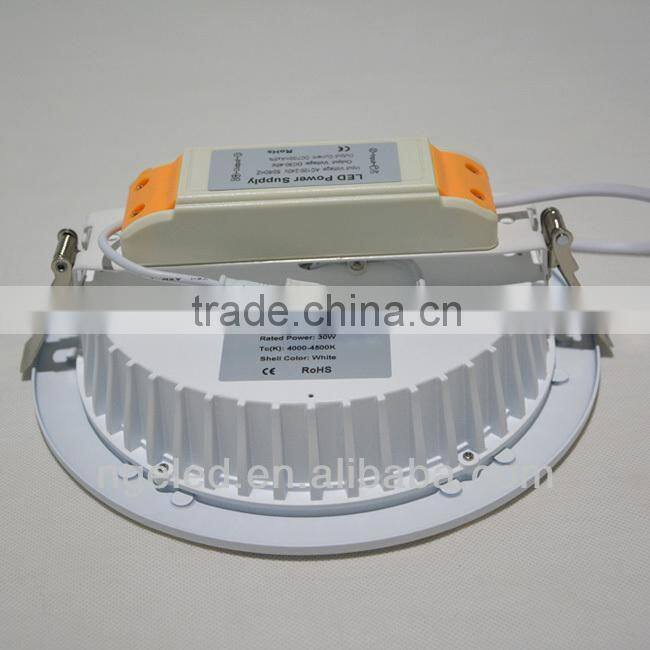

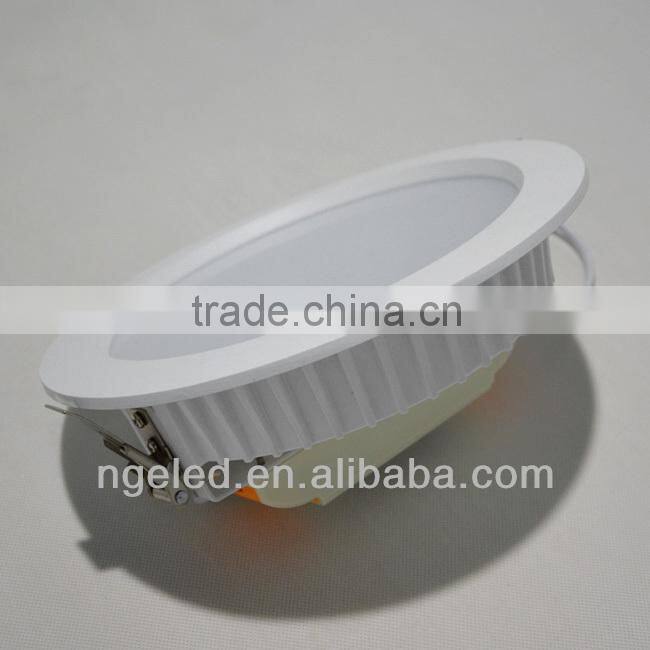

Product pictures of CE RoHS 80lm/w 6 inch Samsung/Epistar SMD 20w led ceiling light led down lights
Technical parameters for CE RoHS 80lm/w 6 inch Samsung/Epistar SMD 20w led ceiling light led down lights
| Product Name | led ceiling light led down lights |
| Item Number | NGE-SMD02-D20W6 |
| Rated Power | 20W |
| Input Voltage | AC85-265V |
| Power Factor | >0.90 |
| LED Type | Samsung/Epistar SMD LED |
| Luminous Flux | 1600lm±100lm |
| Color Temperature | 3000-3500K,4000-4500K,5500-6500K |
| CRI | Ra>80 |
| Product Size | φ190*H80mm |
| Cutout | φ170mm |
| Main Materials | Aluminum alloy, PC Cover |
| Shell Color | White, Silver |
| Working Temperature | -40~60°C |
| Lifetime | >35,000hours |
| Warranty | 3 years |
| Certificate | CE, RoHS |

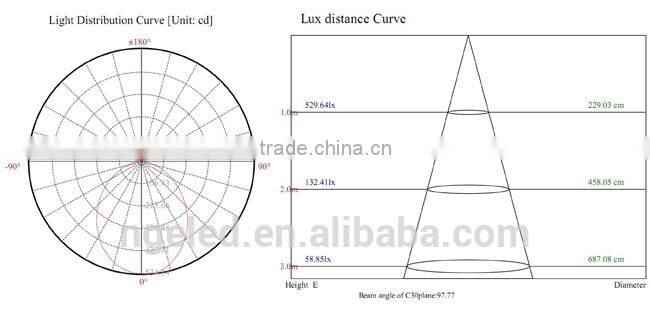

Test Report for CE RoHS 80lm/w 6 inch Samsung/Epistar SMD 20w led ceiling light led down lights
Series products of CE RoHS 80lm/w 6 inch Samsung/Epistar SMD 20w led ceiling light led down lights
| Part No. | Specification | ||||||||
| Rated Power | Input Voltage | Color Temperature | Luminous flux | Illuminance | Size | Cutout | Power Factor | Equal to traditional downlight | |
| NGE-SMD02-D10W4 (4 Inch) | 10W | AC85~265V 50~60Hz | 3000k-3500k | 800lm±50lm | 1M=510lux | φ140*H80mm | φ120mm | >0.90 | 25W |
| 4000k-4500k | 2M=124lux | ||||||||
| 5500k-6500k | 3M=55lux | ||||||||
| NGE-SMD02-D12W5(5 Inch) | 12W | AC85~265V 50~60Hz | 3000k-3500k | 960lm±100lm | 1M=580lux | φ180*H80mm | φ150mm | >0.90 | 30W |
| 4000k-4500k | 2M=150lux | ||||||||
| 5500k-6500k | 3M=64lux | ||||||||
| NGE-SMD02-D15W5(5 Inch) | 15W | AC85~265V 50~60Hz | 3000k-3500k | 1200lm±100lm | 1M=640lux | φ180*H80mm | φ150mm | >0.90 | 40W |
| 4000k-4500k | 2M=168lux | ||||||||
| 5500k-6500k | 3M=72lux | ||||||||
| NGE-SMD02-D15W6(6 Inch) | 15W | AC85~265V 50~60Hz | 3000k-3500k | 1200lm±100lm | 1M=640lux | φ190*H80mm | φ170mm | >0.90 | 40W |
| 4000k-4500k | 2M=168lux | ||||||||
| 5500k-6500k | 3M=72lux | ||||||||
| NGE-SMD02-D20W6(6 Inch) | 20W | AC85~265V 50~60Hz | 3000k-3500k | 1600lm±100lm | 1M=750lux | φ190*H80mm | φ170mm | >0.90 | 50W |
| 4000k-4500k | 2M=174lux | ||||||||
| 5500k-6500k | 3M=89lux | ||||||||
| NGE-SMD02-D25W8(8 Inch) | 25W | AC85~265V 50~60Hz | 3000k-3500k | 2000lm±100lm | 1M=830lux | φ230*H88mm | φ200mm | >0.90 | 65W |
| 4000k-4500k | 2M=208lux | ||||||||
| 5500k-6500k | 3M=95lux | ||||||||
| NGE-SMD02-D30W8(8 Inch) | 30W | AC85~265V 50~60Hz | 3000k-3500k | 2400lm±100lm | 1M=925lux | φ230*H88mm | φ200mm | >0.90 | 75W |
| 4000k-4500k | 2M=236lux | ||||||||
| 5500k-6500k | 3M=107lux | ||||||||
Certificates for CE RoHS 80lm/w 6 inch Samsung/Epistar SMD 20w led ceiling light led down lights
Packaging for 20w led ceiling light led down lights: 12pcs/ctn (10KG);
Shipping ways for 20w led ceiling light led down lights: by express, by air, by sea
Any quantity of sample 20w led ceiling light led down lights is available;
Lingting solution for 20w led ceiling light led down lights can be provided;
Good and professional after-sales services for 20w led ceiling light led down lights.
Manufacturer of CE RoHS 80lm/w 6 inch Samsung/Epistar SMD 20w led ceiling light led down lights
NGE Technology Limited is a professional indoor LED lighting manufacturer and solutions provider.
We are specialized in the LED shop lighting, office Lighting, commercial lighting, LED industrial lighting and residential lighting research and manufacture. Especially, LED shop light, LED tube, LED Panel light, LED downlight, LED high bay, LED floodlight and LED bulb products are most popular products for us.
NGE Technology has more than 180 experienced workers,15 persons' R&D team and 8000 square workshop. It is equiped with auto SMT machines, reflow-soldering machine, integrating sphere, goniophotometers machine and inspection instruments, etc.
NGE Technology endeavors to develop new LED lighting products. Our expert R&D team have abundant knowledge of electronic technology, structure technology, thermal management as well as optics design. Almost all of our products are CE certificated and RoHS compliant, and our LED Shop light are UL, PSE, SAA and C Tick approved.
NGE Technology has an excellent overseas sales and after-sales team. NGE products are very popular in Europe, America, Australia, Japan, Middle East and Southeast Asia market now.
We have successfully achieved over 50% annual growth in the turnover in the past 3 years. The turnover in 2012 is estimated to be 12 million US dollars. Let's work together to devote to the new, green and eco-friendly cause for the world.
