Home > Lights & Lighting > LED Interior Lighting > LED Down Light > 80lm/w 8 Inch 30w Samsung Smd Led Downlight With Driver

80lm/w 8 Inch 30w Samsung Smd Led Downlight With Driver

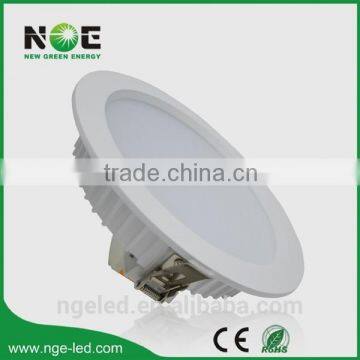

80lm/w 8 Inch 30w Samsung Smd Led Downlight With Driver photo-1

80lm/w 8 Inch 30w Samsung Smd Led Downlight With Driver photo-2

US$ 14.3 - 29.3 MOQ: 1 Piece

Key Specifications

Get Latest Price

LED Light Source:

Samsung SMD 5630

Warranty(Years):

Input Voltage(V):

AC85-265V

Contact Supplier Request Quote Chat Now

Shenzhen NGE Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source Samsung SMD 5630

Warranty(Years) 3

Input Voltage(V) AC85-265V

Lamp Power(W) 30

Lamp Luminous Flux(lm) 2300lm±150lm

Lamp Luminous Efficiency(lm/w) 80

Color Temperature(CCT) Other, 3000k-3500k;4000k-4500k;5500k-6500k

Working Temperature(℃) -25, 40

Working Lifetime(Hour) 35000

Lamp Body Material Other, Aluminum alloy, PC Cover

IP Rating Other, IP20

Certification CE

Model Number NGE-SMD02-D30W8

Place of Origin Guangdong, China

Brand Name NGE

80lm/w 8 Inch 30w samsung smd led downlight with driver

NGE LED downlights are the ideal replacement for the conventional downlight, energy- saving up to 70%, widely used for hotels,restaurant, offices, passenger interiors,shops,supermarkets, airports,stations.,etc.

Designed with advanced heat dissipation technology, used high brightness SMD LED and super internal constant current driver,

NGE downlights are much better than most similar LED downlights in the market.

Product Features for 80lm/w 8 Inch 30w samsung smd led downlight with driver

1. LED: High Brightness Samsung LED,light efficiency >100lm/w, CRI>80;

2. Excellent driver: Conversion efficiency above 85% and power factor >0.90;

3. Thermal technology: Advanced technology with first class radiator materials;

4. Perfect light: Used low power SMD LED,more even and soft light;

5. Certificate: CE approval and RoHS compliant;

6. Warranty: 3 years.

Product pictures of 80lm/w 8 Inch 30w samsung smd led downlight with driver

Technical parameters for 80lm/w 8 Inch 30w samsung smd led downlight with driver

Product Name	LED downlight
Item Number	NGE-SMD02-D30W8
Rated Power	30W
Input Voltage	AC85-265V
Power Factor	>0.9
LED Type	Samsung SMD LED
LED Quantity	72PCS
Luminous Flux	2300lm±150lm
Color Temperature	3000-3500K,4000-4500K,5500-6500K
CRI	Ra>80
Product Size	φ230*H85mm
Cutout	φ200mm
Main Materials	Aluminum alloy, PC Cover
Working Temperature	-40~60°C
Lifetime	>35,000hours
Warranty	3 years
Certificate	CE,RoHS

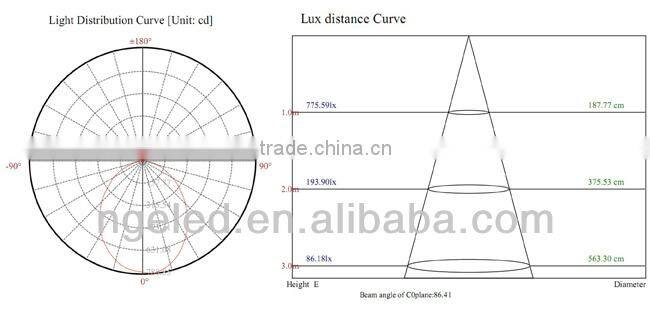

Test Report for 80lm/w 8 Inch 30w samsung smd led downlight with driver

Series products of 80lm/w 8 Inch 30w samsung smd led downlight with driver

Item No.	Watt	Input Voltage	Lumens	Size	Cutout	PF
NGE-SMD02-D10W4	10	AC85-265	750±50LM	φ140*H75mm	φ120mm	>0.90
NGE-SMD02-D12W5	12	AC85-265	900±100LM	φ180*H85mm	φ150mm	>0.90
NGE-SMD02-D15W5	15	AC85-265	1125±100LM	φ180*H85mm	φ150mm	>0.90
NGE-SMD02-D15W6	15	AC85-265	1125±100LM	φ190*H85mm	φ170mm	>0.90
NGE-SMD02-D20W6	20	AC85-265	1500±100LM	φ190*H85mm	φ170mm	>0.90
NGE-SMD02-D25W8	25	AC85-265	1920±100LM	φ230*H85mm	φ200mm	>0.90
NGE-SMD02-D30W8	30	AC85-265	2300±100LM	φ230*H85mm	φ200mm	>0.90

Certificates for 80lm/w 8 Inch 30w samsung smd led downlight with driver

NGE Technology Limited is a professional indoor LED lighting manufacturer and solutions provider.

We are specialized in the LED shop lighting, office Lighting, commercial lighting, LED industrial lighting and residential lighting research and manufacture. Especially, LED shop light, LED tube, LED Panel light, L ED downlight, LED high bay, LED floodlight and LED bulb products are most popular products for us.

NGE Technology owns more than 180 experienced workers,15 persons' R&D team and 8000 square workshop. It is equiped with auto SMT machines, reflow-soldering machine, integrating sphere, goniophotometers machine and inspection instruments, etc.

NGE Technology endeavors to develop new LED lighting products. Our expert R&D team have abundant knowledge of electronic technology, structure technology, thermal management as well as optics design. Almost all of our products are CE certificated and RoHS compliant, and our LED Shop light are UL, PSE, SAA and C Tick approved.

NGE Technology has an excellent overseas sales and after-sales team. NGE products are very popular in Europe, America, Australia, Japan, Middle East and Southeast Asia market now.

We have successfully achieved over 50% annual growth in the turnover in the past 3 years. Let's work together to devote to the new, green and eco-friendly cause for the world.
