Help CenterEpistar SMD CRI>80 8 Inch 16w Ultra Thin Round Led Downlight Malaysia
Related Products
-
80lm/w 8 Inch 30w Smd Samsung Chip Led DownlightUS$ 14.3 - 29.3MOQ: 1 Piece -
High Lumen Super Driver CRI>80 5w Gu10 Cob Led SpotlightUS$ 2.5 - 11.8MOQ: 1 Piece
-
IP65 Waterproof 200w 150w 100w 50w Led Flood LightUS$ 10 - 149.3MOQ: 1 Piece
-
IP65 CE High Lumen Cob Led Floodlight 120wUS$ 10.6 - 162.8MOQ: 1 Piece
-
CRI>80 12 Inch Ultra Thin Round 20 Watt Led Down LightUS$ 10.1 - 23MOQ: 1 Piece
Specifications
led downlight malaysiaEpistar SMD,Ultra thin
PF>0.90,CRI>80,100lm/w
3 years warranty
CE,RoHS approved
Epistar SMD CRI>80 8 inch 16w ultra thin round led downlight malaysia
Product Features for Epistar SMD CRI>80 8 inch 16w ultra thin round led downlight malaysia
1.LED:High Brightness Epistar 2835 SMD,CRI>80,light efficiency >100lm/w;
2.Excellent driver:Conversion efficiency above 85% and PF >0.90;
3.Thermal technology:Advanced technology with first class radiator materials;
4.Perfect light:Ultra-thin casing design,super uniform and soft light;
5.Certificate:CE approval and RoHS compliant;
6.Warranty:3 years.

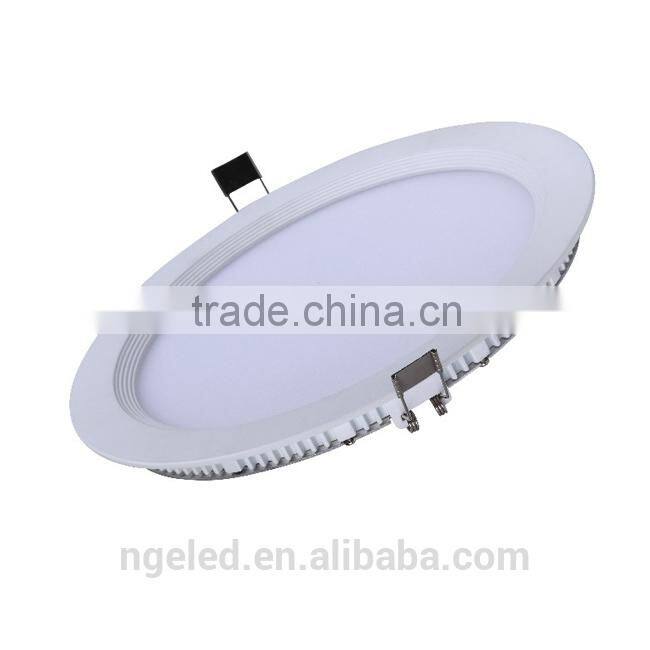

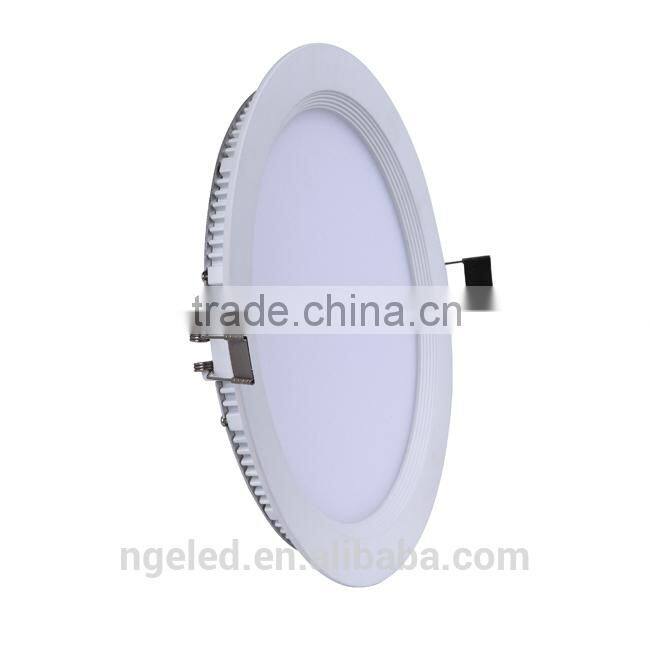

Product pictures of Epistar SMD CRI>80 8 inch 16w ultra thin round led downlight malaysia
Technical parameters for Epistar SMD CRI>80 8 inch 16w ultra thin round led downlight malaysia
| Product Name | led downlight malaysia |
| Item Number | NGE-SMD03-D16W8 |
| Rated Power | 16W |
| Input Voltage | AC85-265V |
| Power Factor | >0.90 |
| LED Type | Epistar 2835 SMD |
| Luminous Flux | 1040lm±100lm |
| Color Temperature | 3000-3500K,4000-4500K,5500-6500K |
| CRI | Ra>80 |
| Product Size | φ240*H18mm |
| Cutout | φ220mm |
| Main Materials | Aluminum alloy and tempered glass |
| Working Temperature | -40~60°C |
| Lifetime | >35,000hours |
| Warranty | 3 years |
| Certificate | CE,RoHS |
Series products of Epistar SMD CRI>80 8 inch 16w ultra thin round led downlight malaysia
| Part No. | Specification | |||||||
| Rated Power | Input Voltage | Color Temperature | Luminous flux | Size | Cutout | Power Factor | Equal to traditional downlight | |
| NGE-SMD03-D8W4 (4 Inch) | 8W | AC85~265V 50~60Hz | 3000k-3500k | 520lm±50lm | φ145*H18mm | φ130mm | >0.90 | 20W |
| 4000k-4500k | ||||||||
| 5500k-6500k | ||||||||
| NGE-SMD03-D12W5 (5 Inch) | 12W | AC85~265V 50~60Hz | 3000k-3500k | 780lm±100lm | φ180*H18mm | φ160mm | >0.90 | 30W |
| 4000k-4500k | ||||||||
| 5500k-6500k | ||||||||
| NGE-SMD03-D16W8 (8 Inch) | 16W | AC85~265V 50~60Hz | 3000k-3500k | 1040lm±100lm | φ240*H18mm | φ220mm | >0.90 | 40W |
| 4000k-4500k | ||||||||
| 5500k-6500k | ||||||||
| NGE-SMD03-D20W12 (12 Inch) | 20W | AC85~265V 50~60Hz | 3000k-3500k | 1300lm±100lm | φ300*H18mm | φ280mm | >0.90 | 50W |
| 4000k-4500k | ||||||||
| 5500k-6500k | ||||||||
Certificates for Epistar SMD CRI>80 8 inch 16w ultra thin round led downlight malaysia
Packaging for 16w ultra thin round led downlight malaysia: 10pcs/ctn (12KG);
Shipping for 16w ultra thin round led downlight malaysia: by express, by air, by sea
Any quantity of sample 16w ultra thin round led downlight malaysia is available;
Lingting solution for 16w ultra thin round led downlight malaysia can be provided;
Good and professional after-sales services for 16w ultra thin round led downlight malaysia.
Manufacturer of Epistar SMD CRI>80 8 inch 16w ultra thin round led downlight malaysia
NGE Technology Limited is a professional indoor LED lighting manufacturer and solutions provider.
We are specialized in the LED shop lighting, office Lighting, commercial lighting, LED industrial lighting and residential lighting research and manufacture. Especially, LED shop light, LED tube, LED Panel light, LED downlight, LED high bay, LED floodlight and LED bulb products are most popular products for us.
NGE Technology has more than 180 experienced workers,15 persons' R&D team and 8000 square workshop. It is equiped with auto SMT machines, reflow-soldering machine, integrating sphere, goniophotometers machine and inspection instruments, etc.
NGE Technology endeavors to develop new LED lighting products. Our expert R&D team have abundant knowledge of electronic technology, structure technology, thermal management as well as optics design. Almost all of our products are CE certificated and RoHS compliant, and our LED Shop light are UL, PSE, SAA and C Tick approved.
NGE Technology has an excellent overseas sales and after-sales team. NGE products are very popular in Europe, America, Australia, Japan, Middle East and Southeast Asia market now.
We have successfully achieved over 50% annual growth in the turnover in the past 3 years. The turnover in 2012 is estimated to be 12 million US dollars. Let's work together to devote to the new, green and eco-friendly cause for the world.
