CE RoHS Ra80 36w 8ft Led Tube Light With Transparent & Frosted PC Cover

CE RoHS Ra80 36w 8ft Led Tube Light With Transparent & Frosted PC Cover thumbnail-1
CE RoHS Ra80 36w 8ft Led Tube Light With Transparent & Frosted PC Cover photo-1
US$ 9 - 21.9 MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
Epistar SMD 2835
Warranty(Years):
3
Input Voltage(V):
AC100~240V, 50-60Hz
Contact Supplier Request Quote Chat Now
Shenzhen NGE Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Epistar SMD 2835
Warranty(Years) 3
Input Voltage(V) AC100~240V, 50-60Hz
Lamp Power(W) 36
Lamp Luminous Flux(lm) 4140lm±5%
Lamp Luminous Efficiency(lm/w) 115
Color Temperature(CCT) Other, 3000K~3500K,4000K~4500K,5500K~6500K
Working Temperature(℃) -30, 60
Working Lifetime(Hour) 350000
Lamp Body Material Other, Aluminum, Clear PC / Frosted PC
IP Rating Other, IP22
Certification CE, EMC, FCC, LVD
Brand Name NGE or OME
Model Number T8

Specifications

8ft led tube light
Epistar smd,115lm/w
CRI>80,PF>0.9
Rotatable end cap,one end input
CE,RoHS,3 years warranty

CE RoHS Ra80 36w 8ft led tube light with transparent & frosted PC cover



LED tubes are the ideal replacement for the conventional fluorescent tube, energy saving up to 60%.

Used high brightness SMD LED and super internal constant current driver, designed with advanced thermal management technology,

NGE LED tubes are much better than most similar LED tubes in the market.


Product Description



CE RoHS Ra80 36w 8ft led tube light with transparent & frosted PC cover



Product Features of CE RoHS Ra80 36w 8ft led tube light with transparent & frosted PC cover



1. LED:Taiwan Epistar 2835 LED, CRI>80, light efficiency of tube 115lm/w;

2. Super driver: Conversion efficiency above 90% and power factor reach to 0.90;

3. Thermal technology: Advanced technology with first class radiator materials;

4. Modular Structure, easy assembly and disassembly, rotatable end cap design and one end input design available;

5. Both clear and frosted PC cover available;

6. Certificate: CE approval and RoHS compliant;

7. Warranty: 3 years.



CE RoHS Ra80 36w 8ft led tube light with transparent & frosted PC cover





Technical Parameters of CE RoHS Ra80 36w 8ft led tube light with transparent & frosted PC cover





Product Name

8ft led tube light

Model No.

         NGE-T801-240CM-T36W

Rated Power

36W

Input Voltage

AC100~240V 50~60Hz

Light Source

Epistar 2835 LED

Dimension

L2400*D30mm

CRI

>Ra80

Color Temperature

3000K~3500K,4000K~4500K,5500K~6500K

Lumens

     4140lm±5%

Luminous Efficiency

115lm/w

Equal to fluorescent

110W fluorescent+Ballasts consumption

Power Factor

>0.9

Materials

Aluminum Shell, PC Cover, Aluminum PCB

PC Cover

Clear PC /  Frosted PC

Life expectancy

L70>35,000 hours

Warranty

3 Years

Certificates

CE, RoHS



Trade Info



Trade Terms

 EXW, FOB, CIF
Payment Terms T/T, Paypal, West Union, L/C
Payment Condition

in advance for samples;

50% deposit and 50% balance paid before shipment
Packing Neutral carton
Delivery Time 5-7 working days for samples; 15-20 working days for formal bulk order
Shipping By sea, by air, by express



CE RoHS Ra80 36w 8ft led tube light with transparent & frosted PC cover



Product Pictures of CE RoHS Ra80 36w 8ft led tube light with transparent & frosted PC cover



 CE RoHS Ra80 36w 8ft led tube light with transparent & frosted PC coverCE RoHS Ra80 36w 8ft led tube light with transparent & frosted PC cover

CE RoHS Ra80 36w 8ft led tube light with transparent & frosted PC cover



CE RoHS Ra80 36w 8ft led tube light with transparent & frosted PC cover

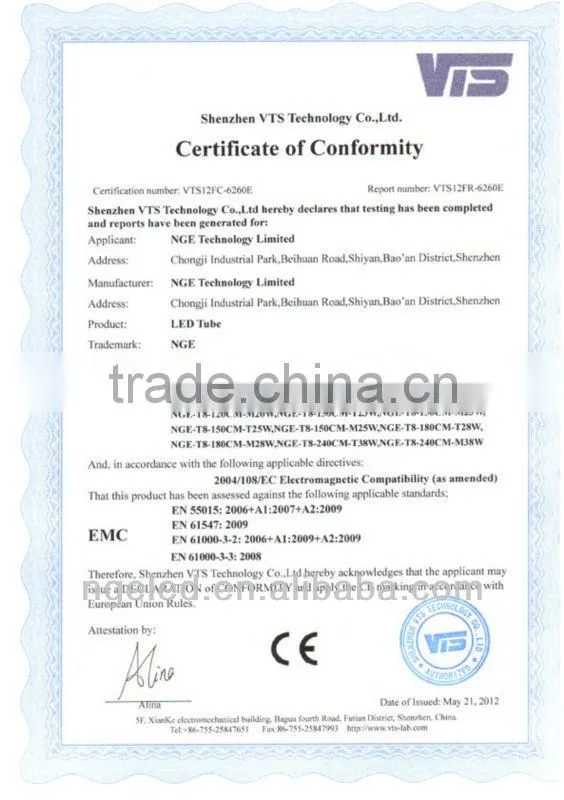

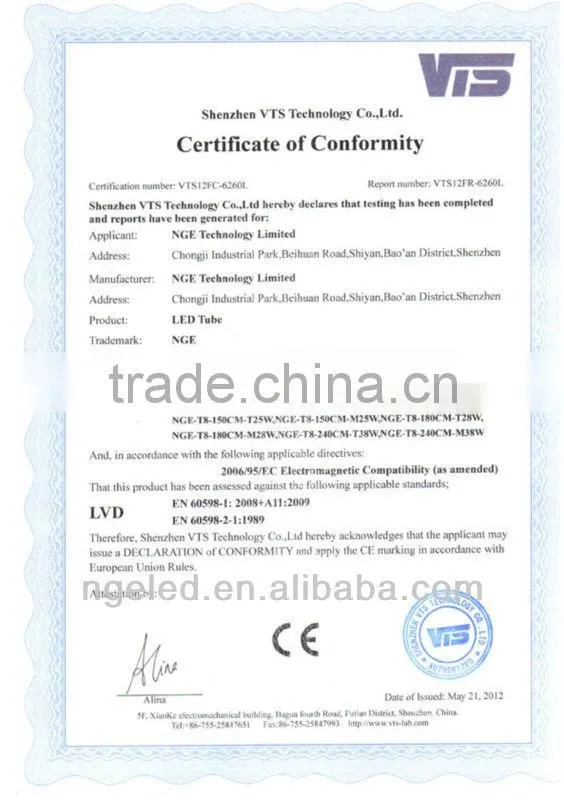

Certificates of CE RoHS Ra80 36w 8ft led tube light with transparent & frosted PC cover



CE RoHS Ra80 36w 8ft led tube light with transparent & frosted PC coverCE RoHS Ra80 36w 8ft led tube light with transparent & frosted PC cover



CE RoHS Ra80 36w 8ft led tube light with transparent & frosted PC cover

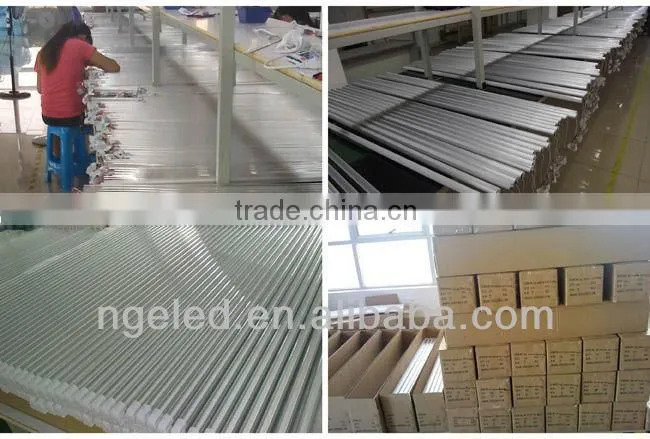

Production Pictures of CE RoHS Ra80 36w 8ft led tube light with transparent & frosted PC cover





CE RoHS Ra80 36w 8ft led tube light with transparent & frosted PC cover









CE RoHS Ra80 36w 8ft led tube light with transparent & frosted PC cover



Series Products of CE RoHS Ra80 36w 8ft led tube light with transparent & frosted PC cover



Part No. Specification
Rated Power Input Voltage Luminous flux Materials Power Factor    Equal to traditional fluorescent tube
NGE-T801-60CM-T10W  10W AC170~265V  50~60Hz 1150lm±5% Aluminum&Clear PC >0.9 20W
NGE-T801-60CM-M10W (Hot) 10W AC170~265V  50~60Hz 980lm±5% Aluminum&Frosted PC >0.9 20W
NGE-T801-90CM-T14W 14W AC170~265V  50~60Hz 1610lm±5% Aluminum&Clear PC >0.9 30W
NGE-T801-90CM-M14W 14W AC170~265V  50~60Hz 1370lm±5% Aluminum&Frosted PC >0.9 30W
NGE-T801-120CM-T18W 18W AC170~265V 50~60Hz 2070lm±5% Aluminum&Clear PC >0.9 40W
NGE-T801-120CM-M18W (Hot) 18W AC170~265V  50~60Hz 1760lm±5% Aluminum&Frosted PC >0.9 40W
NGE-T801-120CM-T20W 20W AC170~265V 50~60Hz 2300lm±5% Aluminum&Clear PC >0.9 40W
NGE-T801-120CM-M20W (Hot) 20W AC170~265V  50~60Hz 1960lm±5% Aluminum&Frosted PC >0.9 40W
NGE-T801-150CM-T23W 23W AC170~265V  50~60Hz 2650lm±5% Aluminum&Clear PC >0.9 58W
NGE-T801-150CM-M23W 23W AC170~265V  50~60Hz 2250lm±5% Aluminum&Frosted PC >0.9 58W
NGE-T801-150CM-T25W 25W AC170~265V  50~60Hz 2875lm±5% Aluminum&Clear PC >0.9 58W
NGE-T801-150CM-M25W (Hot) 25W AC170~265V  50~60Hz 2450lm±5% Aluminum&Frosted PC >0.9 58W
NGE-T801-150CM-T28W 28W AC170~265V  50~60Hz 3220lm±5% Aluminum&Clear PC >0.9 58W
NGE-T801-150CM-M28W  28W AC170~265V  50~60Hz 2740lm±5% Aluminum&Frosted PC >0.9 58W
NGE-T801-180CM-T28W 28W AC170~265V  50~60Hz 3220lm±5% Aluminum&Clear PC >0.9 70W
NGE-T801-180CM-M28W 28W AC170~265V  50~60Hz 2740lm±5% Aluminum&Frosted PC >0.9 70W
NGE-T801-240CM-T36W 36W AC170~265V 50~60Hz 4140lm±5% Aluminum&Clear PC >0.9 110W
NGE-T801-240CM-M36W 36W AC170~265V  50~60Hz 3530lm±5% Aluminum&Frosted PC >0.9 110W






Company Information



Manufacturer of CE RoHS Ra80 36w 8ft led tube light with transparent & frosted PC cover

CE RoHS Ra80 36w 8ft led tube light with transparent & frosted PC cover





NGE Technology Limited is a professional indoor LED lighting manufacturer and solutions provider.



We are specialized in the LED shop lighting, office Lighting, commercial lighting, LED industrial lighting and residential lighting research and manufacture. Especially, LED shop light, LED tube, LED Panel light, LED downlight, LED high bay, LED floodlight and LED bulb products are most popular products for us.



NGE Technology has more than 180 experienced workers,15 persons' R&D team and 8000 square workshop. It is equipped with auto SMT machines, reflow-soldering machine, integrating sphere, goniophotometers machine and inspection instruments, etc.



NGE Technology endeavors to develop new LED lighting products. Our expert R&D team have abundant knowledge of electronic technology, structure technology, thermal management as well as optics design. Almost all of our products are CE certificated and RoHS compliant, and our LED Shop light are UL, PSE, SAA and C Tick approved.



NGE Technology has an excellent overseas sales and after-sales team. NGE products are very popular in Europe, America, Australia, Japan, Middle East and Southeast Asia market now.



We have successfully achieved over 50% annual growth in the turnover in the past 3 years. Let's work together to devote to the new, green and eco-friendly cause for the world.
