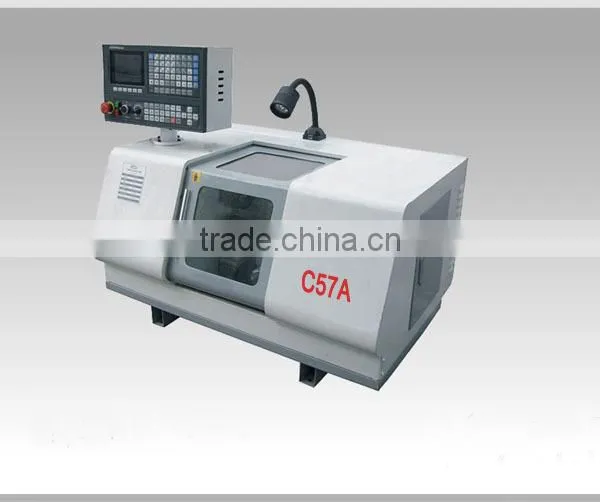

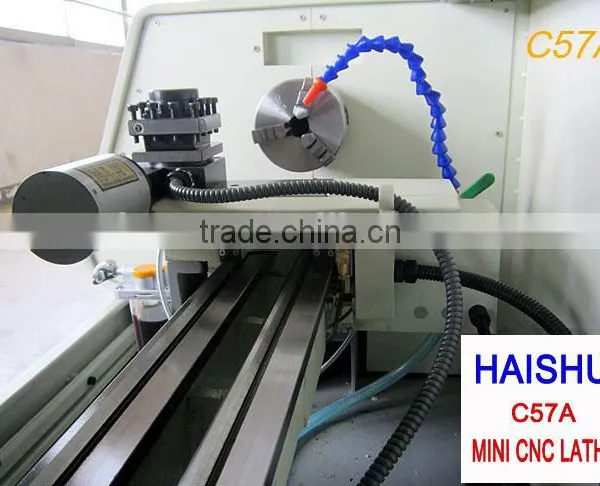

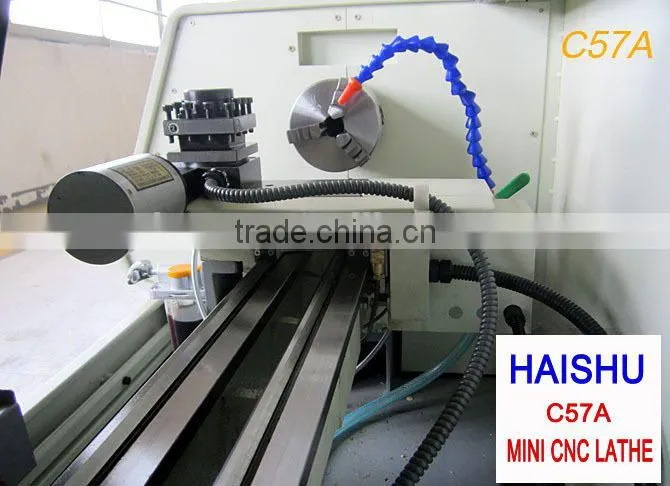

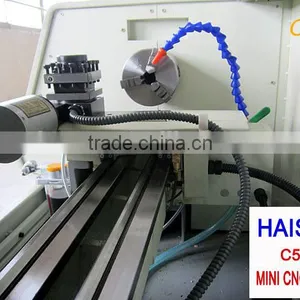

high quality C57A lathe cnc mini
Technical parameters
| |
Maximum turning diameter over bed |
200mm |
The maximum clamping diameter |
80mm |
The length of machine |
400mm |
X-axis maximum stroke |
80mm |
Z-axis maximum stroke |
280mm |
Spindle speed |
300~1750rpm±10% |
The maximum speed |
2000mm/min |
Z fast-moving speed |
2000mm /min |
X fast-moving speed |
1000mm /min |

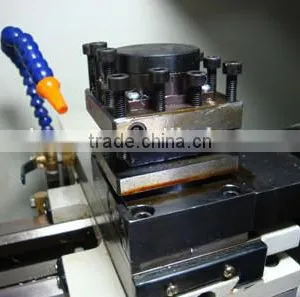

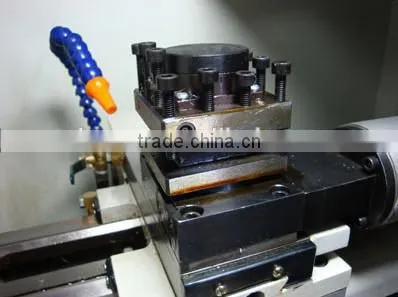

Position of electric turret |
4 |
Turret angle |
360 ° |
Rotary cutting tool precision |
0.005mm |
Spindle bore diameter |
20mm |
Cooling system |
yes |
Threading function |
yes |
Spindle tater |
MT3 |
Tail shaft taper |
MT2 |
Mechanical resolution |
0.0125mm |
Power |
500W |
Handwheel |
Electronic handwheel |
Wire rod |
C5 |
Weight |
145/160kg |
Dimensions(L*W*H) |
1000× 700 × 580 |
Packing size |
1100 × 800 ×680 |
CNC system |
GSK928TEa |
Swing over bed:200MM
Machine bed length:400MM
Max Clamping diameter:80MM
Spindle speed:300-1750RPM
Taper of spindle hole:MT#3
Travel speed of Z axis:2000MM/Min
Travel speed of X axis:1000MM/Min
Travel of Z axis:280MM
Travel of X axis:80MM
Tool charger:4 tools
Taper of tailstock:MT#2
Precision of return back:0.005MM
Output power:500W
CNC Controller:HNC-18XP-TD or GSK 928TEa or Sinumerik 808D
Machine dimension:1000*700*580MM
Packing Size:1100*800*680MM
Net weight/Gross weight:145/160KGS
Taian Haishu Machinery Co.,Ltd.,is specializing in the electromechanical integration prodrcts.
collection development,manufacturing,sales in the integration of high-tech enterprises.
The leading product is "HAISHU" brand CNC lathe,CNC milling machine,Machining
center,etc.We can supply the top quality products at the most favouriable price.
80% of our products is sold to aboard such as U.S.A.,Germany,Italy,Turkey,Greece,
India.Our products have enjoyde a high reprtation over there.
If we can cooperate with each other,I think we will build a very happy relationships with each other!
Looking forward to your specific inquiries.
Taian Haishu Machinery Co.,Ltd.
Tel:0086-538-8606989
Fax:0086-538-8606949
Mobile phone:0086-13562857553
Skype:smsm741230
