swiss lathe CNC20Z-5 high precision swiss cnc automatic lathe
1.use imported NSK bearings, THK line rail screw, High progress and high life
2 no guide set, fixed set of free choice, Save material and high yield. Optional
conductance sets.Linkage guide set,Benefit is better.
3 spindle oil cooling type electric spindle, high speed and no dead angle cooling, than ordinary wind cooling electric spindle cooling more uniform, more performance.
4 this machine adopts the absolute operation, no need to switch back to the origin, time saving, labor.
5 flexible and changeable cutter design, matching freely.
6.24 hours continuously electricity, high efficiency, save labor
7.8 inventions, 26 utility model patents, the national patent office legal protection, and cooperation with the Wenzhou chamber of Commerce
8 the overall appearance is generous, the shape is novel and outstanding, and constantly improve and optimize

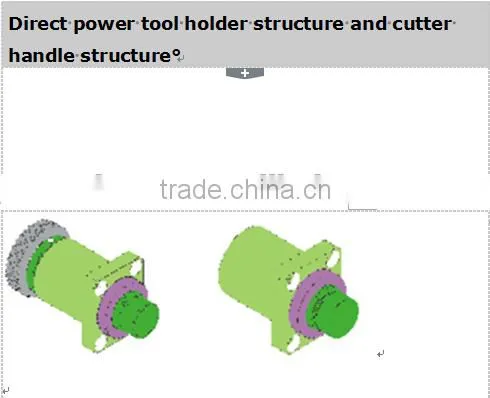

9.Countershaft Optional boring tool holder,Replaceable power head.One machine easy to achieve
10.after Parts forming,Countershaft Discharging,The conveyor belt automatic out
|
|

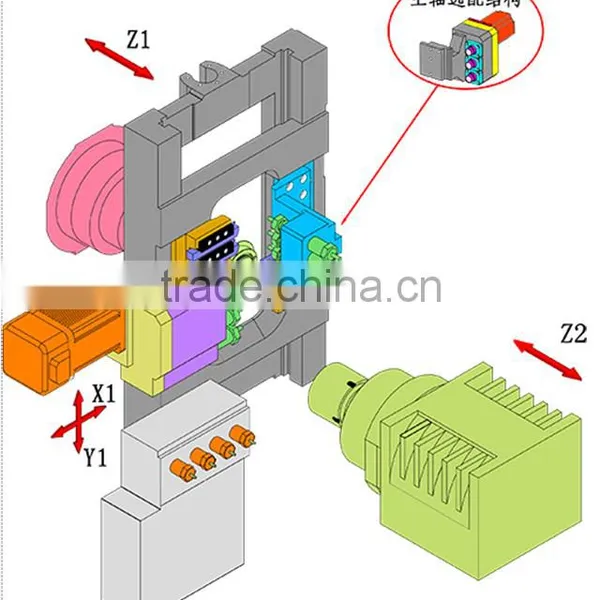

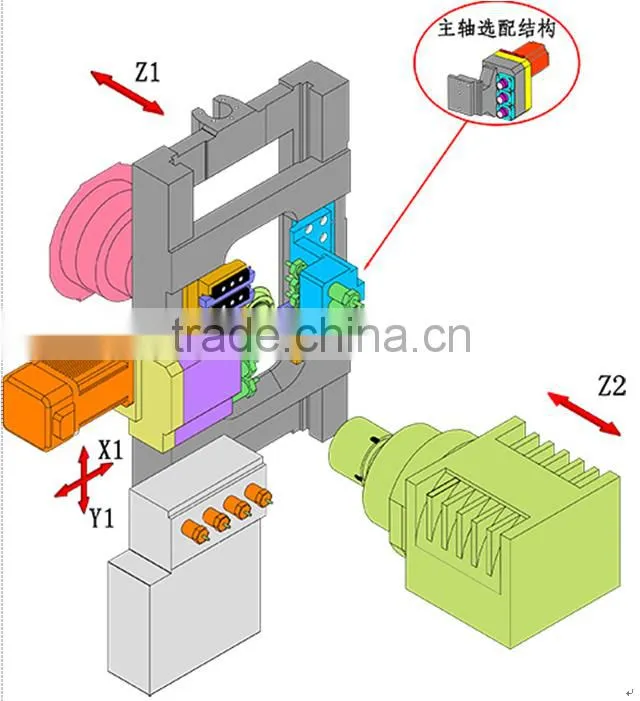

Y2 group of institutional swap combination
1,4 boring cutter2,can change 3 boring cutter+1power head3,can change 2 boring cutter+2 power head4,can change 1 boring cutter +3power head5,cna change 4 power head |
Related parameters |
Spindle parameters |
Spindle hole diameter |
The max. bar |
Collet type |
No set of guide technology |
Spindle center to ground height |
Spindle unlimited indexing |
Spindle once feeding trip |
C axis Minimum indexing |
C axis Function |
Φ22 |
Φ20 |
TsugamiS20 |
yes |
975mm |
yes |
290mm |
0.001 |
yes |
System parameters |
OS |
Spindle countershaft power |
Basal rotational speed |
Maximum speed |
Minimum setting unit |
Control axis number |
Hand wheel simulation |
SYNTEC 200TA |
3.7KW |
200 |
8000 |
0.001mm |
8 |
yes |
X/Z axis |
Xaxis stroke |
Zaxis stroke |
Yaxis stroke |
X2axis stroke |
Z2axis stroke |
X/Y/Z/X2/Y2/Z2 axis Servo motor power |
X/Y/Z/X2/Y2/Z2 Fast feed speed |
50mm |
400mm |
165mm |
325mm |
320mm |
0.75KW |
24m/min |
Machine precision |
X/Y/Z Repeat accuracy |
X/Y/Z Positioning accuracy |
±0.001 |
0.002 |
other |
out Diameter tools numbe |
inner Diameter tools number |
Side milling tool number |
Power seat hole |
Out diameter toos spec. |
Inner diameter tools spec. |
Side milling tool spec. |
size |
power |
Weight
|
Power supply capacity |
5 |
4+4 |
4 |
4 |
12*12 |
ER 11/16 |
ER 16×4 |
2600*1670*1950 mm |
12KW |
3220 kgs |
21KW |
Select configuration |
Synchronous rotating guide sleeve |
Whirlwind milling |
End milling cutter Power |
Deep hole drilling |
Back shaft power seat |
Long material support device |
Conveyer belt |
yes |
/ |
yes |
yes |
yes |
no |
yes |
