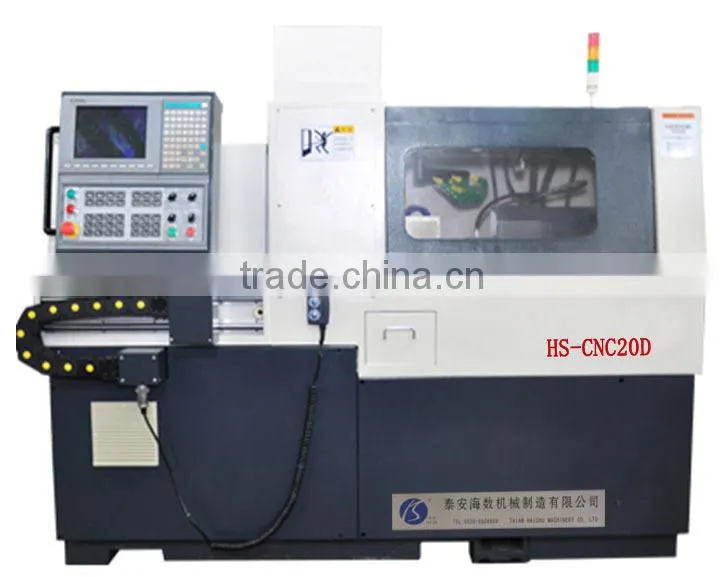

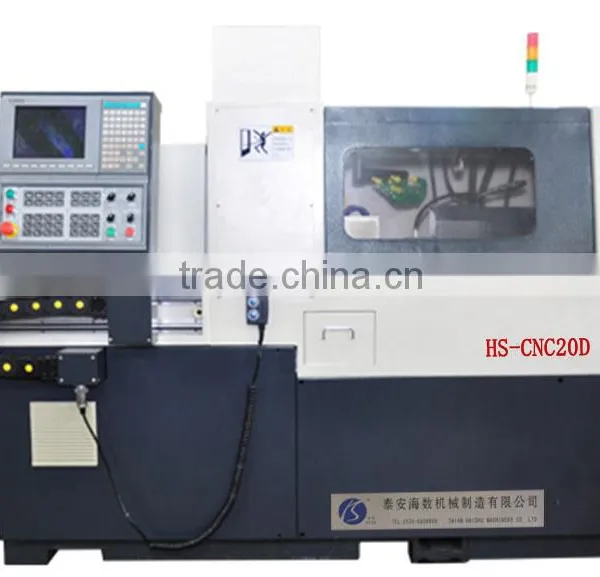

2015,high quality and low price HS-CNC20D swiss cnc automatic lathe
v
2015,high quality and low price HS-CNC20D swiss cnc automatic lathe
1.Standard configuration:
No. |
Name |
Model or specification |
Remark |
|
The main parameters: | |||
1 |
Standard CNC control system |
Taiwan's new generation |
|
2 |
Max diameter |
φ20 |
|
3 |
Max processing length (1 clamping) |
245 |
|
4 |
Positive spindle nose max drilling diameter |
φ10 |
|
5 |
Positive spindle nose max drilling depth |
40 |
|
6 |
Spindle-through-hole diameter |
φ23 |
|
7 |
Spindle rotation speed |
60~6000rpm |
|
8 |
Maximum tool max diameter |
4xφ10 |
|
9 |
rotary tool maximum speed |
5500rpm |
|
10 |
The maximum diameter of the back spindle chuck |
φ20 |
|
11 |
back spindle nose maximum drilling diameter |
φ10 |
|
12 |
The back spindle rotation speed |
60~6000rpm |
|
The number of installations of tool | |||
13 |
Row of knives turning tools |
6 |
|
14 |
Rotary tool |
4 |
|
15 |
Positive drilling tool |
5 |
|
16 |
The back side of the drilling tool |
4 |
|
Tool size | |||
17 |
Tool (row knife) |
12X12 |
|
Chuck bushings | |||
18 |
Spindle collet |
Jinshang S20 |
|
19 |
Bushing |
JinshangS20 |
|
20 |
Back spindle collet |
JinshangS20 |
|
21 |
Rotary tool chuck |
4xER16 |
|
22 |
Bored with the chuck sleeve |
ER16 |
|
Rapid feed rate | |||
23 |
X1 |
18m/min |
|
24 |
Y |
24m/min |
|
25 |
Z1 |
24m/min |
|
26 |
X2 |
24m/min |
|
27 |
Z2 |
24m/min |
|
Motor | |||
28 |
Spindle motor |
3.0KW |
|
29 |
Rotary tool motor |
0.75KW |
|
30 |
Back spindle motor |
3.0KW |
|
31 |
Axis motor |
0.75KW |
|
32 |
Center height |
1050mm |
|
33 |
Power capacity |
15KVA |
|
34 |
Air pressure pneumatic device |
0.4MPa |
|
35 |
Machine weight |
3500Kg |
|
36 |
Machine dimensions (length X width X height) |
2100X1350X1800(mm) |
|
The main criteria in Annex | |||
37 |
Cutting oil installations |
√ |
|
38 |
Centralized lubrication system |
√ |
|
39 |
Power Tool |
√ |
|
40 |
Lighting |
√ |
|
41 |
Cabinet cooling system |
√ |
|
42 |
Fully enclosed protective cover |
√ |
|
43 |
Short pieces of artifacts splice device |
√ |
|
44 |
Synchronously rotating guide sleeve device |
√ |
|
Special Select Accessories | |||
45 |
Mixed guide sleeve (no guide sleeve structure Accessories) |
|
optional |
46 |
Workpiece length piece splice device |
|
optional |
47 |
Y2 + rear axle shaft power head |
|
optional |
48 |
spindle nose power head |
|
optional |
49 |
Deep Hole Drilling Parts |
|
optional |
| |||
