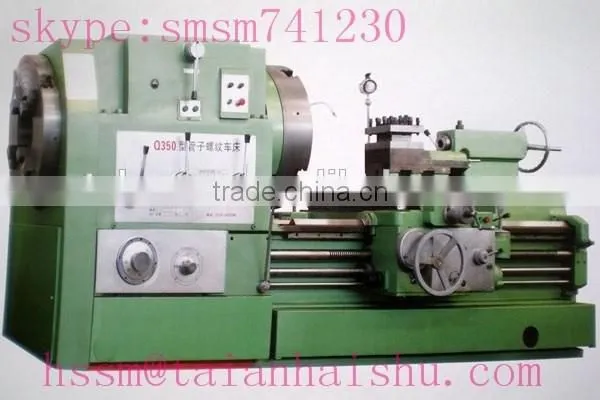

Help CenterQ350 Pipe Threading Lathe Machine With High Quality and Best Price From Taian Haishu
Related Products
-
Pipe Threading Lathe Q1327 Pipe Thread Lathe and Machinery Metal WorksNegotiableMOQ: 1 Set -
Threading Machine CKG1313B Cnc Pipe Threading Lathe Machine With Good PriceUS$ 9,000 - 18,000MOQ: 1 Set
-
Pipe Threading Lathe Machine Q350 Pipe Thread Lathe and Small Scale Industries MachinesNegotiableMOQ: 1 Set
-
Q245 Pipe Thread Lathe Machine With CE CertificationUS$ 30,000 - 100,000MOQ: 1 Set
-
Three-jaw Chuck Cnc Engraving Machine CKG1343B/CKG1350B Cnc Pipe Thread LatheNegotiableMOQ: 1 Set
SPECIFICATIONS
Outline size | ||
L: 3550mm |
W: 900mm |
|
H: 1630mm |
Machine weight: 8200kg |
|
| ||
Max.swing diameter on the bed 1000mm |
Diameter of pipe 114-350 |
|
Max.outside diameter of pipe 1000-6000mm |
Max. taper 1:4 |
|
Tails quill diameter 930mm | ||
Spindle | ||
Spindle bore 350mm |
Level of spindle speed 9 |
|
Range of spindle speed foreward 6.6-198r /min |
Reversal 13.5-200.9r/min |
|
Feed system | ||
Vertical and horizontal feed species 32 | ||
Thus feed range | ||
Processing metric thread number 24 |
Transverse 0.04-0.72mm |
|
Inch thread processing number 24 |
Longitudinal0.1-1.44mm |
|
Pitch processing metric thread 1-15mm | ||
Inch thread processing pitch 1-15t.p.i | ||
Saddle longitudinal moving speed 4m/min | ||
The slide board box handwheel rotates a saddle longitudinal travel 1mm | ||
Tool carrier |
|
|
The surface of the knife section size 30×30mm |
|
|
The knife frame dial rotates every one stroke of knife 0.05mm | ||
The lower sliding plate dial rotates one grid knife stroke 0.1mm | ||
Spindle center line to the tool installation datum vertical distance 33mm | ||
The tailstock | ||
Top sleeve diameter 100mm |
Top sleeve travel 250mm |
|
Top sleevetaper Morse6 |
Tailstock lateral movement amount ±15mm |
|
The top taper Morse6 | ||
The power part | ||
Gear pump belt 1-A800 |
Rapid motor NY80-4 1.1KW 1350r/min 380v |
|
The main motorbelt B1727 |
Clamping motor YXZ90-L-4 1.5KW 1400r/min 380v |
|
Gear pump CB-B6 2.5Mpa 1450r/min |
The main motor Y180M-4 18.5KW 1470r/min 380v |
|
