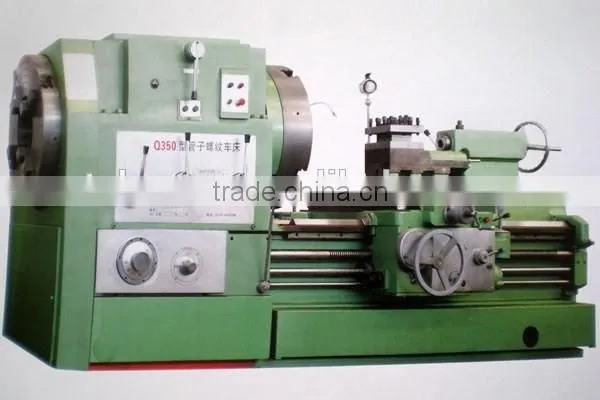

pipe threading lathe machine Q350 pipe thread lathe and small scale industries machines
SPECIFICATIONS
Outline size | ||
L: 3550mm |
W: 900mm |
|
H: 1630mm |
Machine weight: 8200kg |
|
| ||
Max.swing diameter on the bed 1000mm |
Diameter of pipe 114-350 |
|
Max.outside diameter of pipe 1000-6000mm |
Max. taper 1:4 |
|
Tails quill diameter 930mm | ||
Spindle | ||
Spindle bore 350mm |
Level of spindle speed 9 |
|
Range of spindle speed foreward 6.6-198r /min |
Reversal 13.5-200.9r/min |
|
Feed system | ||
Vertical and horizontal feed species 32 | ||
Thus feed range | ||
Processing metric thread number 24 |
Transverse 0.04-0.72mm |
|
Inch thread processing number 24 |
Longitudinal0.1-1.44mm |
|
Pitch processing metric thread 1-15mm | ||
Inch thread processing pitch 1-15t.p.i | ||
Saddle longitudinal moving speed 4m/min | ||
The slide board box handwheel rotates a saddle longitudinal travel 1mm | ||
Tool carrier |
|
|
The surface of the knife section size 30×30mm |
|
|
The knife frame dial rotates every one stroke of knife 0.05mm | ||
The lower sliding plate dial rotates one grid knife stroke 0.1mm | ||
Spindle center line to the tool installation datum vertical distance 33mm | ||
The tailstock | ||
Top sleeve diameter 100mm |
Top sleeve travel 250mm |
|
Top sleevetaper Morse6 |
Tailstock lateral movement amount ±15mm |
|
The top taper Morse6 | ||
The power part | ||
Gear pump belt 1-A800 |
Rapid motor NY80-4 1.1KW 1350r/min 380v |
|
The main motorbelt B1727 |
Clamping motor YXZ90-L-4 1.5KW 1400r/min 380v |
|
Gear pump CB-B6 2.5Mpa 1450r/min |
The main motor Y180M-4 18.5KW 1470r/min 380v |
|
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine except of CNC system, which guarantee is three years
2..24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is OK.
If you are interested in our products, welcome to leave a message or send the inquiry to understand the details of machine.
