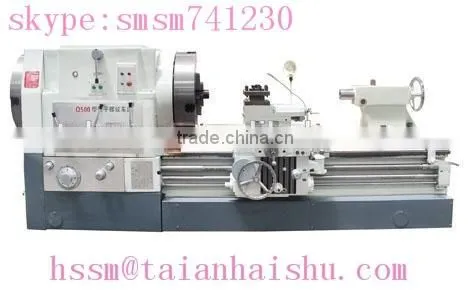

modern machine tools Q500 pipe thread lathe and threading machine
SPECIFICATIONS
Outline size | ||
L: 5000mm |
W: 2100mm |
|
H: 1892mm |
Machine weight: 10000Kg |
|
Max.swing diameter on the bed 800mm |
Diameter of pipe 280-508 |
|
Max.outside diameter of pipe 1000-6000mm |
Max. taper 1:4 |
|
Tails quill diameter 930mm | ||
Spindle | ||
Spindle bore 515mm |
Level of spindle speed 9 |
|
Range of spindle speed 4.9-180r/min |
|
|
Feed system | ||
Vertical and horizontal feed species 32 | ||
Thus feed range | ||
Processing metric thread number 32 |
Transverse 0.06-0.89mm |
|
Inch thread processing number 31 |
Longitudinal0.36-5.36mm |
|
Pitch processing metric thread 1-15mm | ||
Inch thread processing pitch 2-30t.p.i | ||
Saddle longitudinal moving speed 2.5m/min | ||
The slide board box handwheel rotates a saddle longitudinal travel 1mm | ||
Tool carrier |
|
|
The knife frame maximum stroke 210mm |
The surface of the knife section size 30×30mm |
|
The cutter turntable rotation angle ±90° |
|
|
The knife frame dial rotates every one stroke of knife 0.05mm | ||
The lower sliding plate dial rotates one grid knife stroke 0.05mm | ||
Spindle center line to the tool installation datum vertical distance 53mm | ||
The tailstock | ||
Top sleeve diameter 140mm |
Top sleeve travel 360mm |
|
Top sleevetaper Morse6 |
Tailstock lateral movement amount ±15mm |
|
The top taper Morse6 | ||
The power part | ||
Gear pump belt CB-B6 |
Rapid motor JCO2-21-23 1.5kw 2850r/MIN 380v |
|
The main motor belt B1700 |
Clamping motor yxz90-l-4 1.5KW 1400r/min 380v |
|
Gear pump CB-B6 2.5Mpa 1450r/min |
The main motor y180l-4-b3 22kw 1470r/min |
|
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine except of CNC system, which guarantee is three years
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is OK.
If you are interested in our products, welcome to leave a message or send the inquiry to understand the details of machine.
