Pipe Threading Machine CKG1335E Cnc Pipe Threading Lathe

FOB Price

US$ 38,000 - 72,000 / Set

1 Set(Min. Order)

Port QINGDAO
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
CNC or Not	CNC	Automatic Grade	Automatic
Max. Swing Diameter	1000mm	Place of Origin	Shandong, China
Brand Name	HAISHU	Model Number	CKG1335E
Voltage	380v 50hz	Power(W)	18.5kw
Dimension(LWH)	3700x1880x1800mm	Weight	5600kg
Certification	CE ISO9001:2008	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

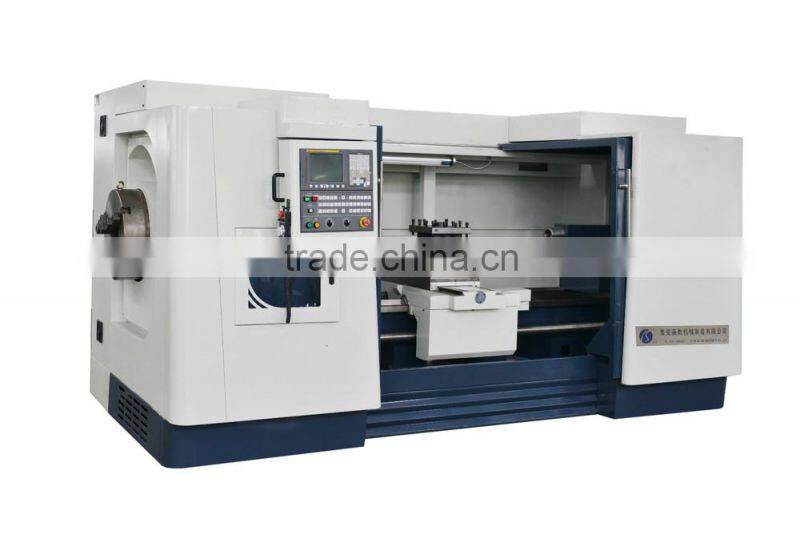

pipe threading machine CKG1335E cnc pipe threading lathe

Main features:

1.Overall casting bed,rail width 660mm, heavy weight, good rigidity and stability;

2.Three gears mechanical transmission, frequency stepless speed regulation.

Standard configuration

1.CNC system :GSK980 TDc,

2.The spindle three gears frequency conversion speed,

3.Front and rear three-jaw manual chuck,

4.Vertical four-position electric turret,

5.With tailstock,

6.Automatic lubrication system,

7.Turning cooling system.

Select Configure

1.CNC system :KND, Siemens, Fanuc,

2.Electric chuck, pneumatic chuck, hydraulic chuck,

3.Horizontal six-position electric turret,

4.The rear bracket.

Item	Unit	Specification
Item	Unit	CKG1319E	CKG1327E	CKG1335E
Max. swing diameter on the bed	mm	Φ800	Φ800	Φ1000
Max. swing diameter on the sliding plate	mm	Φ480	Φ480	Φ650
Max.turning length	mm	1500
Bed rail width	mm	660
The main drive in the form		Three gears to change speed, Stepless change frepuency
Range of spindle speed	r/min	22~540	18~450	15~400
Max.outside diameter of pipe	mm	φ185	φ275	Φ350
Spindle bore	mm	φ190	φ280	Φ360
Main motor power	kw	15	15	18.5
Max.stroke of the turret	mm	X: 480 Z: 1520
Speed of quick travel	mm/min	X: 4000 Z: 5000
Positioning accuracy	mm	0.032
Repeatability positioning accuracy	mm	0.011
Turret form		Four-station ,Vertical
Tool section size	mm	40×40
Tailstock quill diameter	mm	Φ100
Tailstock quill stroke	mm	300
Tailstock sleeve taper		MT5
Machine weight	Kg	4800	5000	5600
Outline size (L × W× H)	mm	3700×1800×1760	3700×1800×1760	3700×1880×1860
CNC system		(standard):GSK980 (optional):FANUC SIEMENS

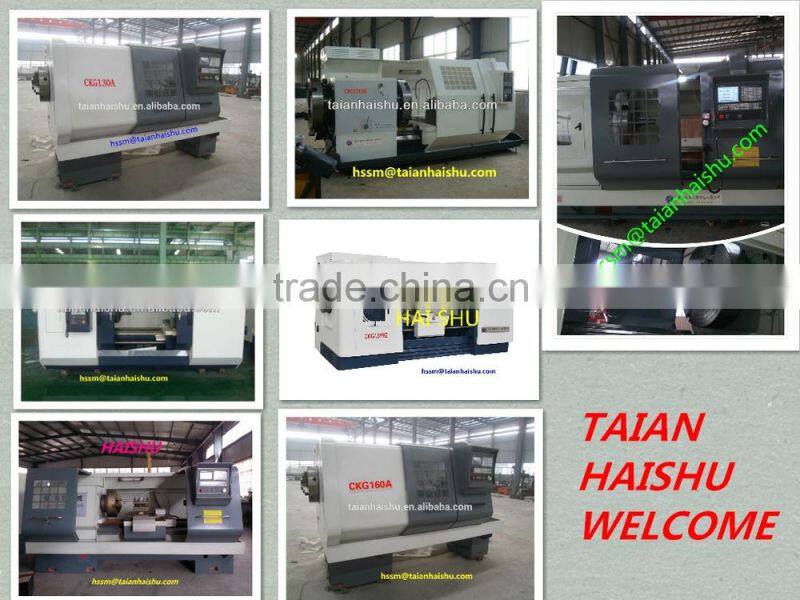

Our CNC pipe thread lathe is a mature product series, including CKG160A/130A/1322A/1335A/1319B-1/1327B-1/1335B-1/1313B/1319B/1322B/1327B/1330B/1335B/1343B/1350B ,to meet of the requirements of different customers for different workpiece.

GUARANTEE AND AFTER-SALE SERVICES:

1.one year guarantee for whole machine except of CNC system, which guarantee is three years

2.24-hours technical support by E-mail or telephone

3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD

4.Provide extra accessories for the machine

5.Also provide service of make program according to your drawings

6.Customized or special design is welcome.

If you are interested in our products, welcome to leave a message or send the inquiry to understand the details of machine.
