High Quality and Low Price CKG1350B CNC Pipe Thread Lathe

Name: High Quality and Low Price CKG1350B CNC Pipe Thread Lathe
Brand: Haishu
SKU: 128534381
Availability: InStock

US$ 100,000 - 150,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

CNC

Taian Haishu Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not CNC

Automatic Grade Automatic

Max. Swing Diameter 1000mm

Place of Origin Shandong, China

Brand Name Haishu

Model Number CKG1350B

Voltage 380

Power(W) 25000w

Dimension(L*W*H) 5000*2000*2000

Weight 13000kg

Certification CE , ISO

After-sales Service Provided Overseas third-party support available

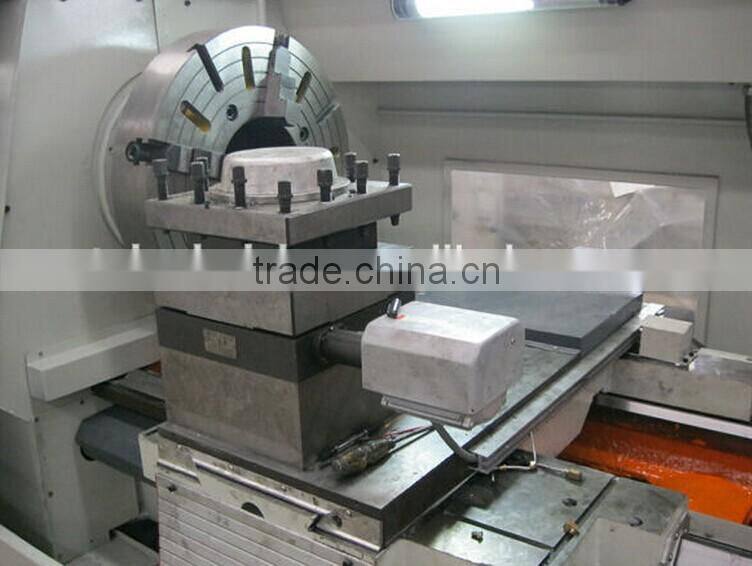

High quality and low price CKG1350B CNC pipe thread lathe

Technical parameters

Item	Unit	Specification
		CKG1343B	CKG1350B
Processing pipe thread diameter range	mm	φ270-435	φ270-500
Maximum workpiece swing diameter over bed	mm	1000
Maximum workpiece swing diameter skateboard	mm	610
Maximum distance between centers	mm	1500
Bed rail width	mm	755
Maximum distance across the dual chuck	mm	1940
Spindle bore diameter	mm	φ445	φ510
Spindle speed mode	mm	Tow steps,Frequency stepless
Spindle speed range	rpm	Low-grade: 23-1 High-grade: 65-340
Main motor power	KW	22
Clamping motor power	KW	3
X/Z axis rapid traverse rate	m/min	4/6
X/Z axis servo motor torque	Nm	15/22
X/Z axis repeat positioning accuracy	mm	0.012/0.016
X-axis maximum stroke	mm	450
Tailstock quill diameter	mm	φ140
Tailstock sleeve taper		MT6
Tailstock sleeve maximum stroke	mm	300
Cooling pump power	KW	0.125
Automatic lubrication interval time	min	12
Dimensions (L × W × H)	mm	5000×2100×1650
machine weight	kg	13000
