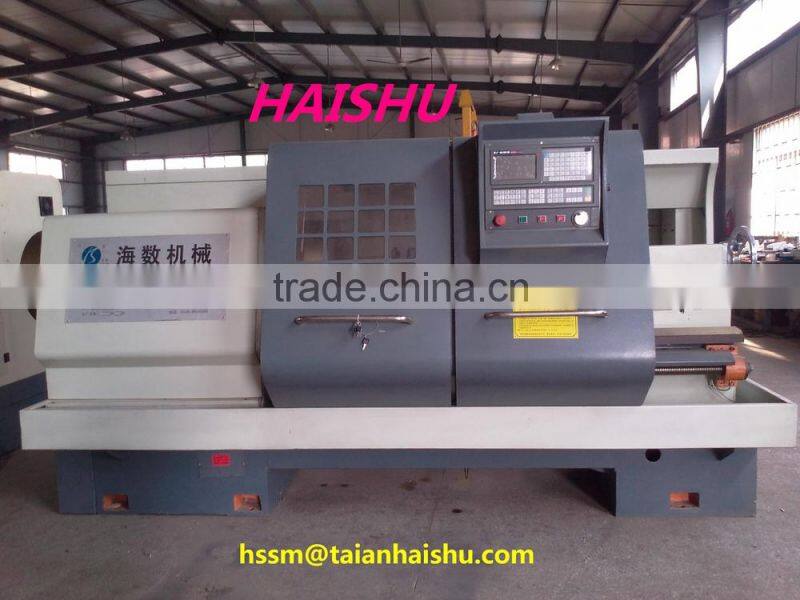

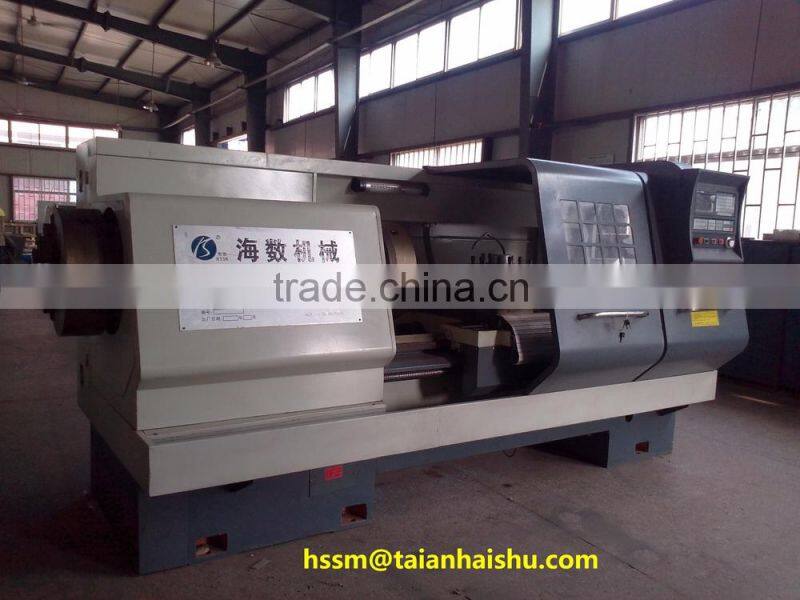

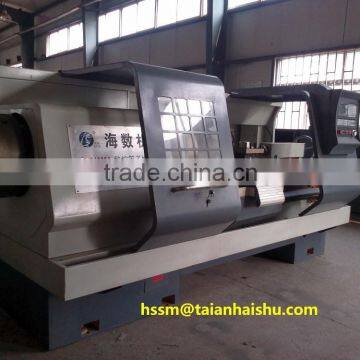

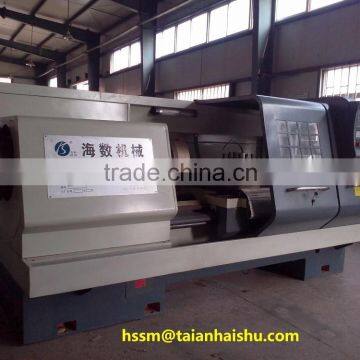

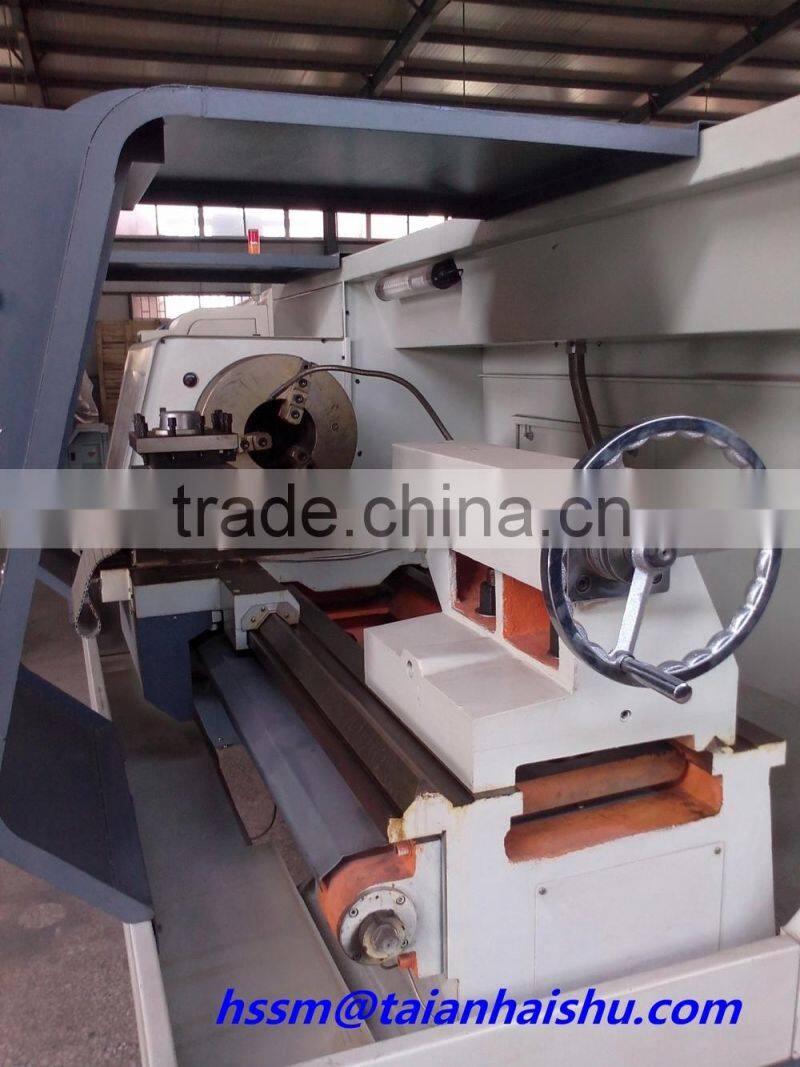

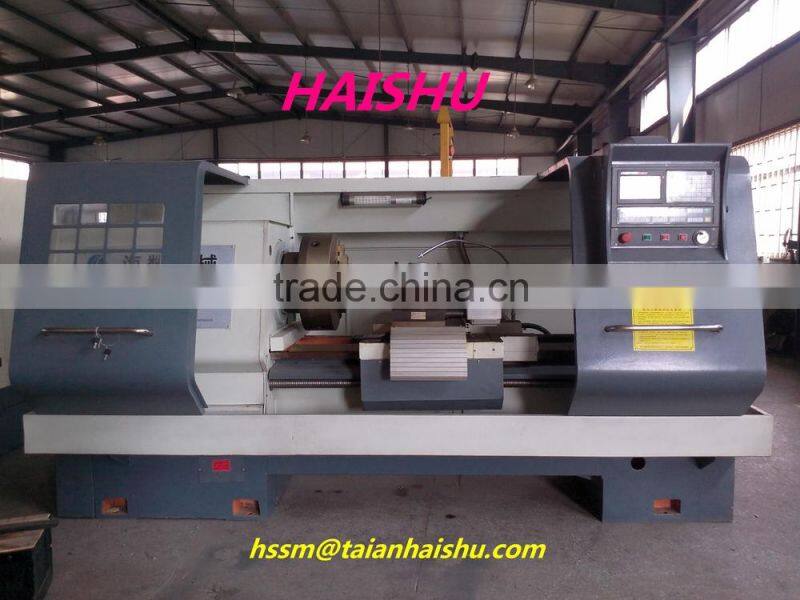

cnc pipe threading machine CKG1322A big spindle bore pipe threading and machines for sale
TECHNICAL PARAMETER
Project |
Unit |
Specification |
Lathe Maxswing diameter |
mm |
φ630 |
Maximum turning length |
mm |
1000 |
Maximum processingoutside diameter of pipe |
mm |
φ220 |
Spindle bore |
mm |
φ225 |
Number of spindle speeds |
|
Servo Promise |
X/ZServo motor torque |
N.m |
10/15 |
Chuck form |
|
Three-jaw chuck |
Chuck diameter |
mm |
φ500 |

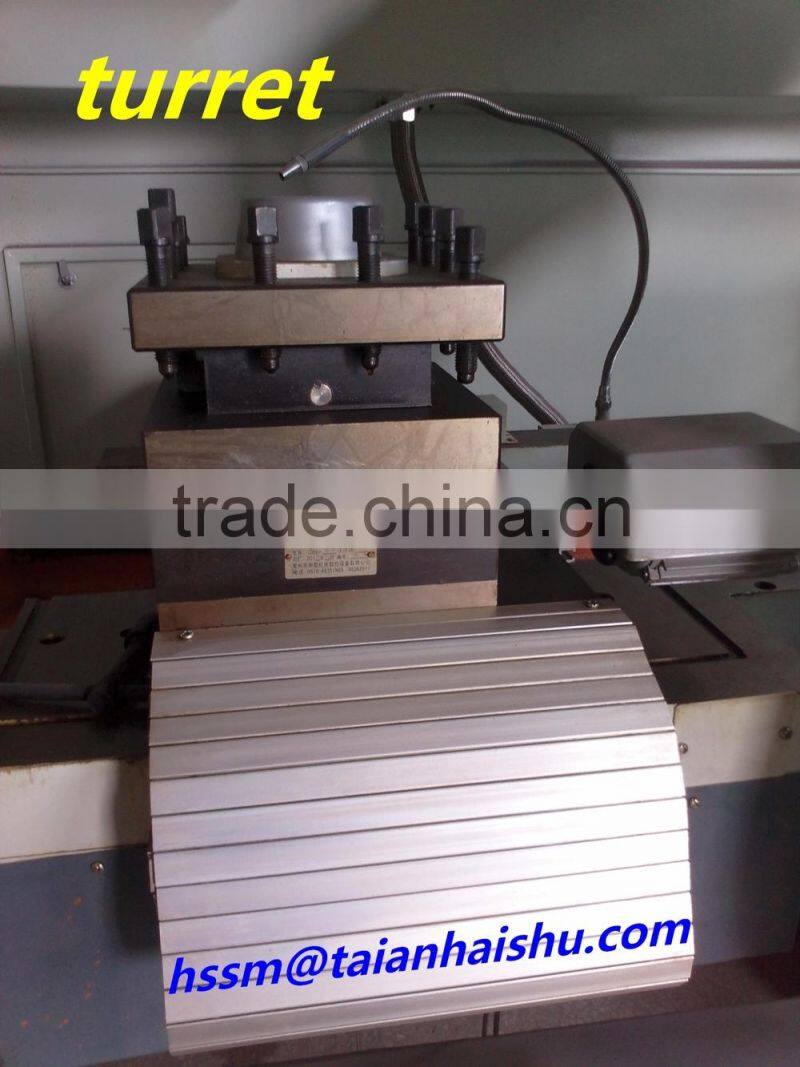

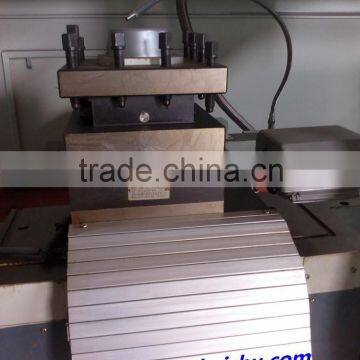

Turret form |
|
Four-station ,Vertical |
Tool section size |
mm |
32×32 |
X/ZRapid traverse |
m/min |
3/3 |

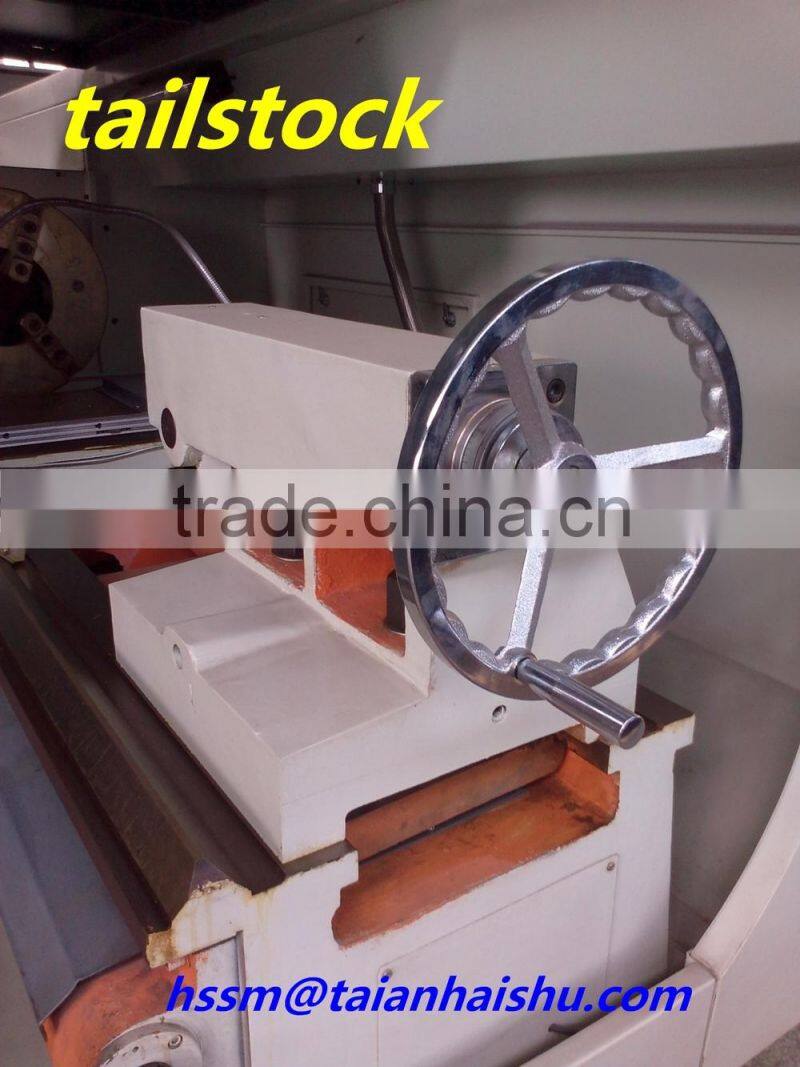

Tailstock quill diameter |
mm |
φ100 |
Tailstock quill stroke |
mm |
250 |
Tailstock sleeve taper |
|
MT5 |
Spindle center to theheightoftherail |
mm |
315 |
Main motor |
|
Servo motor 11KW 3000r/min |
Machine weight |
Kg |
5500 |
Machine outline size (L × W× H) |
mm |
3600×1750×1900 |

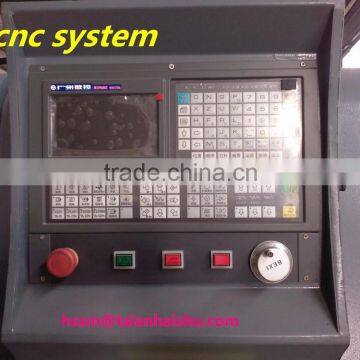

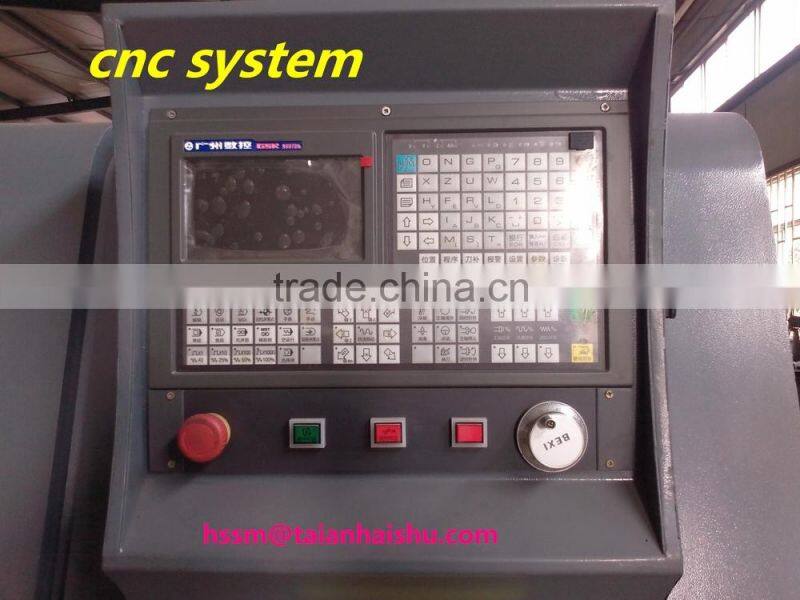

CNC system |
|
KND100Ti/GSK980TA(Optional) |
CONGIFURATIONS
Standard configuration |
Select configuration |
|
1, CNC system: GSK980. 2, Electric turret: vertical four station electric turret. 3,3 jaw manual chuck 4, Automatic lubrication system, Cooling system,Linghten system 5,Standard tools 6,Unit packing list |
1, CNC system: Beijing KND, Japan FANUC, Germany SIEMENS. 2, Electric turret: horizontal 8 station electric turret. 3, Cradle. |
|
Characters 1, We set up TRB (tapered rolling bearings) on this lathe to increase the rigidity of the spindle. 2, The spindle bore is very large and set up double chucks both front and back and you can choose electric chucks as you like. 3, The surface of the slide rail of the bed is treated by the super audio quench, which can be endurable and wear-resisting. The slide rail f saddle is treated by wear-resisting layer coated, to avoid the crawling. 4, There are two types of speed change: Manual and step less. 5, Set up self lubrication system, and easy to maintain. |
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine except of CNC system, which guarantee is three years
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is welcome.
If you are interested in our products, welcome to leave a message or send the inquiry to understand the details of machine.
