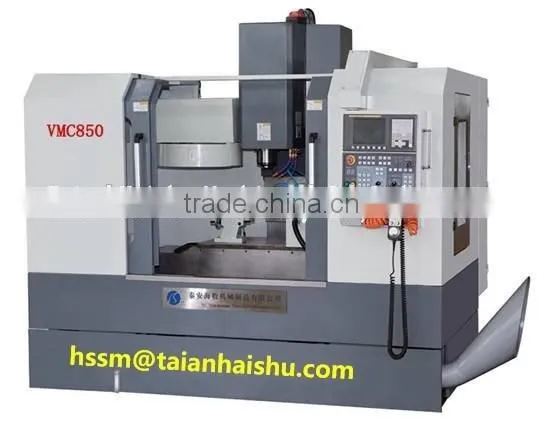

cnc machining center vmc-850 5-axis cnc machining center from machine manufacturers haishu
1. Specifications
Item |
Contents |
Units |
Specifications |
Table |
Table size |
mm |
1000×500 |
Number/Width/Distance of T-slot |
mm |
5-18-100 |
|
Max. load of table |
kg |
500 |
|
Travel |
Table travel(X,Y,Z) |
mm |
850×500×500 |
Distance from spindle nose to table surface |
mm |
150~650 |
|
Distance from spindle axis to column guideway |
mm |
560 |
|
Feed |
Rapid feed speed(X,Y,Z) |
m/min |
30/30/24 |
Feed speed(X,Y,Z) |
mm/min |
10~10000 |
|
Spindle |
Taper of spindle |
|
BT40 |
Spindle speed range |
r/min |
40~6000 |
|
Spindle motor power |
kw |
(Ac servo)7.5 |
|
Accuracy |
Positioning accuracy |
mm |
±0.015 |
Repeat positioning accuracy |
mm |
±0.0075 |
|
Tool |
Tool magazine capability |
|
16 |
Max.weight of tool |
kg |
8 |
|
Max.dimension of tool |
mm |
φ130×300 |
|
Overrall |
L×W×H |
mm |
2500×2600×2300 |
Weight |
Net weight |
kg |
4750 |
2. Main configuration
Standard:
CNC system: GSK25i servo system.
Spindle: Taiwan's high speed,precision spindle unit.
Tool magazine: Taiwan Turntable Style Tool Magazine,16tools
Ball screw: Taiwan's precision ball screw.
protection: full outer stainless steel inner defense and protection.
Optional: FANUC 0i mateMD or Siemens 828D.
3.machine’s working condition and others
Voltage:380V±10% 50Hz±1%
Temperature:-10 ~ 40°C humidity:≤80% air pressure:0.6Mpa
Machine lubricating oil: summer 32# winter 40#
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine except of CNC system, which guarantee is three years
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is welcome.
If you are interested in our products, welcome to leave a message or send the inquiry to understand the details of machine.
