Vertical Machining Center With CNC System: GSK25i Servo System.

Name: Vertical Machining Center With CNC System: GSK25i Servo System.
Brand: HAISHU
SKU: 128521229

US$ 19,500 - 22,000 MOQ: 1 Set

Key Specifications

CNC Machining or Not:

CNC Machining

Type:

Drilling, Etching / Chemical Machining, Milling, Rapid Prototyping, Wire EDM

Material Capabilities:

Aluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel Alloys, Other

Taian Haishu Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

CNC Machining or Not CNC Machining

Type Drilling, Etching / Chemical Machining, Milling, Rapid Prototyping, Wire EDM

Material Capabilities Aluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel Alloys, Other

Micro Machining or Not Not Micro Machining

Place of Origin Shandong, China

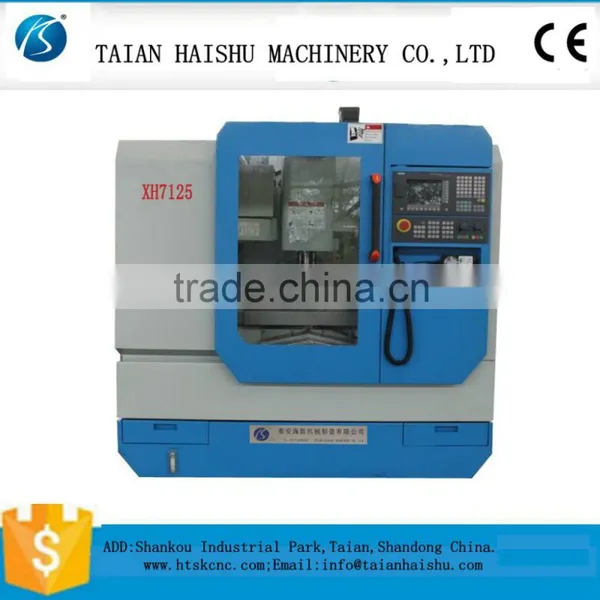

Model Number XH7125

Brand Name HAISHU

Vertical machining center

Basic Configurations

1) CNC system: GSK25i servo system.

2) Spindle: Taiwan's high speed,precision spindle unit.

3) Tool magazine: Taiwan's armless library.

4) Ball screw: Taiwan's precision ball screw.

5) protection: full outer stainless steel inner defense and protection.

Optionals:

1) KND-2000M,(HUAZHONG) HNC-21M,(JAPAN )FANUC 0i mateMD,828D

KND-2000M,HNC-21M,FANUC 0i mateMD or Siemens 828D.

2) CNC fourth axis.

3) Automatic chip removal system.

Specifications

Item	Unit	XH7125	XH7132(A)	VMC800
Table travel(X,Y,Z)	mm	400×250×400	620×350×500	800×460×500
Table size	mm	600×250	920×320	800×460
Number/Width/Distance of T-slot	mm	3-14-75	3-14-85	3-18-150
Distance from spindle nose to table surface	mm	60~460	100~600	150~650
Distance from spindle axis to column guideway	mm	325	395	560
Taper of spindle		BT30	BT40	BT40
Spindle speed range	r/min	60~6000	60~6000	40~6000
Spindle motor power	kw	(AC servo)3.7	servo)3.7(5.5)	(AC servo)7.5
Rapid traverse speed(X,Y,Z)	m/min	6	18	30/30/24
Cutting feed speed(X,Y,Z)	mm/min	2.5~3000	2.5~3000	2~10000
Tool magazine capability	qty	10	16	16
Max.dimension of tool	mm	φ92	φ120×200	φ130×300
Max.weight of tool	kg	5	8	8
Positioning accuracy	mm	±0.015	±0.015	±0.015
Repeat positioning accuracy	mm	±0.075	±0.0075	±0.0075
L×W×H	mm	1650×1600×2000	2020×1970×2160	2450×2200×2300
Net weight	kg	1530	2750	4650
