Cnc Milling Machine XK7132 Milling Machine and Vertical Milling Machine

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
Place of Origin	Shandong, China	Brand Name	Haishu
Model Number	XK7132	Voltage	380v 3 phase
Power(W)	3.7kw	Dimension(LWH)	2500X2260X2300(mm)
Weight	2540kgs	Certification	ISO9001:2008 CE
Warranty	one year	After-sales Service Provided	Engineers available to service machinery overseas

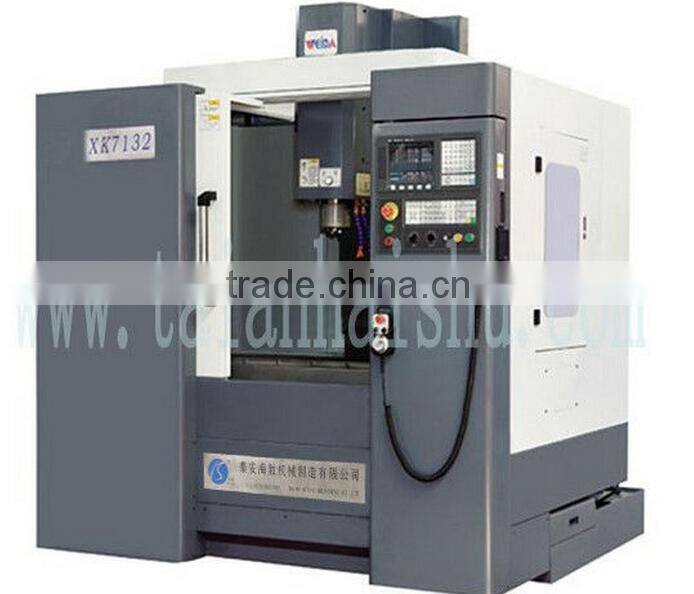

cnc milling machine XK7132 milling machine and vertical milling machine

Specification	UNIT	XK7132
Table size	MM	920*320
Spindle hole taper		BT40
Travel range	MM	620350500
NO./width/distance of T-slot	MM	3-14-85
Max.load of table	KG	500
Distance from spindle nose to table surface	MM	100-600
Distance from spindle axis to vertical guideway	MM	395
Rapid feed speed	M/MIN	18
Feed speed	MM/MIN	2.5-3000
Spindle speed	R/MIN	40-6000
Spindle motor power	KW	3.7

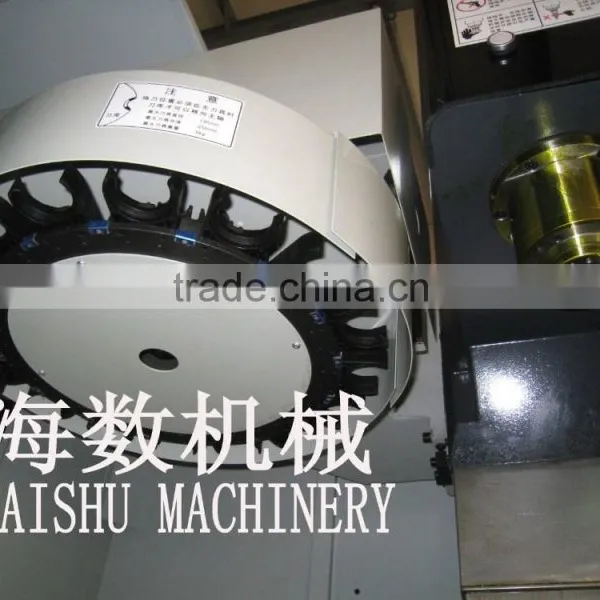

Tool magazine capacity	piece	16
Max tool weight	kg	8
Max tool size	mm	Φ120*200
Positioning accuracy	MM	±0.015
Repeat position accuracy	MM	±0.0075
Overall dimension(L×W×H)	MM	2500×2260×2300
Net weight	KG	2540
Controller		GSK25I

GUARANTEE AND AFTER-SALE SERVICES:

1.one year guarantee for whole machine except of CNC system, which guarantee is three years

2.24-hours technical support by E-mail or telephone

3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD

4.Provide extra accessories for the machine

5.Also provide service of make program according to your drawings

6.Customized or special design is welcome.
