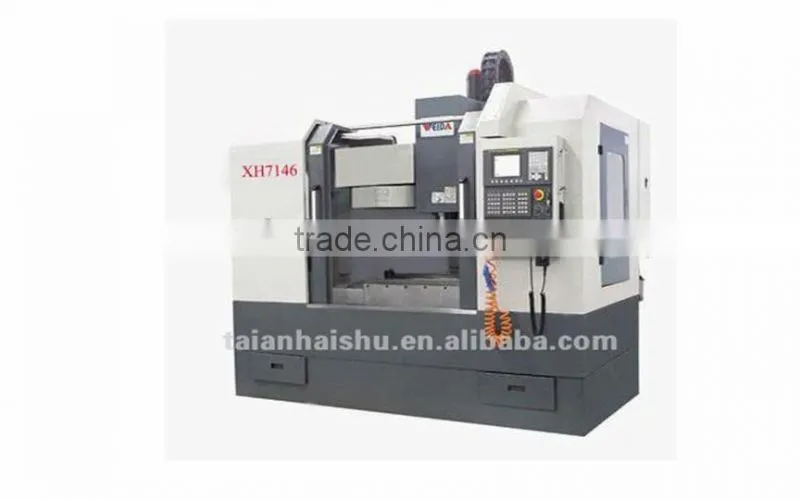

5-axis Cnc Vertical Machining Center XH7146 Cnc Machining Center and Vmc Machine Manufacturer Taian Haishu
- QINGDAO
- T/T Money Gram Credit Card
You May Like
-
High Quality and Low Price VM850 Cnc Milling Machine, Machine Center With CE Certification
-
High Quality and Low Price ATC VM850 Cnc Milling Machine Center With High Presison
-
Hobby Milling Machine XK7132 Cnc Milling Machine With Good Price From Taian Haishu
-
Hobby Milling Machine XK7125 Cnc Milling Machine With Good Price From Taian Haishu
-
Can be 5 Axis High Quality and Low Price OEM Service VM850 Metal Plate CNC Milling Machine
-
Heavy-duty Vertical Lathe for Sale HMC800 Cnc Machining Center and 5-axis Machining Center With Good Price
Product Details
| Condition | New | Type | Vertical | |
| Place of Origin | Shandong, China | Brand Name | HAISHU | |
| Model Number | XH7146 | Voltage | 380v 50hz | |
| Power(W) | 7.5kw | Dimension(L*W*H) | 2500*2260*2300 mm | |
| Weight | 2540kg | Certification | ISO9001:2008 CE | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

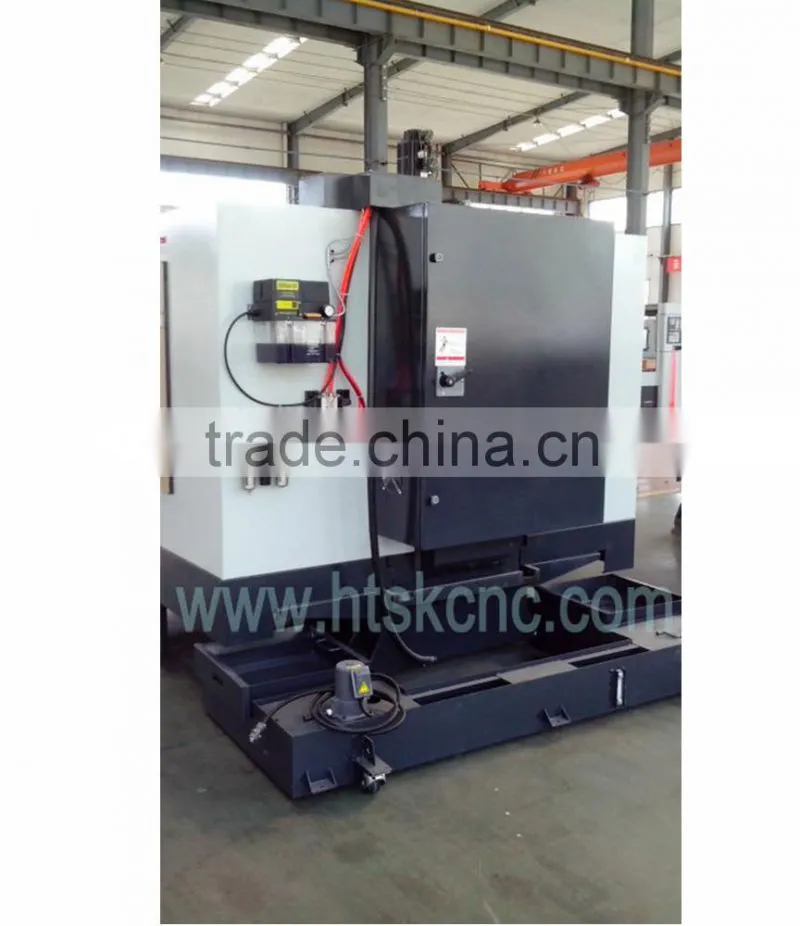

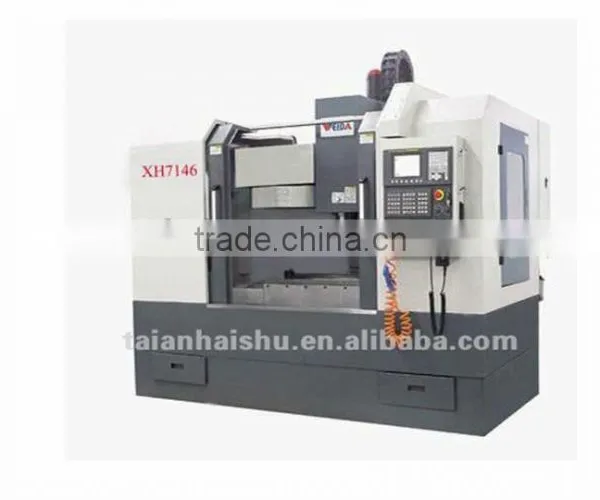

5-axis cnc vertical machining center XH7146 cnc machining center and vmc machine manufacturer Taian Haishu
Specifications
XH7146 mini cnc center 1.CE Certificate c vmc with Competitive price 3.Schneider breaker 4.high precision and quality
SPECIFICATION | UNIT | XH7146 |
TABLE SIZE | MM | 800×460 |
SPINDLE HOLE TAPER |
| BT40 |
TRAVEL RANGE | MM | 800×460×500 |
NO./WIDTH/DISTANCE OF T-SLOT | MM | 3-18-150 |
MAX.LOAD OF TABLE | KG | 500 |
DISTANCE FROM SPINDLE NOSE TO TABLE SURFACE | MM | 150-650 |
DISTANCE FROM SPINDLE AXIS TO VERTICAL GUIDEWAY | MM | 510 |
RAPID FEED SPEED | M/MIN | 18 |
FEED SPEED | MM/MIN | 2-4000 |
SPINDLE SPEED | R/MIN | 40-8000 |
SPINDLE MOTOR POWER | KW | (AC SERVO)7.5 |
Tool magazine capacity | piece | 16 |
Max tool weight | kg | 8 |
Max tool size | mm | 130*250 |
POSITIONING ACCURACY | MM | ±0.02 |
REPEAT POSITIONING ACCURACY | MM | ±0.01 |
OVERALL DIMENSION(L×W×H) | MM | 2500×2260×2300 |
NET WEIGHT | KG | 4550 |
Controller | KND |
GSK/KND controller system
16 tool turret
spindle motor power 7.5kw

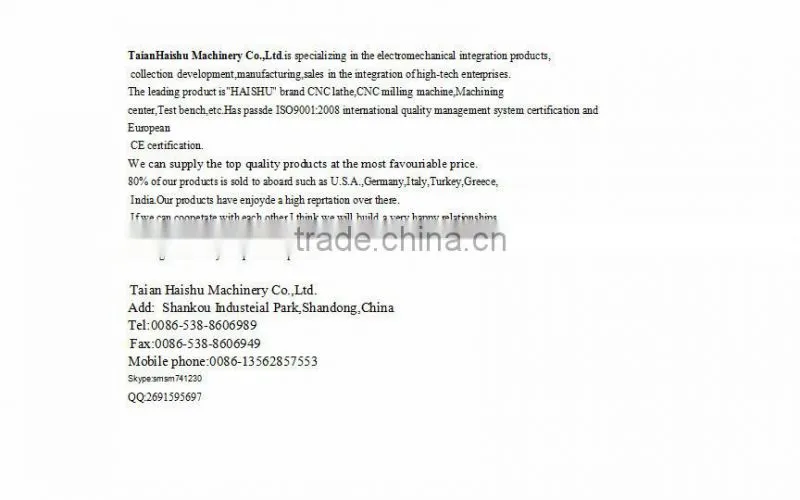

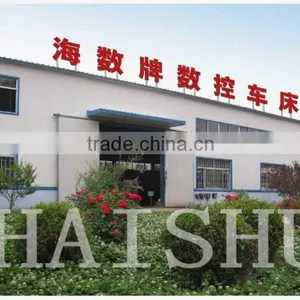

About company
With our superior quality of products and services, we have created a distinct niche for ourselves in domestic as well as international market. Today, we enjoy business with distinguished customers from different locations in and around china . We follow strong business ethics and work for long standing association with our valued customers.
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine except of CNC system, which guarantee is three years
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is welcome.
If you are interested in our products, welcome to leave a message or send the inquiry to understand the details of machine.
