High Quality and Low Price XH7132 China High Speed Vertical Machining Center From Haishu

Name: High Quality and Low Price XH7132 China High Speed Vertical Machining Center From Haishu
Brand: Haishu
Availability: InStock

FOB Price

US$ 20,000 - 35,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Turning Center
CNC or Not	CNC	Automatic Grade	Automatic
Place of Origin	Shandong, China	Brand Name	Haishu
Model Number	XH7132A	Voltage	380v
Power(W)	3.7kw	Dimension(LWH)	202019702160
Weight	2750kg	Certification	CE
After-sales Service Provided	Overseas service center available

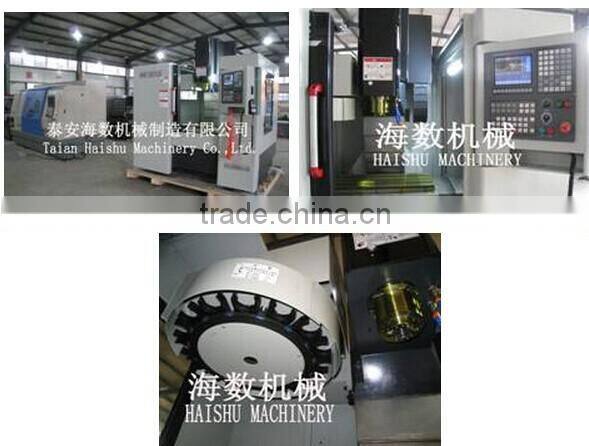

XH7132 China high speed vertical machining center from haishu
1. high precision,good quality
2.Spindle: Taiwan's high speed

High quality and low price XH7132 China high speed vertical machining center from haishu

Specifications

Item	Unit	XH7125	XH7132(A)	VMC800
Table travel(X,Y,Z)	mm	400×250×400	620×350×500	800×460×500
Table size	mm	600×250	920×320	800×460
Number/Width/Distance of T-slot	mm	3-14-75	3-14-85	3-18-150
Distance from spindle nose to table surface	mm	60~460	100~600	150~650
Distance from spindle axis to column guideway	mm	325	395	560
Taper of spindle		BT30	BT40	BT40
Spindle speed range	r/min	60~6000	60~6000	40~6000
Spindle motor power	kw	3.7 (AC servo)3.7	3.7(5.5) (AC servo)3.7(5.5)	7.5 (AC servo)7.5
Rapid traverse speed(X,Y,Z)	m/min	6	18	30/30/24
Cutting feed speed(X,Y,Z)	mm/min	2.5~3000	2.5~3000	2~10000
Tool magazinpability	qty	10	16	16
Max.dimension of tool	mm	φ92	φ120×200	φ130×300
Max.weight of tool	kg	5	8	8
Positioning accuracy	mm	±0.015	±0.015	±0.015
Repeat positioning accuracy	mm	±0.075	±0.0075	±0.0075
L×W×H	mm	1650×1600×2000	2020×1970×2160	2450×2200×2300
Net weight	kg	1530	2750	4650

Main configuration

Standard:

1,CNC system: GSK25i servo system.

2Spindle: Taiwan's high speed,precision spindle unit.

3,Tool magazine: Taiwan's armless library.

4,Ball screw: Taiwan's precision ball screw.

5,protection: full outer stainless steel inner defense and protection.

Optional:

KND-2000M,HNC-21M,FANUC 0i mateMD or Siemens 828D.

CNC fourth axis.

Automatic chip removal system.

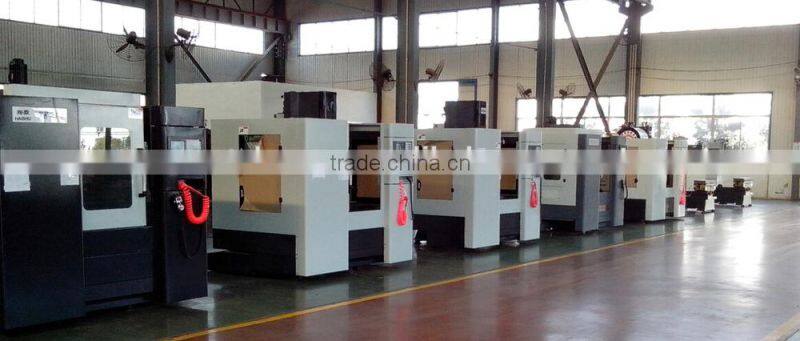

workshop :
