5 Axis Cnc Vertical Machining Center XH7132 Cnc Machine Price

  5 axis cnc vertical machining center XH7132 cnc machine price

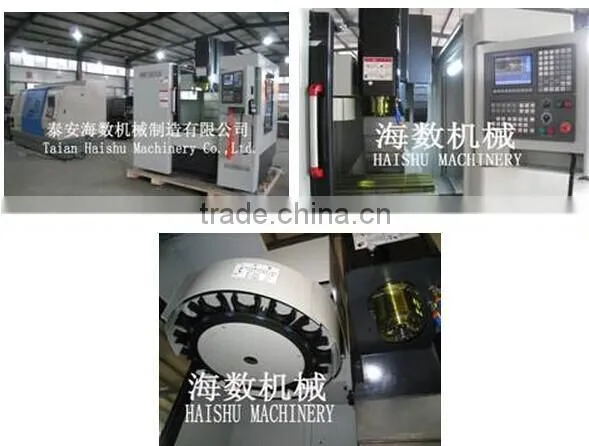

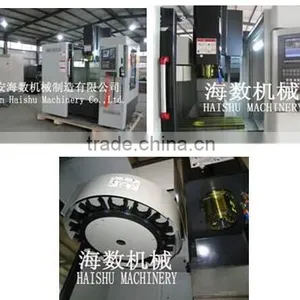

1.CNC system:GSK25i servo system.

2.Spindle:taiwan high speed,precision spindle unit.

3.Tool magazine:taiwan   armless library.

4.Ball screw:taiwan precision ball screw.

5.Protection:stainless steel internal protection and full outer protective

 .

Optional:

1.CNC system: FANUC 0i mate-MD,Siemens 828D or HNC-22M,KND-2000M

2.Disc-type tool magazine capability 16 tools

3.CNC fourth axis

4.Automatic chip removal system

Specifications:                                                                                                    Specifications

     Items                                                               Unit                      XH7132                     VMC800                VMC850

Table trave(X,Y,Z)                                                mm                     620x350x500             800x460x500          850x500x500

Table size                                                             mm                         920x320                      800x460                 1000x500

Number/Width/Distance lf T-slot                           mm                        3-14-85                         3-18-150                5-18-100

Max.load lf table                                                    kg                               400                             500                         500

Distance form opindle nose to table surface         mm                          100~600                   250~650                 150~650

Distance form opindle axis to column guideway   mm                            395                             560                           560

Rapid feed speed                                                  mm/min                 18/18/18                     30/30/24                    30/30/24

Feed speed                                                           mm/min                  2.5~3000                  2~10000                    10~10000

Taper of spindle                                                                                     BT40                           BT40                          BT40

Spindle speed range                                               rrpm                     60~6000                      40~6000                    40~6000

Spindle motor power(servo)                                     kw                             3.7                              7.5                            7.5

Tool magazin capability                                            qty                           16                                 16                              16

Max.weight of tool                                                      kg                             8                                  8                                8

Max.dimension of tool                                                mm                      120x200                      130x300                     130x300

Positioning accutacy                                                mm                          ±0.015                          ±0.015                       ±0.015

Repeat positioning zccuracy                                     mm                         0.0075                         0.0075                      0.0075

Min.time of toll change                                              sec                              3                                 3                                2.5

Overall dimension                                                      mm                   2020x1970x2160       2450x2200x2300          2500x2600x2300

Machine weight                                                          kg                           2750                           4650                             4750

GUARANTEE AND AFTER-SALE SERVICES:

1.one year guarantee for whole machine except of CNC system, which guarantee is three years

2.24-hours technical support by E-mail or telephone

3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD

4.Provide extra accessories for the machine

5.Also provide service of make program according to your drawings

6.Customized or special design is OK.

If you are interested in our products, welcome to leave a message or send the inquiry to understand the details of machine.
